CHAPTER 3A ENGINE 260/ 300 / 400 cc ATV SERVICE MANUAL09.0
CHAPTER 3 ENGINE PAGE. 3A- 65
Order Job name/Part name Q’ty Remarks
8
9
10
Impeller shaft
O-ring
O-ring
1
1
1
Refer to “WATER PUMPINSTALLATION”
section.
Reverse the removal procedure for installation.
NOTE:
zIt is not necessary to disassemble the water
pump, unless there is an abnormality such as
excessive change in coolant temperature and/
or level, discoloration of coolant, or milky
transmission oil.
zIf necessary, replace water pump as an
assembly.

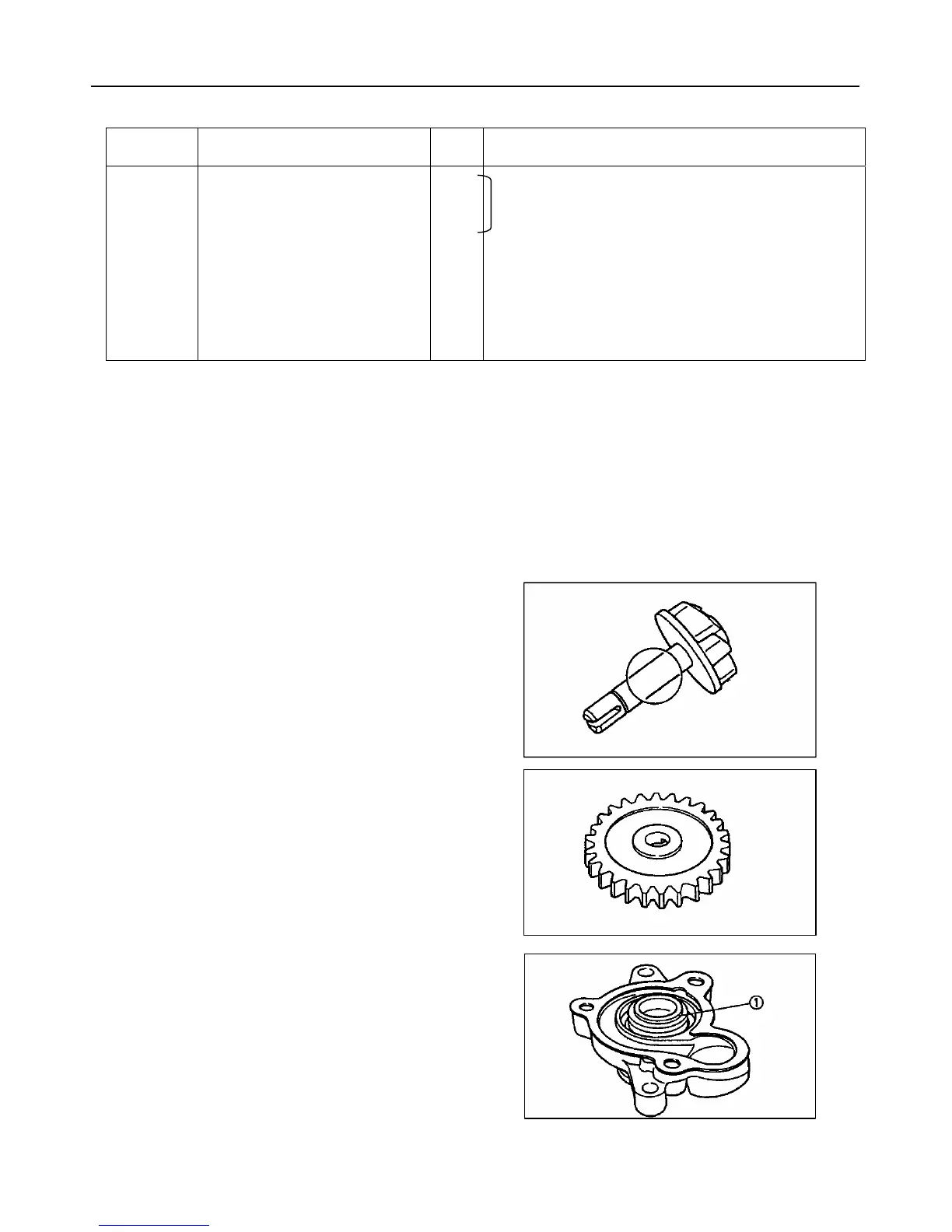

INSPECTION
1. Inspect:
zImpeller shaft
Wear/damage → Replace.
Fur deposits → Clean.
2. Inspect:
zImpeller shaft gear
Wear/damage → Replace.
3. Inspect:
zMechanical seal c
Damage/worn/wear → Replace.
WATER PUMP INSTALLATION
