CHAPTER 3A ENGINE 260/ 300 / 400 cc ATV SERVICE MANUAL09.0
CHAPTER 3 ENGINE PAGE. 3A- 66

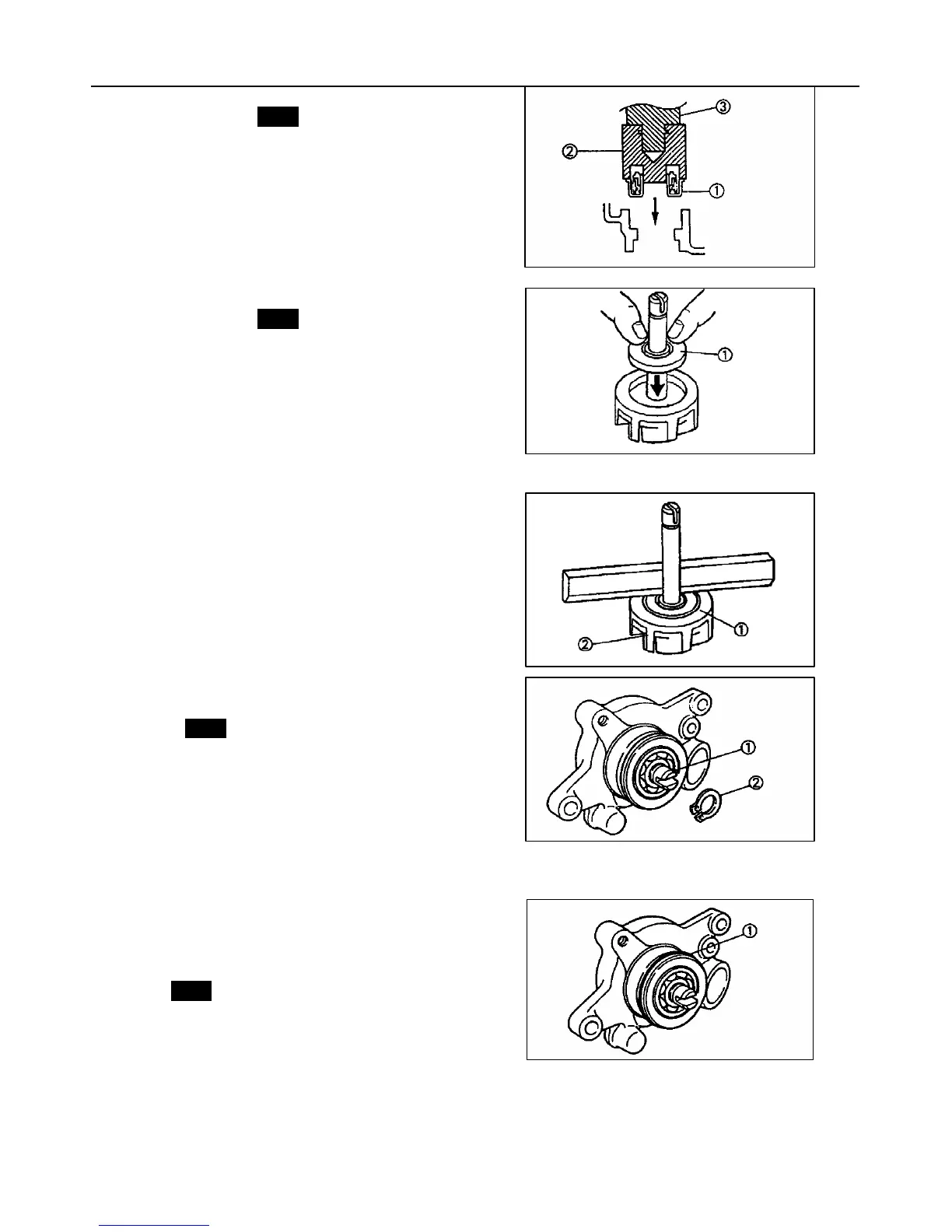

1. Install:
zMechanical seal c NEW
Installation steps:
zApply the bond to the outside of the
mechanical seal.
zInstall the mechanical seal by using the
mechanical seal installer d and middle shaft
bearing driver e
2. Install:
zMechanical seal c NEW
Apply coolant to the outside of the mechanical
seal before installing.
NOTE:
Do not smear any oils or grease on the ring side
of the mechanical seal.
3. Inspect:
zMechanical sea , slip ring side c
Inspect the slip ring side of the mechanical seal
and the impeller d for level installation.
Incorrect level → Reinstall.
4. Install:
zImpeller shaftc
zCirc lip d NEW
Installation steps:
zApply a small amount of grease to the impeller
shaft tip.
zInstall the impeller shaft while turning it. Use
care so that the oil seal is not damaged or the
spring does not slip off its position.
NOTE:
After installing the impeller shaft, check it for
smooth rotation.
5.Install:
zO-ringcNEW
6. Install:
zWater pump housing
To Next Page
