CHAPTER 3A ENGINE 260/ 300 / 400 cc ATV SERVICE MANUAL09.0
CHAPTER 3 ENGINE PAGE. 3A- 48

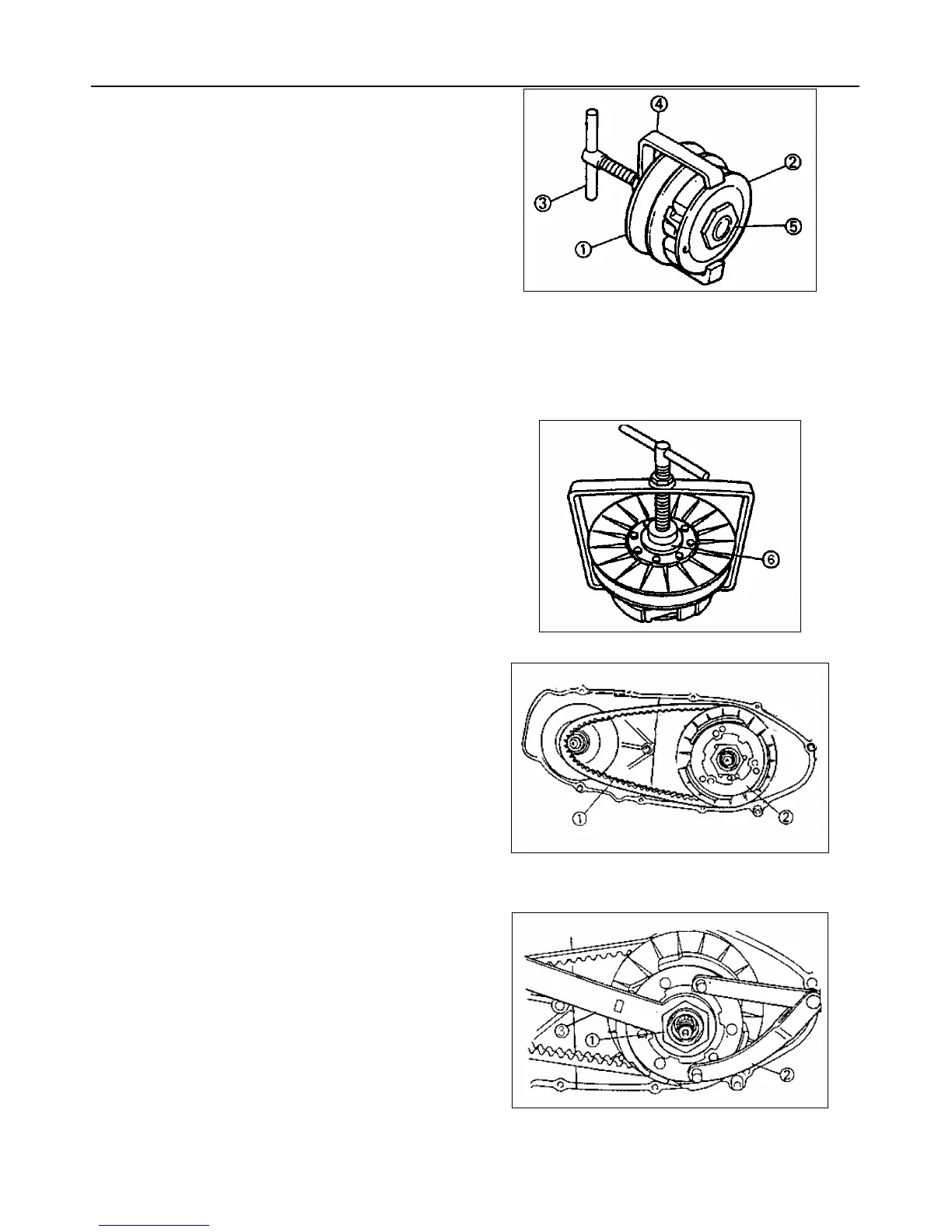

5. Install:
zSecondary sheave complete c
zCompression spring
zClutch carrier d
NOTE:
Temporarily tighten the nut gwhile attaching the
clutch spring holder e and clutch spring holder
arm f and compress the spring.
CAUTION:
Use the spacer h (30mm, thickness: 2-3mm).
6. Install:
zV-belt c
zClutch assembly d
NOTE:
Install the V-bet with clutch assembly to the
primary sheave side.
CAUTION:
Never smear grease to the V-belt, secondary
sheave and clutch.
7. Install:
zNut c (clutch carrier)
NOTE:
Tighten the nut (clutch carrier), using the locknut
wrench e while holding the clutch carrier with
the rotor holder d
To Next Page
