CHAPTER 3A ENGINE 260/ 300 / 400 cc ATV SERVICE MANUAL09.0
CHAPTER 3 ENGINE PAGE. 3A- 49

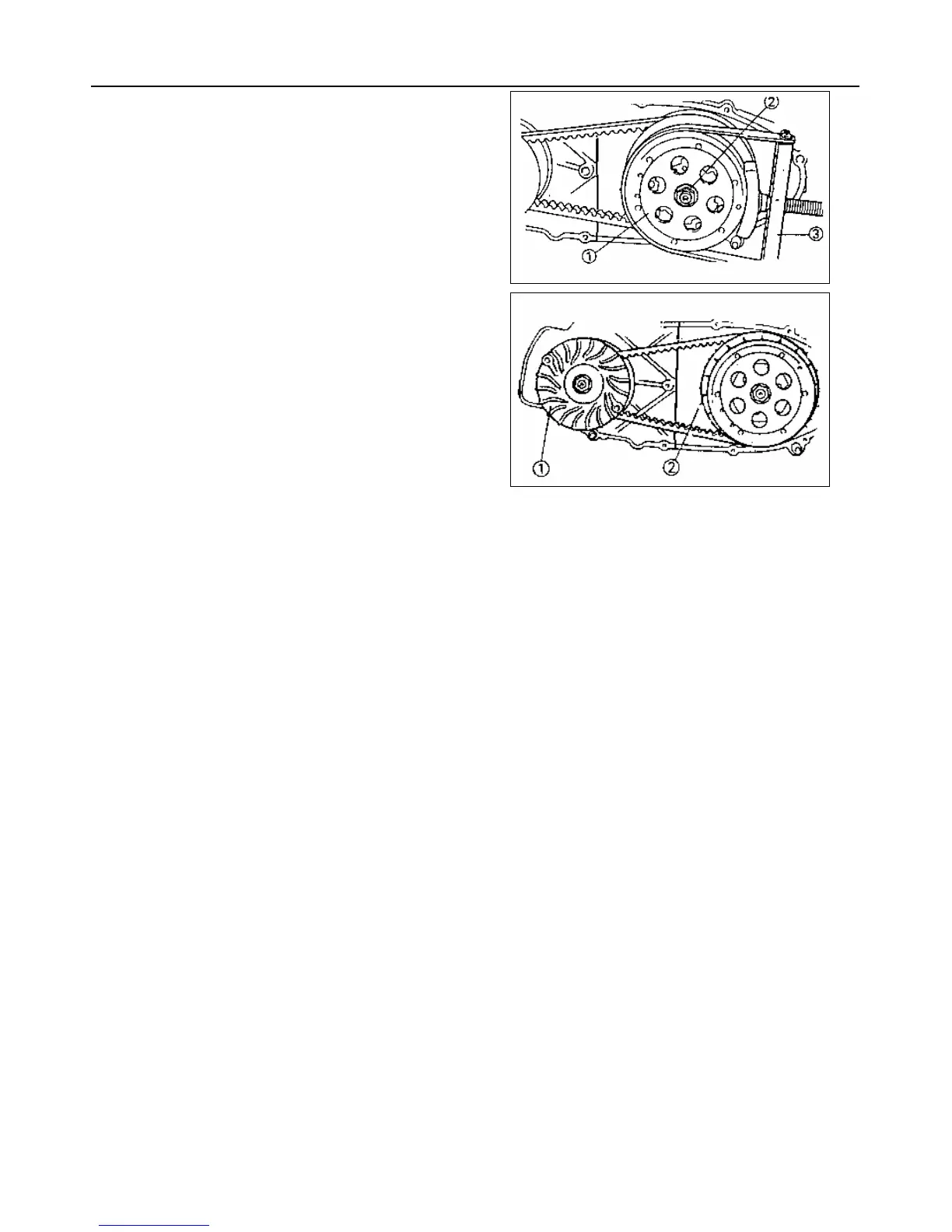

8. Install:
zClutch housing c
zNut (clutch housing) d
NOTE:
Tighten the nut (clutch housing),using the
sheave holder e).
9. Set:
zV- belt c
NOTE:
Move the V-belt to minimum diameter of the
primary sheave c, maximum diameter of the
secondary sheave d and make the V-belt tense.
