AC-based ACL by using the MAC Based ACL page and the MAC Based ACE
page.
•
IPv4-Based ACL by using the IPv4 Based ACL page and the IPv4 Based ACE page.
•
IPv6-Based ACL by using the IPv6 Based ACL page and the IPv6 Based ACE page.
2. Associate the ACL with interfaces by using the ACL Binding page.
Modifying ACLs Workflow
An ACL can only be modified if it is not in use.
To unbind an ACL in order to modify it:
1. If the ACL has been associated with an interface, unbind it from the interface using the
ACL Binding page.
2. If the ACL is part of the class map and not bound to an interface, then it can be modified.
3. If the ACL is part of a class map contained in a policy bound to an interface, you must
pe
rform the chain of unbinding:
•
Unbind the policy containing the class map from the interface by using Poli
cy
Binding.
•
Delete the class map containing the ACL from the policy using the Configuring a
Policy (Edit).
•
Delete the class map containing the ACL, by using Defining Class Mapping page.
•
Only then can the ACL be modified, as described in this section.

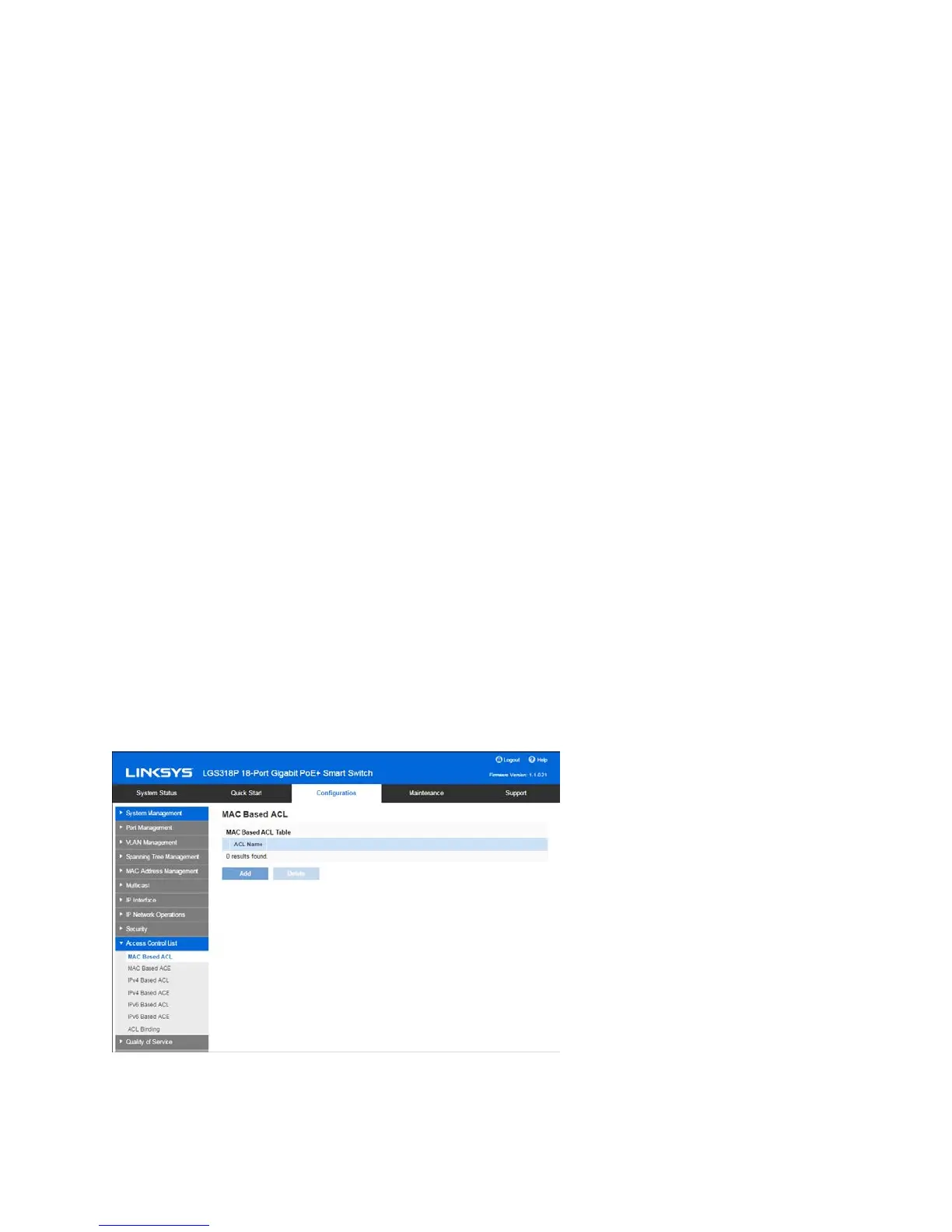

MAC-Based ACL
M
AC-based ACLs are used to filter traffic based on Layer 2 fields. MAC-based ACLs check all
frames for a match.

Linksys LGS326P Specifications

General

Switch type	Managed
Switch layer	-
Quality of Service (QoS) support	Yes
Combo SFP ports quantity	2
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	26
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24
10G support	No
Number of VLANs	128
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Tagged VLAN
Copper ethernet cabling technology	1000BASE-T, 100BASE-T, 10BASE-T
DHCP features	DHCP client
Security algorithms	802.1x RADIUS
Throughput	38.69 Mpps
Jumbo frames	9000
MAC address table	8000 entries
Product color	Black, Blue
LED indicators	Activity, Link, PoE, System
Number of fans	2 fan(s)
Memory type	DRAM
Internal memory	128 MB
Input current	3.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	28.58 W
Total Power over Ethernet (PoE) budget	192 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	200 mm
Width	440 mm
Height	44 mm
Weight	3096 g
