Linksys LGS326P

188
•
I
ngress Rate Control—Select to enable the ingress rate limit, which is defined in
the field below.
•
Ingress Rate Limit—Enter the maximum amount of bandwidth allowed on th
e
i
nterface.
•
Ingress Committed Burst Size—Enter the maximum burst size of data for th
e
i
ngress interface in bytes of data. This amount can be sent even if it temporarily
increases the bandwidth beyond the allowed limit. This field is only available if the
interface is a port.
Note—The above Ingress Rate Limit fields do not appear when the interface typ
e
is LAG.
•
Egress Shaping Control—Select to enable egress shaping on the interface.
•
Egress Committed Information Rate—Enter the maximum bandwidth for th
e
egress interface.
•
Egress Committed Burst Size (CBS)—Enter the maximum burst size of data for the
egress interface in bytes of data. This amount can be sent even if it temporarily
increases the bandwidth beyond the allowed limit.
5. Click Apply. The bandwidth settings are written to the Running Configuration file.

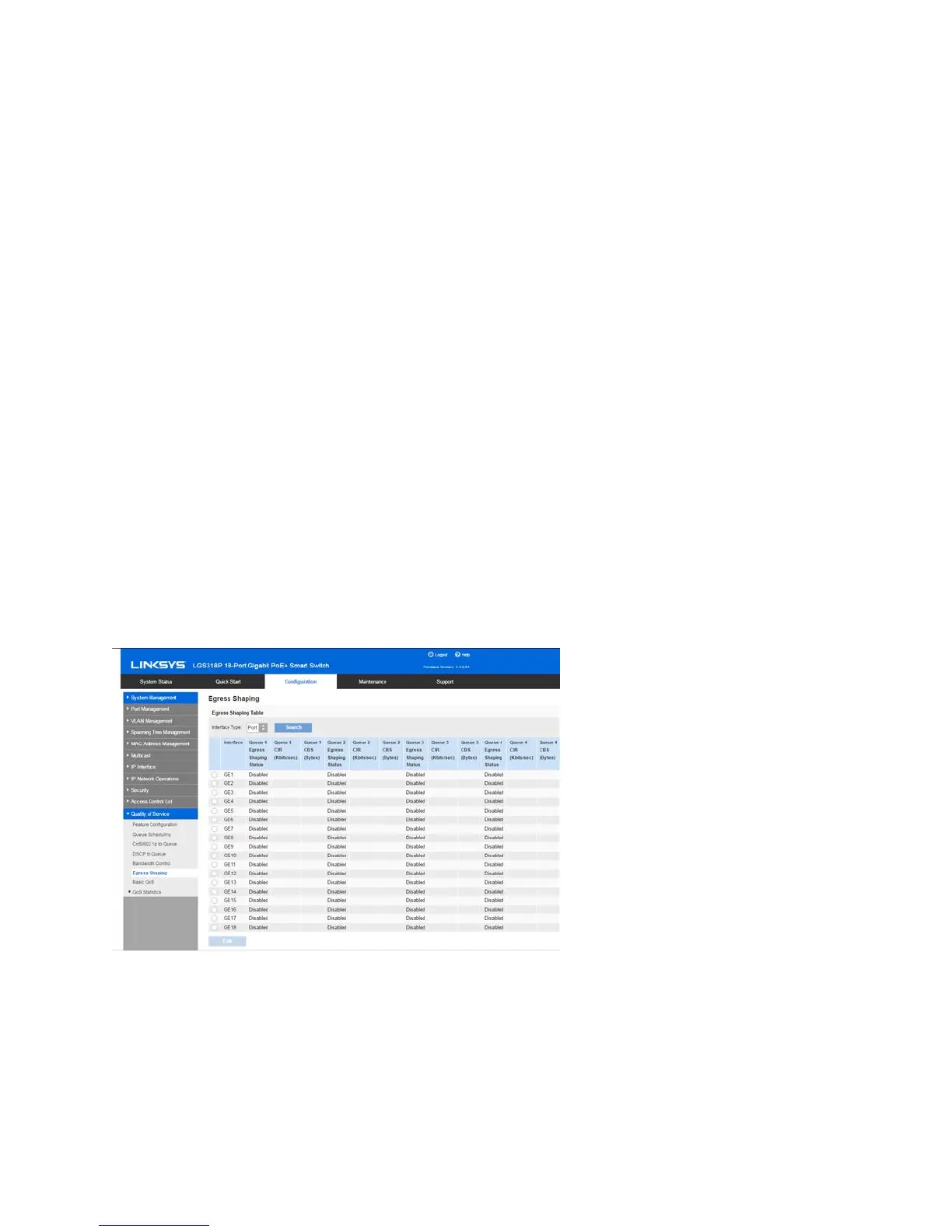

Egress Shaping
In addition to limiting transmission rate per port, which is done in the Bandwidth page, the device
can limit the transmission rate of selected egressing frames on a per-queue basis. Egress rate
limiting is performed by shaping the output load.
The device limits all frames except for management frames. Any frames that are not limited are
ignored in the rate calculations, meaning that their size is not included in the limit total.
Per-queue Egress rate shaping can be disabled.
