IP Group Address FDB

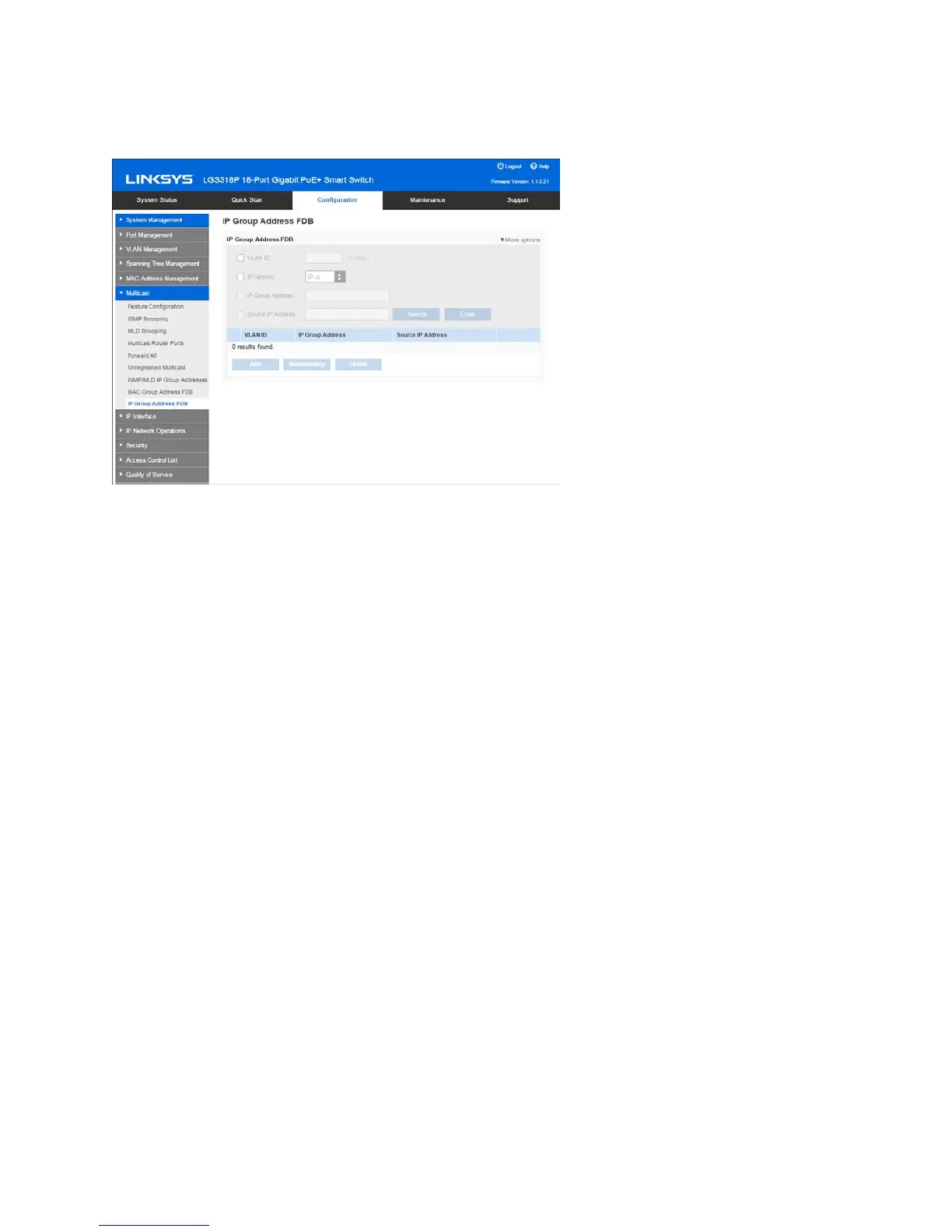

The IP Group Address FDB page enables querying and adding IP Multicast groups contained in the
IP Multicast Groups Forwarding Data Base.
To define and view IP Multicast groups:
1.
Click Configuration > Multicast > IP Group Address FDB.
The page contains all of the IP Multicast group addresses learned by snooping.
2.
Enter the parameters required for filtering.
VLAN IDEnter the VLAN ID of the group to be displayed.
IP Group AddressDefine the IP address of the Multicast group to be displayed.
This is only relevant when the Forwarding Mode is (S, G).
Source IP AddressDefine the source IP address of the sending device. If mode is
(S, G), enter the sender S. This together with the IP group address is the Multicast
group ID (S,G) to be displayed. If mode is (*, G), enter an * to indicate that the
Multicast group is only defined by destination.
3.
Click Search. The results are displayed in the lower block..
4.
Click Add to add a static IP Multicast group address.
5.
Enter the parameters.
VLAN IDDefines the VLAN ID of the group to be added.
IP Group AddressDefine the IP address of the new Multicast group. Group
Address Settings
Source Specific IP MulticastSelect to indicate that the entry contains a specific
source, and adds the address in the IP Source Address field. If not, the entry is
added as a (*,G) entry, an IP group address from any IP source.
Source IP AddressEnter the source address to be included.
