Linksys LGS326P User Manual

201
Diagnostics

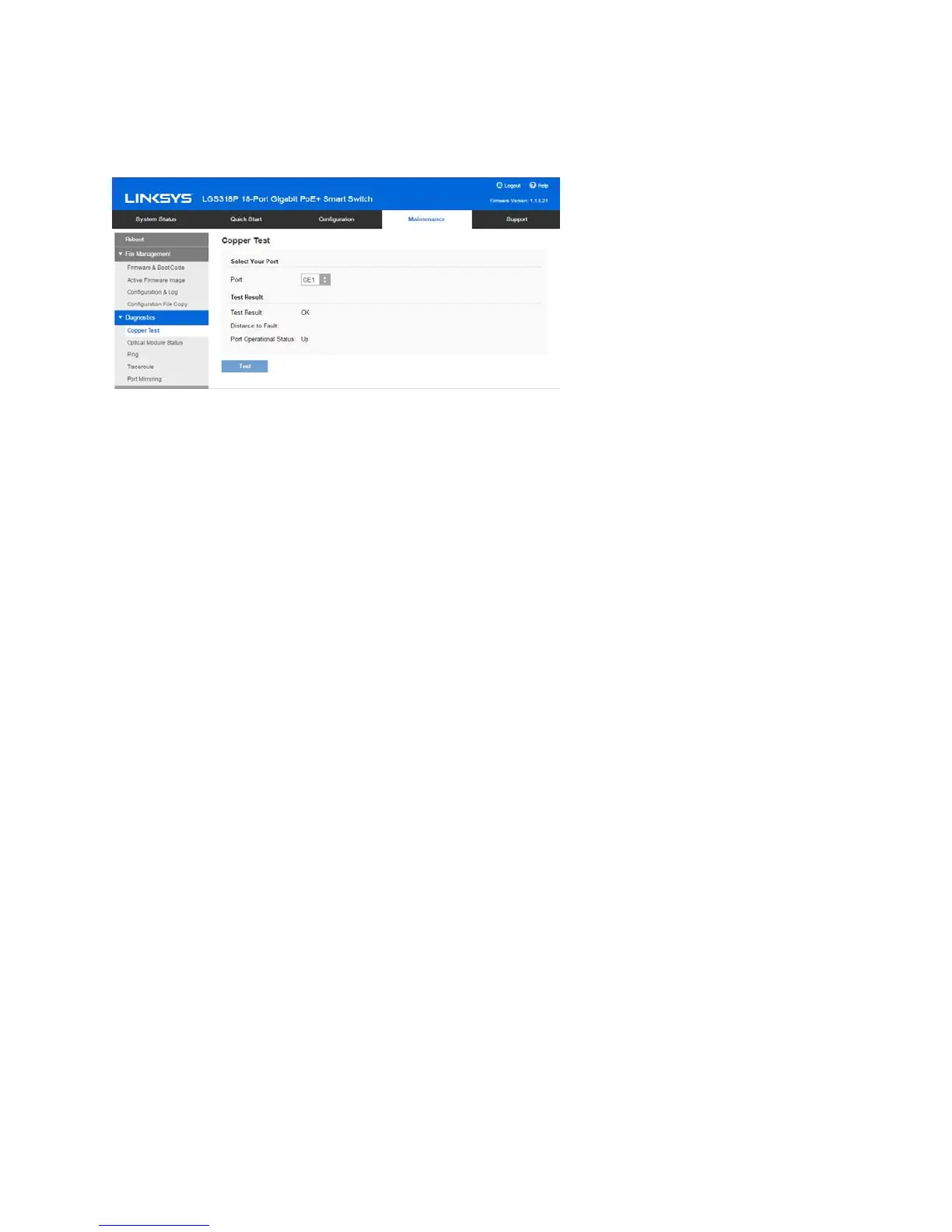

Copper Test
The Copper Test page displays the results of integrated cable tests performed on copper cables
by the Virtual Cable Tester (VCT).
VCT performs two types of tests:
•
Time Domain Reflectometry (TDR) technology tests the quality and characteristics of a
copper cable attached to a port. Cables of up to 140 meters long can be tested. These
r
esults are displayed in the Test Results block of the Copper Test page.
•
DSP-based tests are performed on active GE links to measure cable length. These results
are displayed in the Advanced Information block of the Copper Test page.
Preconditions to Running the Copper Port Test
Before running the test:
•
(Mandatory) Disable Short Reach mode (go to Port Management > Green Ethernet >
Properties)
•
(Optional) Disable EEE (go to Configuration > Port Management > Green Ethernet >
Properties page)
Use a CAT5 data cable when testing cables using (VCT).
Accuracy of the test results can have an error range of +/10 for Advanced Testing and +/2 for
basic testing.
CAUTION—When a port is tested, it is set to the Down state and communications are interrupted.
After the test, the port returns to the Up state. It is not recommended that you run the copper
port test on a port you are using to run the web-based switch configuration utility, because
communications with that device are disrupted.

Linksys LGS326P Specifications

General

Switch type	Managed
Switch layer	-
Quality of Service (QoS) support	Yes
Combo SFP ports quantity	2
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	26
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24
10G support	No
Number of VLANs	128
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Tagged VLAN
Copper ethernet cabling technology	1000BASE-T, 100BASE-T, 10BASE-T
DHCP features	DHCP client
Security algorithms	802.1x RADIUS
Throughput	38.69 Mpps
Jumbo frames	9000
MAC address table	8000 entries
Product color	Black, Blue
LED indicators	Activity, Link, PoE, System
Number of fans	2 fan(s)
Memory type	DRAM
Internal memory	128 MB
Input current	3.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	28.58 W
Total Power over Ethernet (PoE) budget	192 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	200 mm
Width	440 mm
Height	44 mm
Weight	3096 g
