13
4.
Click Apply. The entry is added to the History Control Table page, and the Running
Configuration file is updated.
5.
Click the History button (described below) to view the actual statistics.

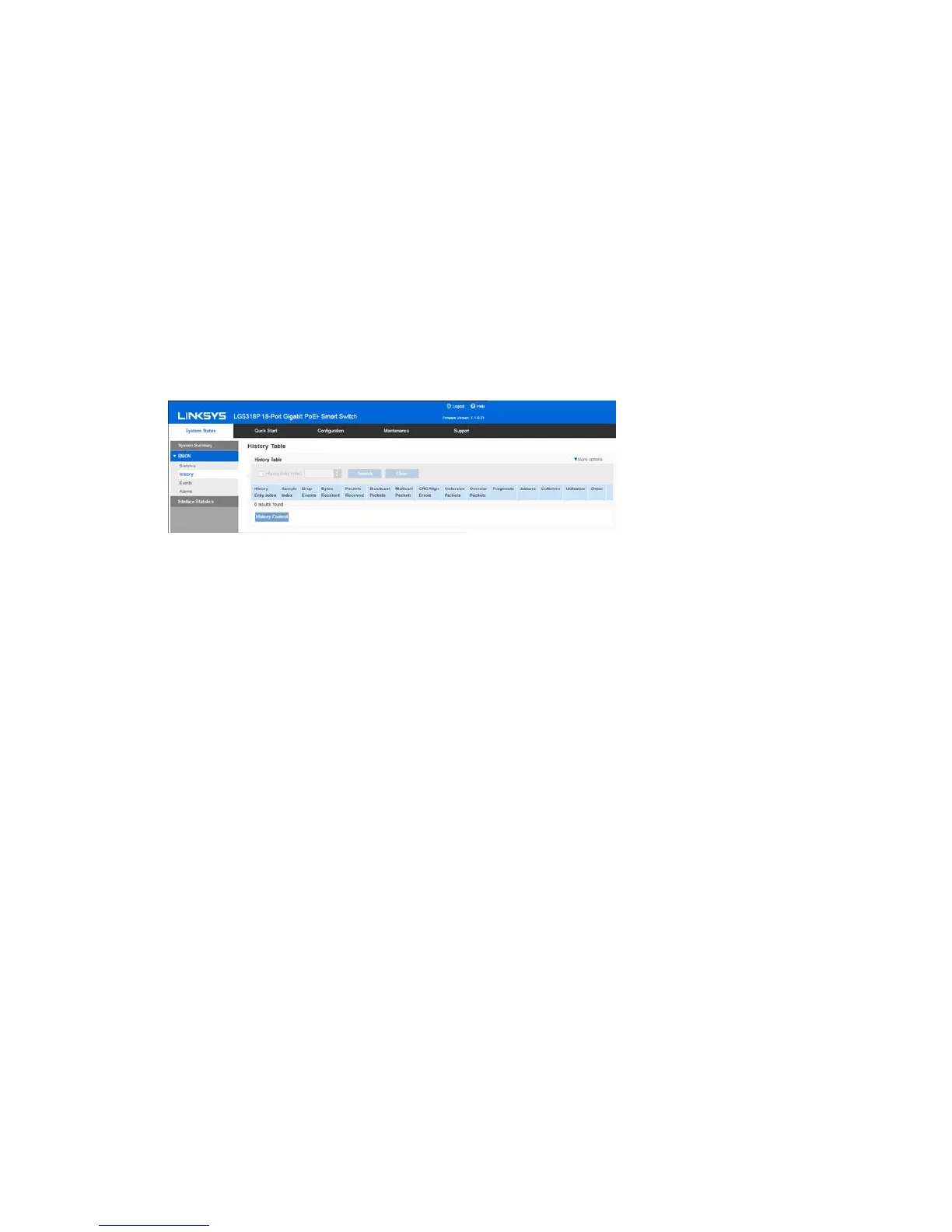

RMON History Table
The History Table page displays interface-specific statistical network samplings. The samples
were configured in the History Control table described above.
To view RMON history statistics:
1.
Click System Status > RMON > History.
2.
Click History.
3.
From the History Entry Index drop down menu, optionally select the entry number of the
sample to display.
The fields are displayed for the selected sample.
•
Owner—History table entry owner.
•
Sample No.—Statistics were taken from this sample.
•
Drop Events—Dropped packets due to lack of network resources during the
sampling interval. This may not represent the exact number of dropped packets,
but rather the number of times dropped packets were detected.
•
Bytes Received—Octets received including bad packets and FCS octets, but
excluding framing bits.
•
Packets Received—Packets received, including bad packets, Multicast, and
Broadcast packets.
•
Broadcast Packets—Good Broadcast packets excluding Multicast packets.
•
Multicast Packets—Good Multicast packets received.
•
CRC Align Errors—CRC and Align errors that have occurred.
•
Undersize Packets—Undersized packets (less than 64 octets) received.
•
Oversize Packets—Oversized packets (over 2000 octets) received.
•
Fragments—Fragments (packets with less than 64 octets) received, excluding
framing bits, but including FCS octets.
