Linksys LGS326P User Manual

77
Chapter 6 – VLAN Management

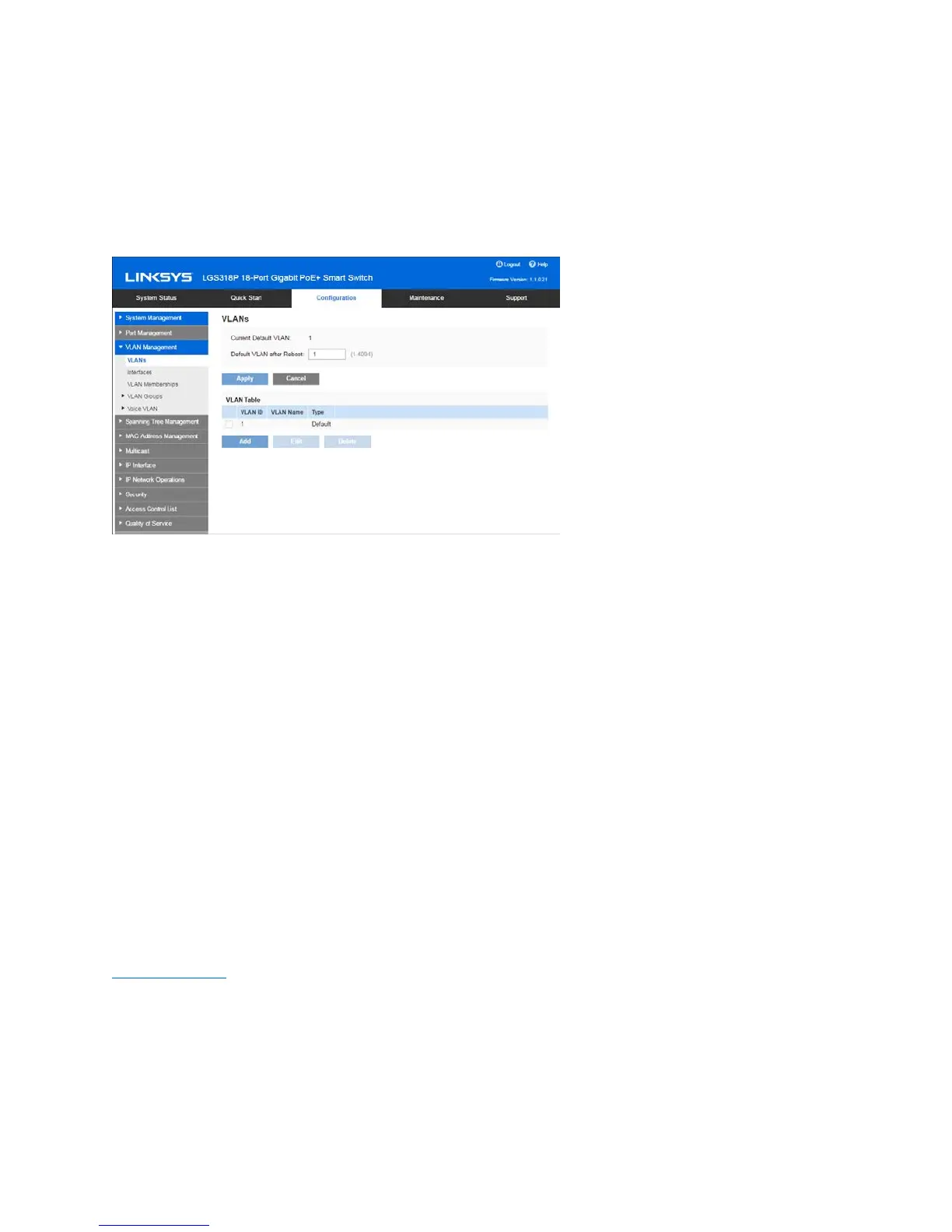

VLANs
A VLAN is a logical group of ports that enables devices associated with it to communicate with
each other over the Ethernet MAC layer, regardless of the physical LAN segment of the bridged
network to which they are connected.
Each VLAN is configured with a unique VLAN ID (VID) with a value from 1 to 4094. A port on a
device in a bridged network is a member of a VLAN if it can send data to and receive data from the
VLAN. A port is an untagged member of a VLAN if all packets destined for that port into the VLAN
have no VLAN tag. A port is a tagged member of a VLAN if all packets destined for that port into
the VLAN have a VLAN tag. A port can be a member of only one untagged VLAN but can be a
member of multiple tagged VLANs.
A port in VLAN Access mode can be part of only one VLAN. If it is in General or Trunk mode, the
port can be part of one or more VLANs.
VLANs address security and scalability issues. Traffic from a VLAN stays within the VLAN, and
terminates at devices in the VLAN. It also eases network configuration by logically connecting
devices without physically relocating those devices.
If a frame is VLAN-tagged, a four-byte VLAN tag is added to each Ethernet frame. The tag
contains a VLAN ID between 1 and 4094, and a VLAN Priority Tag (VPT) between 0 and 7. See
QoS Operation
for details about VPT.
When a frame enters a VLAN-aware device, it is classified as belonging to a VLAN, based on the
four-byte VLAN tag in the frame.
If there is no VLAN tag in the frame or the frame is priority-tagged only, the frame is classified to
the VLAN based on the PVID (Port VLAN Identifier) configured at the ingress port where the frame
is received.

Linksys LGS326P Specifications

General

Switch type	Managed
Switch layer	-
Quality of Service (QoS) support	Yes
Combo SFP ports quantity	2
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	26
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24
10G support	No
Number of VLANs	128
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Tagged VLAN
Copper ethernet cabling technology	1000BASE-T, 100BASE-T, 10BASE-T
DHCP features	DHCP client
Security algorithms	802.1x RADIUS
Throughput	38.69 Mpps
Jumbo frames	9000
MAC address table	8000 entries
Product color	Black, Blue
LED indicators	Activity, Link, PoE, System
Number of fans	2 fan(s)
Memory type	DRAM
Internal memory	128 MB
Input current	3.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	28.58 W
Total Power over Ethernet (PoE) budget	192 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	200 mm
Width	440 mm
Height	44 mm
Weight	3096 g
