LinMot
Configuration Software
User Manual V1.01 5-18
5.9 Oscilloscope
The Oscilloscope is an important resource that helps the user in the commissioning of
his drive system. The Oscilloscope offers the possibility to record data on the LinMot
®
electronic unit in real time and then transmit it to the PC to be displayed. It offers the
following functions:
• two independent channels
• 256 data values for each channel
• variable sample rate from 400µs to 26.2s
• various trigger modes

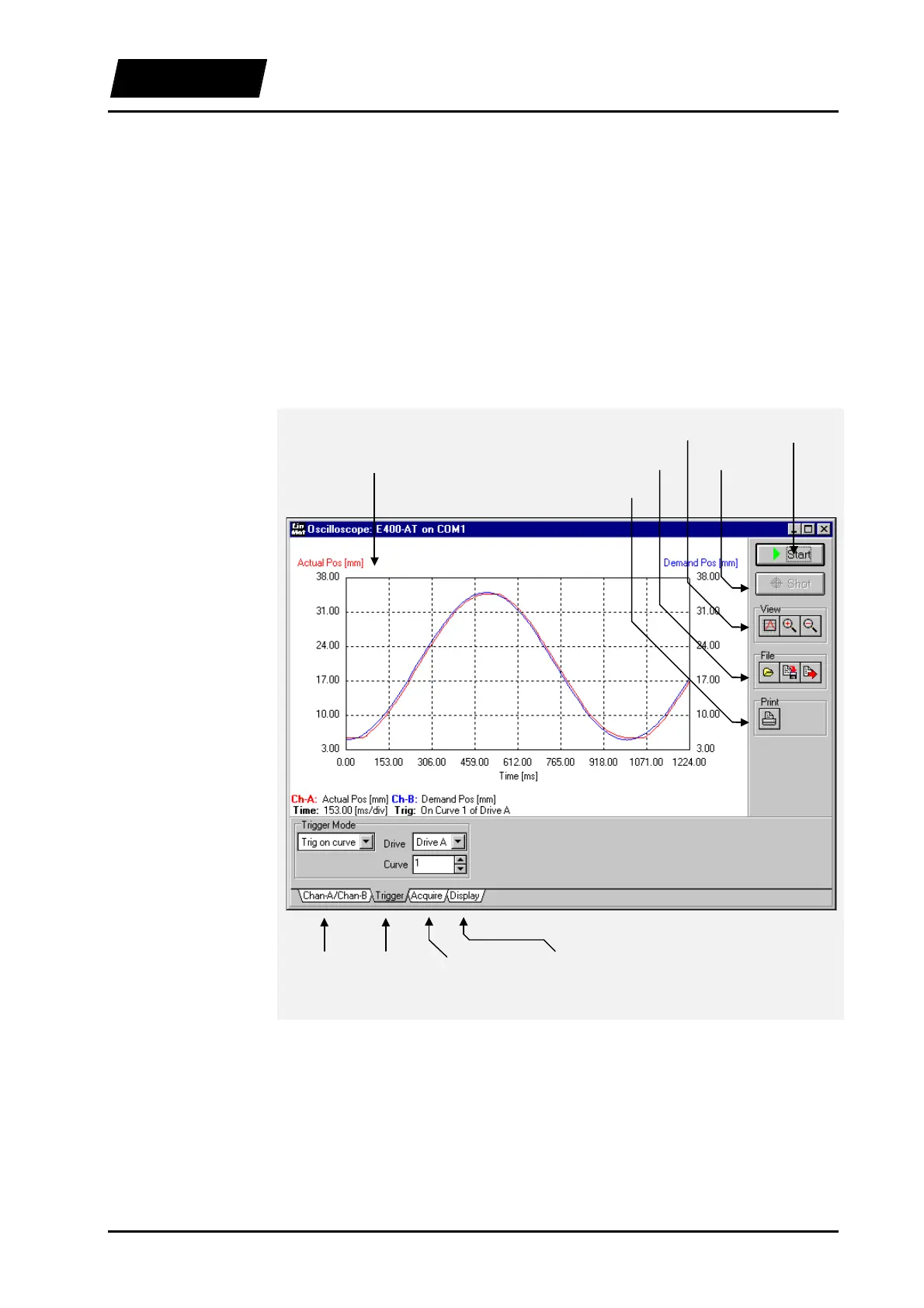

Figure 5-11: Working with the Oscilloscope
File control panel
Print control panel
Variables
panel
Trigger
panel
Sample rate
panel
Display
panel
Start button
Graph display
Shot button
Display command panel
