3.3 Keypad and Terminal Cover Installation
It is not necessary to remove the keypad before wiring. You just need to loosen the terminal
cover screw and remove the terminal cover.
440V 1 to 40HP model enclosure are non-metal. Loosen terminal cover screw and remove
terminal cover for wiring. After wiring, affix the terminal cover back in position and tighten the
screw. For wiring instructions and screw tightening torque please refer to Chapter 4.

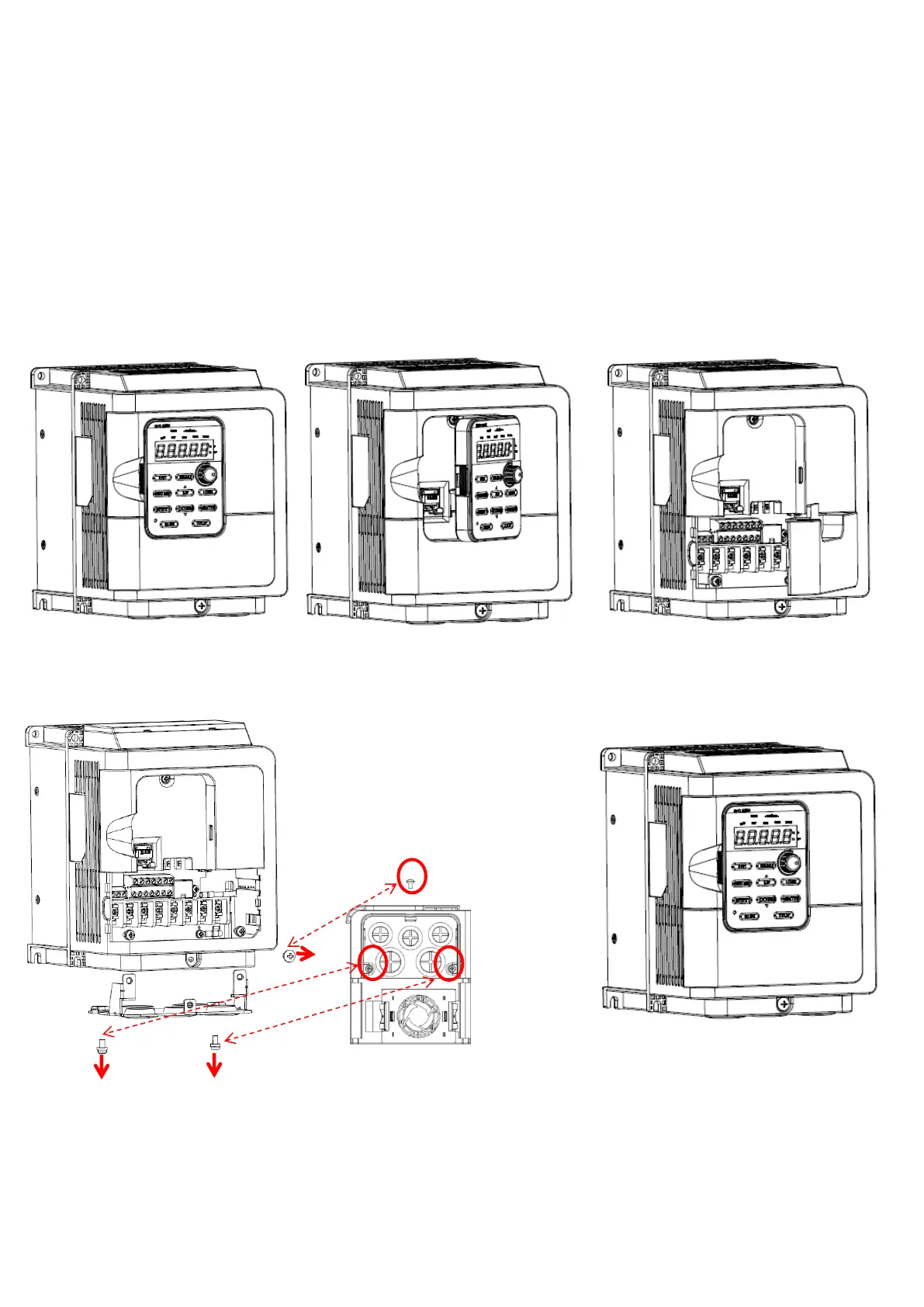

Step1: Loosen front screw Step2: take out the keypad Step3: Remove the terminal cover
Step4: Loosen screws of the wiring cover and
remove the wiring cover
Step5: locking screw, replace the
controller and wiring cover
