LNS TRYTON 107 - 1.2. Layout of the electrical elements

CHAPTER 4: ELECTRICS 29
TRYTON 107/112

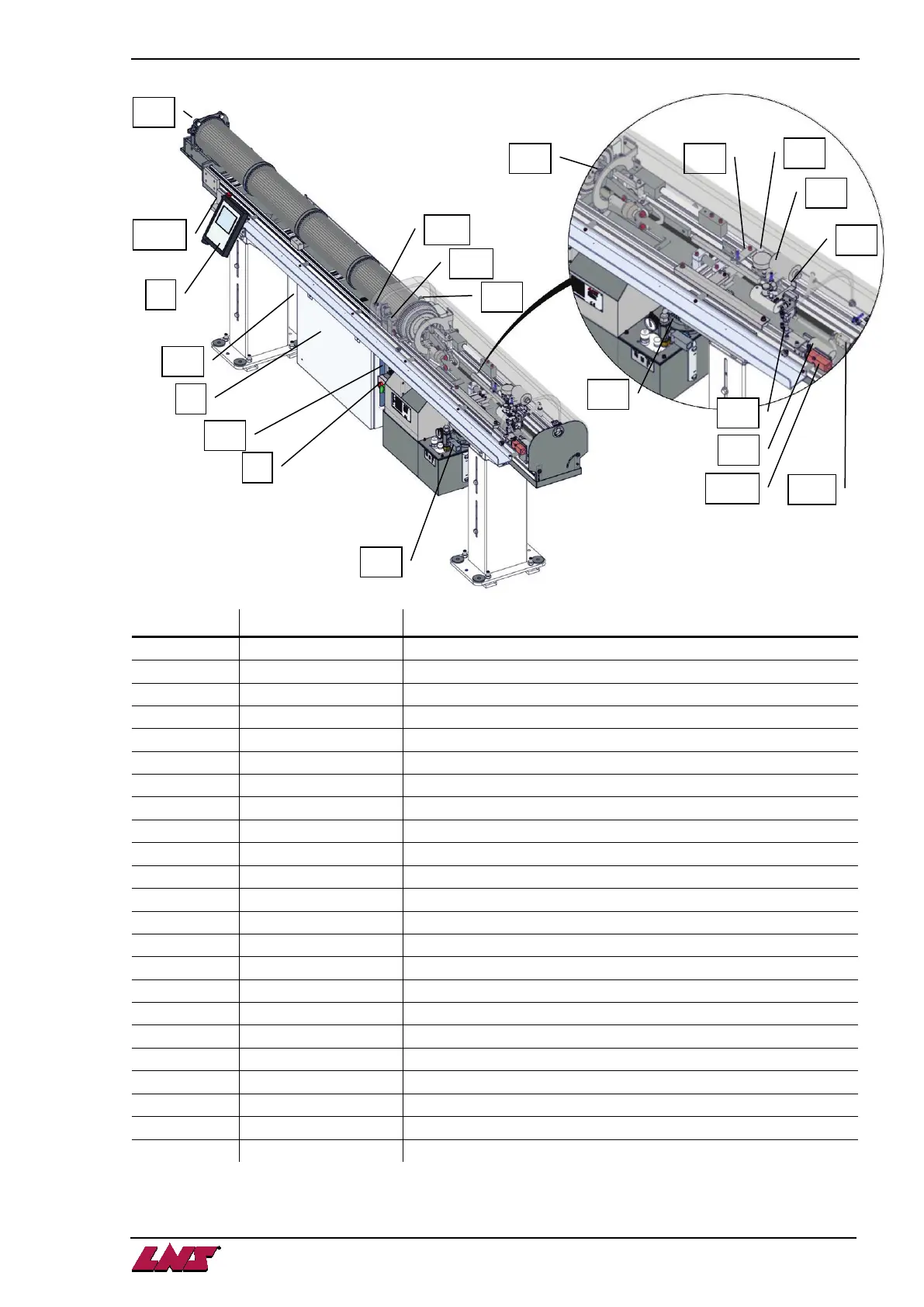

1.2. Layout of the electrical elements
Designation Article nr. Description
A 4.869 / 4.881/2.5 Remote control / Remote cable
B
-
Electrical cabinet
C
4.068/4.074
24 pin connector with cover (not visible)
D
112.012.033
Stationary control
M1
3.189
Hydraulic pump motor
M2
4.643
Barrel-indexing motor
M3
4.396
Connector motor
M4
112.10.124
Cable motor
QS1
4.242
Main power switch
SQ1
4.391
Positioning stopper proximity switch (only for CNC)
SQ2
4.391
Barrel indexing
SQ3
4.391
Indexing hole detector (option Hybrid)
SQ4
44.0072
Material proximity detector
SQ5 4.391 Detector: connector in front position
SQ6
4.391
Detector: connector in rear position
SQ7
4.392
Detector: Locked piston
SQ8
4.620
Magnetic bar-end detector (not visible)
SQ9
4.391
Detector: Positioning of control SQ4
SQ10
4.484
Loading arm security switch (option)
SQ11
4.291
Main access cover safety switch
SP1
3.464
Pneumatic pressure switch
SP2
44.0179.K0.45
Hydraulic pressure switch
SR2
44.0094
Pulse generator: Counting (only for CNC)
M1
M4
SQ7
SQ11
SR2
B
M2
SP2
QS1
SP1
D
M3
SQ2
SQ5
SQ6
SQ9
SQ10
A
SQ1
SQ3
SQ4
