1. HYDRAULIC EQUIPMENT
Please read the safety precautions described at the beginning of this manual before
handling the following devices.
1.1. Description
The guidance principle of the TRYTON 107/112 bar-feeder consist in creating an oil film around the rotating
bar that will help maintain it in the centre of the guidance tube thus avoiding all vibration and friction.
The hydraulic oil is contain ned in a tank.
It is drawn up by a motor pump and injected in the connector.
This pressure causes the pusher to advance and also guides the bar.
A pressure switch measures the pressure at the outlet of the pump.
A level allows the monitoring of the filling rate of the hydraulic tank.

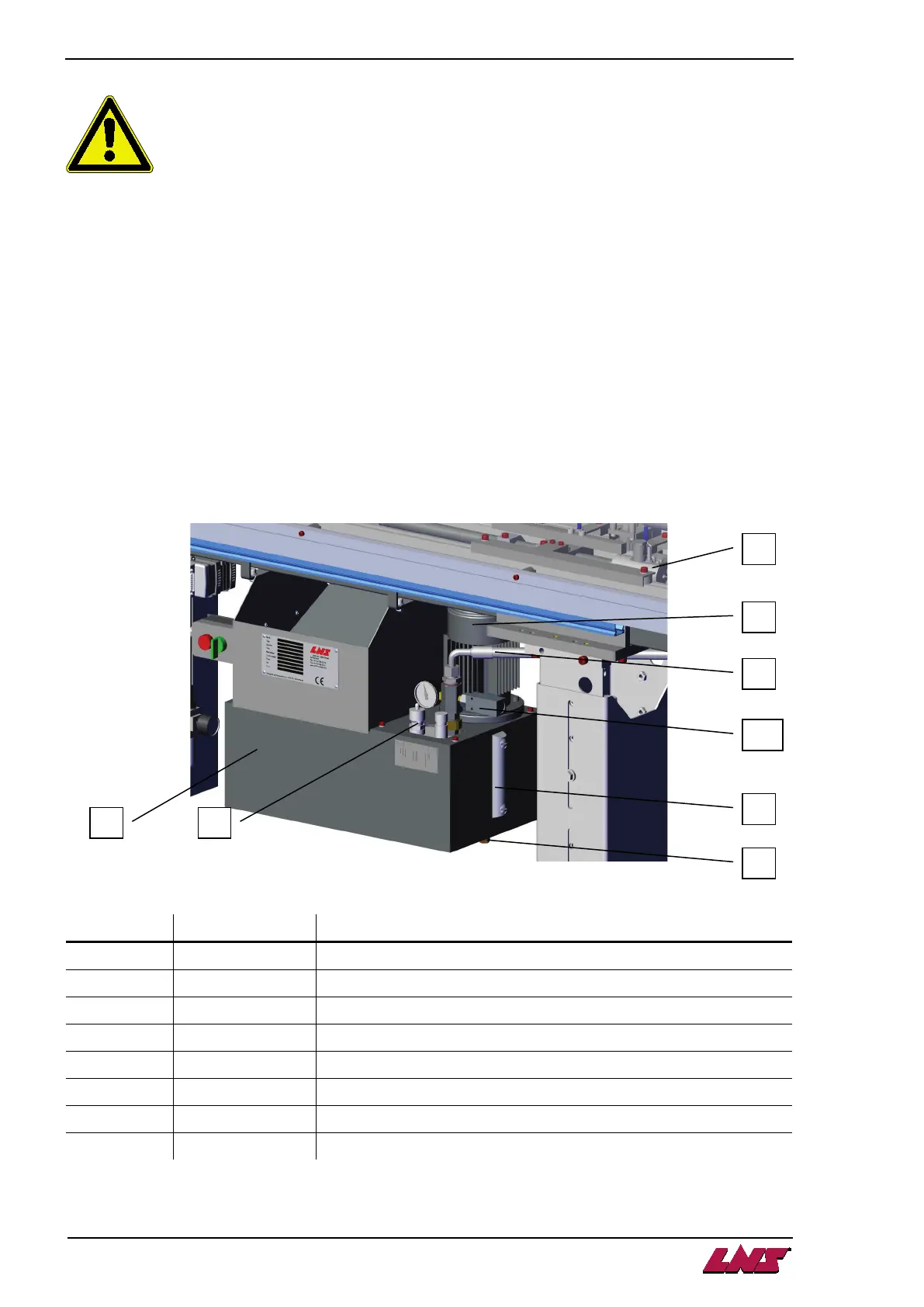

1.2. Layout of the hydraulic elements
Designation Article nr. Description
A 112.12.071 Hydraulic tank / capacity 25 liters
B 2.055 Level
C 112.012.053 Connection block feed tube
D 3.463 Drain plug
E 2.026 Hydraulic block
F 112.008.043 Connector block
M1 3.189 Hydraulic pump motor
SP2 44.0179.K0.45 Pressure control switch
