LNS TRYTON 107 - Hybrid Barrel (Option)

CHAPTER 8: OPERATION 77
TRYTON 107/112
5. HYBRID BARREL (OPTION)
Before any manipulation, stop the lathe at the end of a piece !
To modify any setting, the bar feeder must be in STOP mode.
To save the new setting, hold on [ENTER] key until the icon disappears.

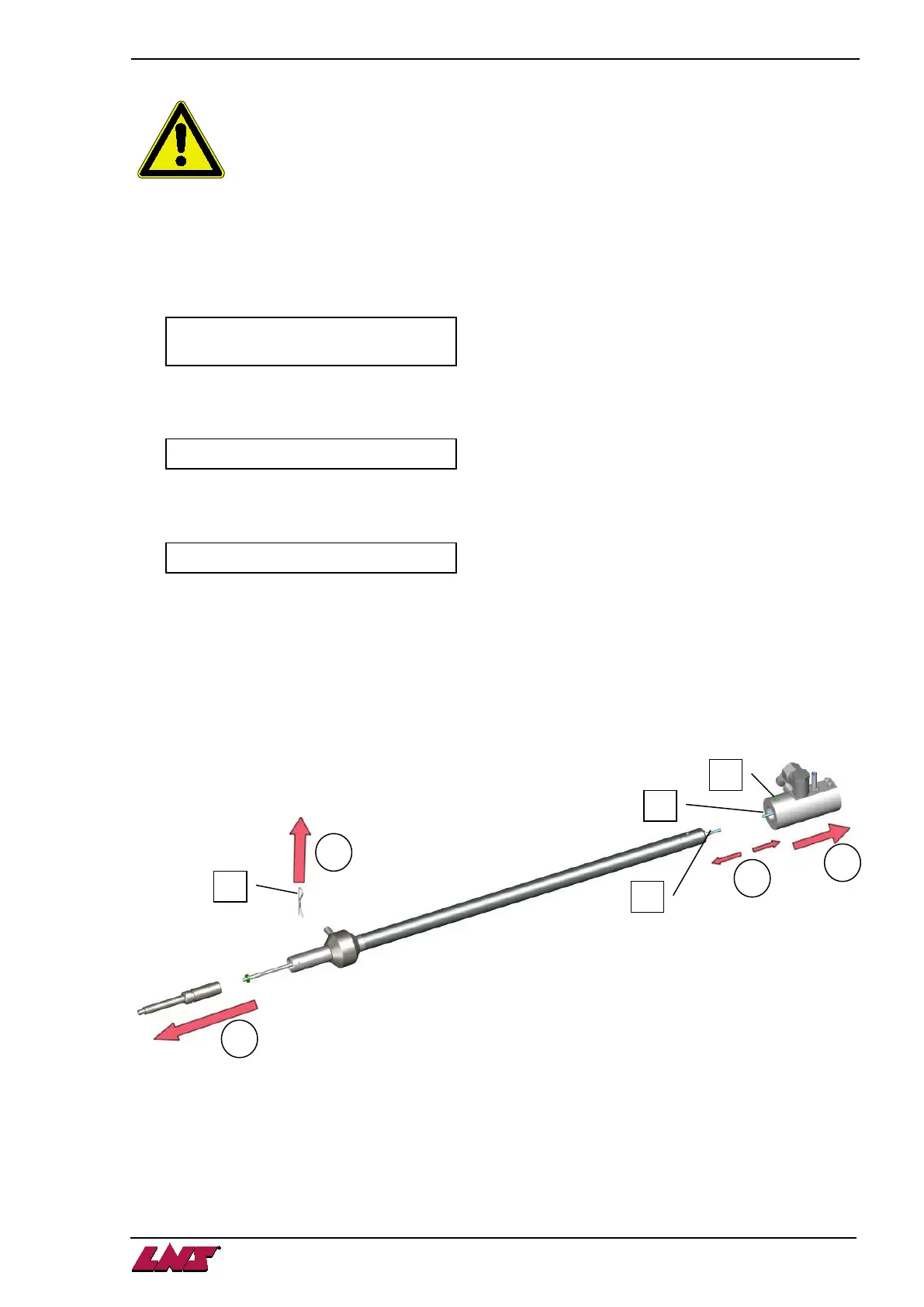

5.1. Procedure
1) Slide the main access cover forwards
2) Press the [STOP] key.
3) Press the [MENNU] key.
The following text is displayed :
4) Press the key corresponding to the [ENTER] icon.
The following text is displayed :
5) Press the key corresponding to the [PAGE DOWN] icon.
The following text is displayed :
6) Press the key corresponding to the [ENTER] icon.
7) Use the stationary control to advance the connector to its foremost position, until the cam bears on the
roller bearings from behind.
8) Remove the cotter-pin (A).
9) Remove the ferrule (B).
10) Unscrew the bolt (C) and remove the connector block (D), taking care not to damage the cable (E).
Place the connector block on the support provided for that effect.
11) Unscrew the cable (E) from the pusher (F).
PARAMETERS RELATED TO
START-UP
CHANGE COLLET
CHANGE CAPACITY
A
C
F
E
8
9
10
11
