50 CHAPTER 5: PNEUMATIC
TRYTON 107/112
1. PNEUMATICAL EQUIPMENT
Please read the safety precautions described at the beginning of this manual before
handling the following devices.
1.1. Description
The following automatic movements of the bar feed system are done via pneumatic elements, namely:
• Locking the barrel
• Front positioning end-stop
• Engaging the cable-feed device
• Opening of the front rest (option)
To guarantee an optimal operation of the bar feed system, a minimum pressure of 5 bars (75 PSI), and a
maximum pressure of 6 bars (90 PSI) is mandatory.

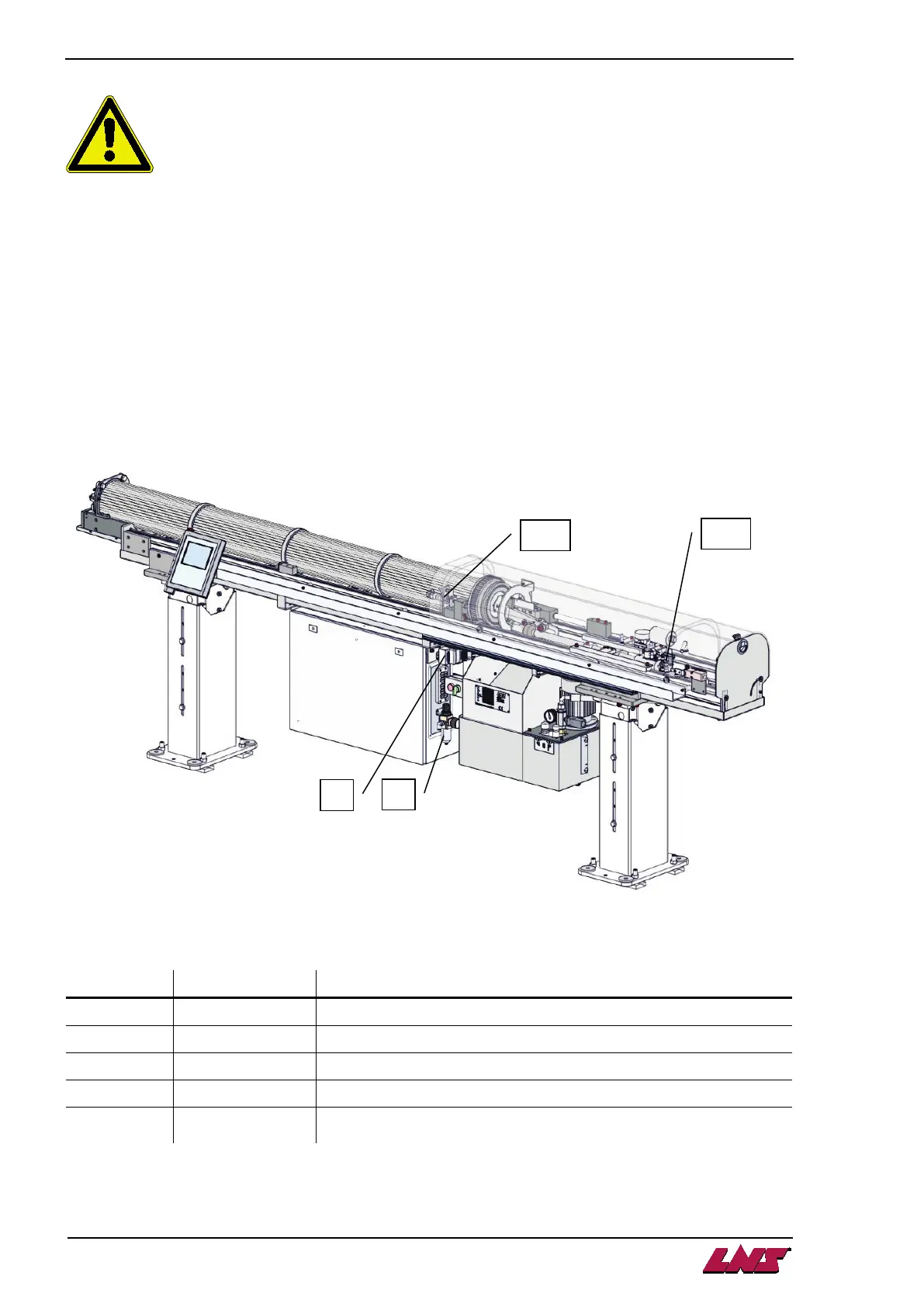

1.2. Layout of the pneumatic elements
Designation Article nr. Description
A 3.636.US/3.638 Air filtering unit with air pressure switch
B 3.613 Valve assembly
ZQ10 3.85012.N.10 Pneumatic cable-feed clutch cylinder
ZQ11 3.85020.N.10 Pneumatic barrel-lock cylinder
ZQ12 3.85010.N.25
Pneumatic positioning stop cylinder
(only for CNC)
