88 CHAPTER 8: OPERATION
TRYTON 107/112

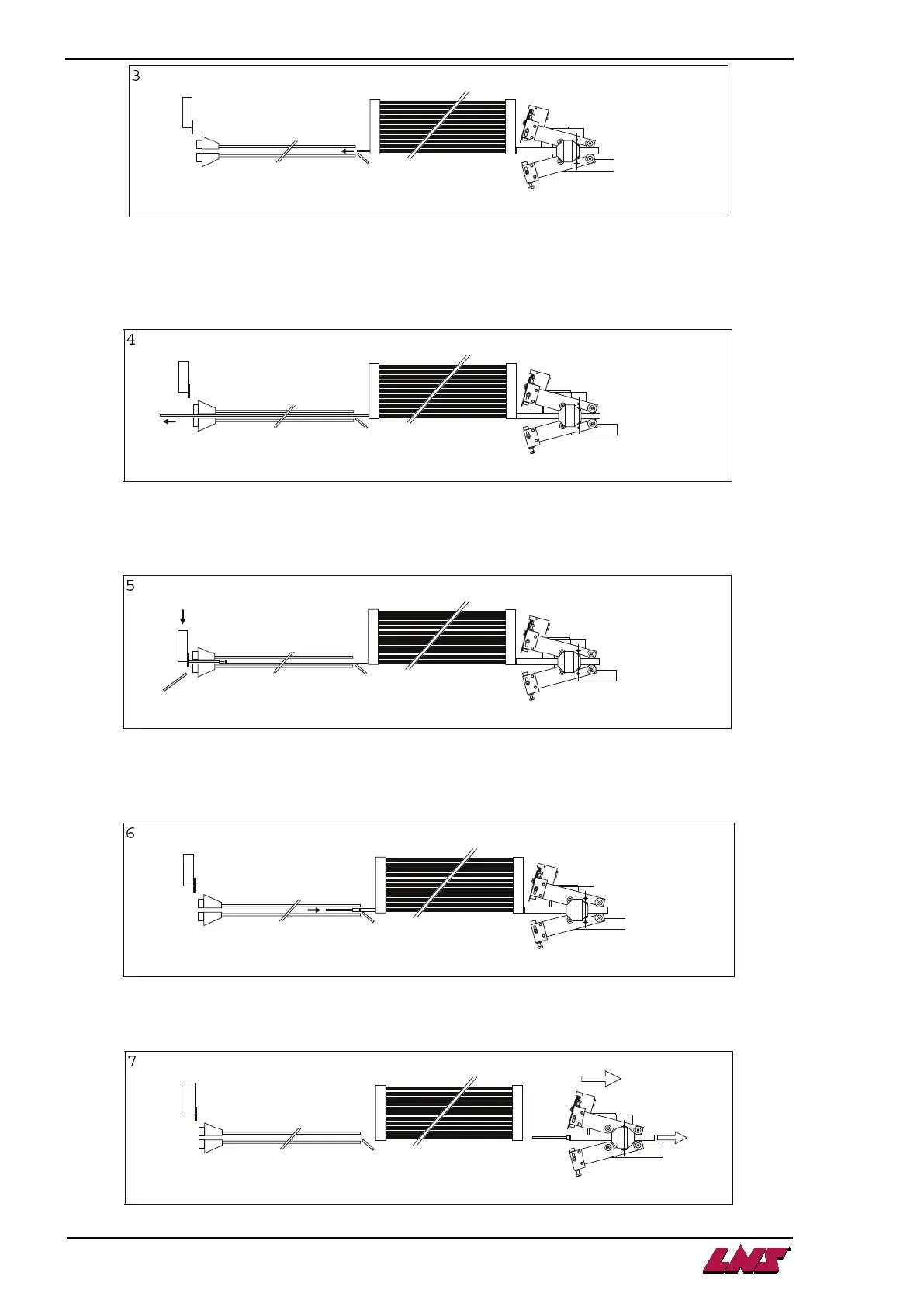

4. The pusher advances and positions the bar in the lathe clamping device.
The lathe clamping device closes. (for CAM lathe type, the lathe clamping device closes after the
time set into parameters).
The production cycle begins.
5. If there is not enough material left to make another piece when the barfeeder collet draws close to
the lathe clamping device, the end-of-rod signal is given and the barfeeder enters in the loading
sequence.
6. The hydraulic motor reverses the direction of rotation and draws the oil into the guidance tube.
Drawn by the retraction cable, the pusher moves back and recovers the remainder of the
material.
7. When the pusher is locked into the connector, the hydraulic motor stops turning and the
connector retracts, taking the mobile vice with it.
