4 Installation
4.1 Environmental and operating conditions
– Keep product feed lines as short as possible. The shorter the feed line, the smaller the specific
resistance and the lower the required dispense pressure.
– Avoid kinking of feed lines.
– Typically, the feed line should be no longer than 2 m.
– Carefully tighten all fittings.
– Avoid exposure to direct sunlight and UV radiation!
– Avoid condensing humidity.
– Avoid splash water.
– For indoor use only. Not intended for use in potentially explosive areas.

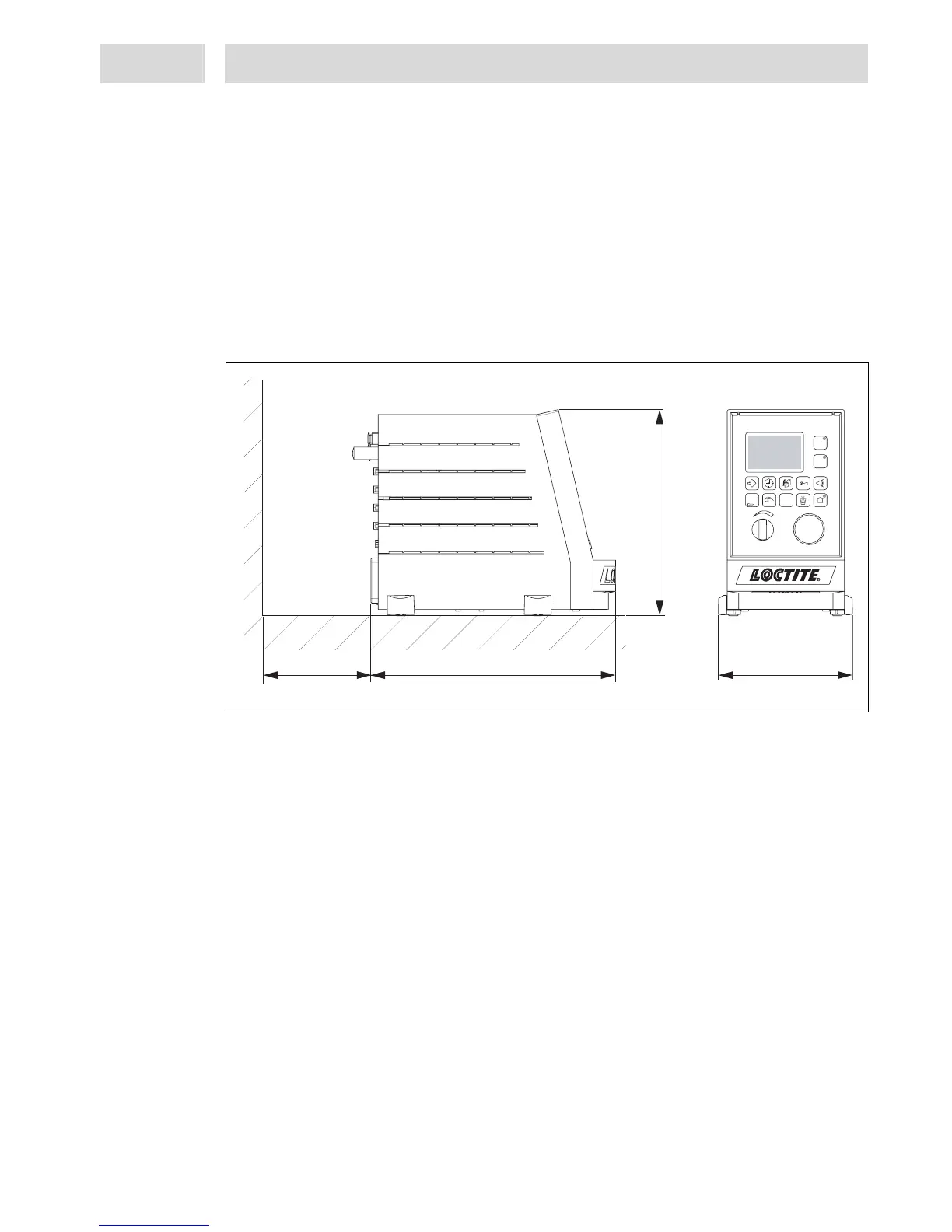

4.2 Space requirements
4.3 Connecting the unit
• Connect power cord to the power supply.
• Connect pneumatic hose to compressed air supply 19.
4.4 Startup
• Switch the power switch 22 to position I.
4.5 Shutdown
• Switch the power switch 22 to position O.
• Disconnect power cord from line voltage.
• Switch off external pneumatic supply.
~100 mm
~4"
270 mm
10.7"
230 mm
9"
~150 mm
~5.7 "
Freiraum für
Kabel und
Schläuche
Area to be left
clear for cables
and tubes
97152
ESC
Start
A
B
