5 Operation

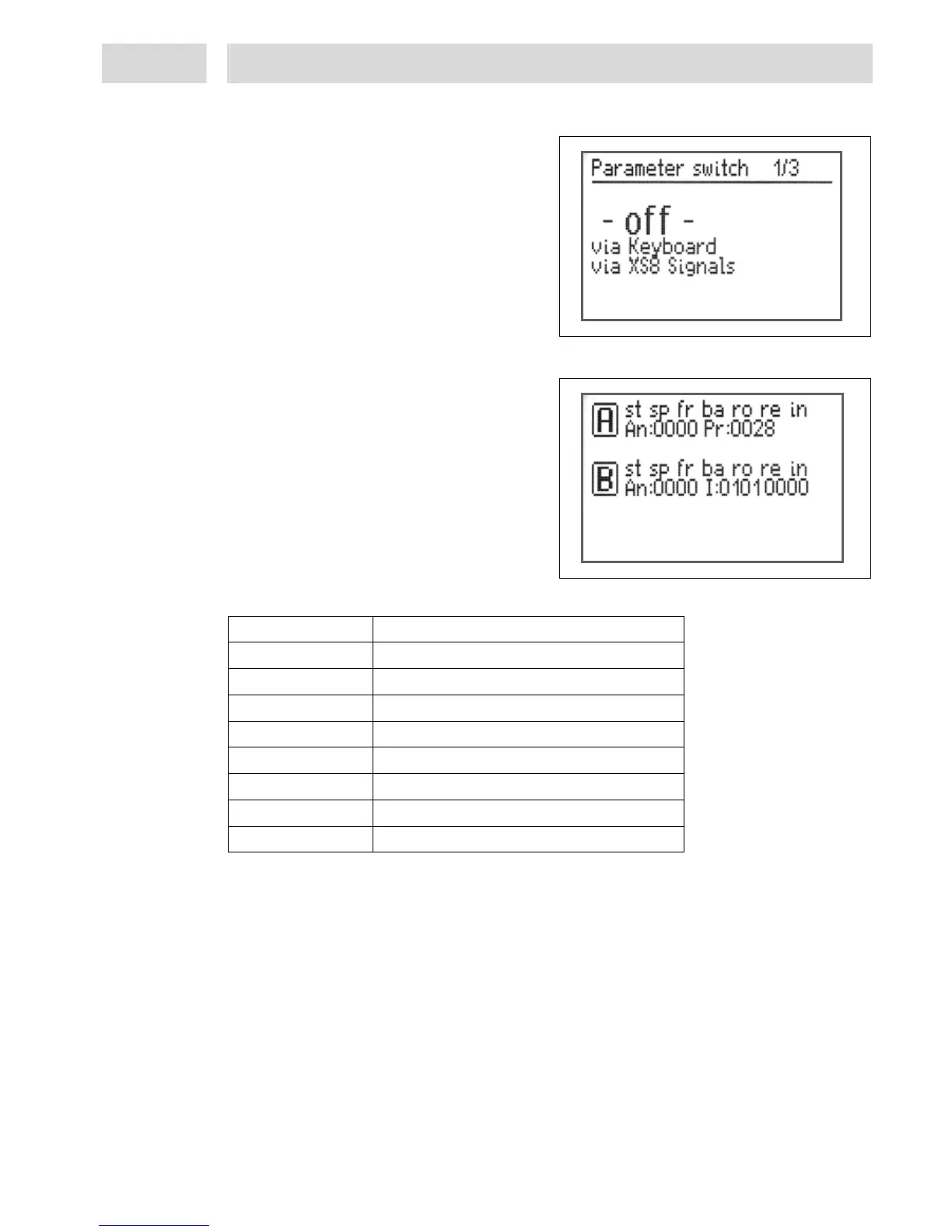

5.3.4 Stored dispense program changeover types:
This is the option for selecting the type of
changeover for the stored dispense programs.
– No changeover, as these programs will not
be used.
– Manual changeover by pressing key 8
Preselection of stored dispense programs
– Changeover using external control signal
via interface XS 8.
5.3.5 I/O signal status
This is an overview of all digital and analogue
inputs and outputs with their current switch
statuses. To allow checking of individual
functions, switch statuses are displayed either
in capital or in lower-case letters.
As a general rule, lower case letters indicate a
non-active/non-switched status; capital letters
refer to an active/switched status.
Description of signal messages
st Start XS 1
sp Start PLC interface
fr Limit switch, dispensing position (forward)
ba Limit switch, home position (back)
ro Rotor Speed o. k.
re Reset input PLC
in XS 8 I/O input
An:XXXX Online inputs
I:XXXXXXXX) Power
