7 Annex
7.1 Spare parts and accessories
Item no. Description Type no. Order no.
– I/O Multiplex Box XS 8........................................................... 97522 840911
– I/O Multiplex Box XS 12......................................................... 97521 840910
– Splitter cable XS 3/XS 4.......................................................... 97529 945063
– Start splitter cable..................................................................... 97203 142638
– Foot switch............................................................................... 97201 88653
– Filter regulator unit .................................................................. 97120 88649
– Valve module .......................................................................... 97204 142639
7.2 Pin assignment
7.2.1 XS 1 Start

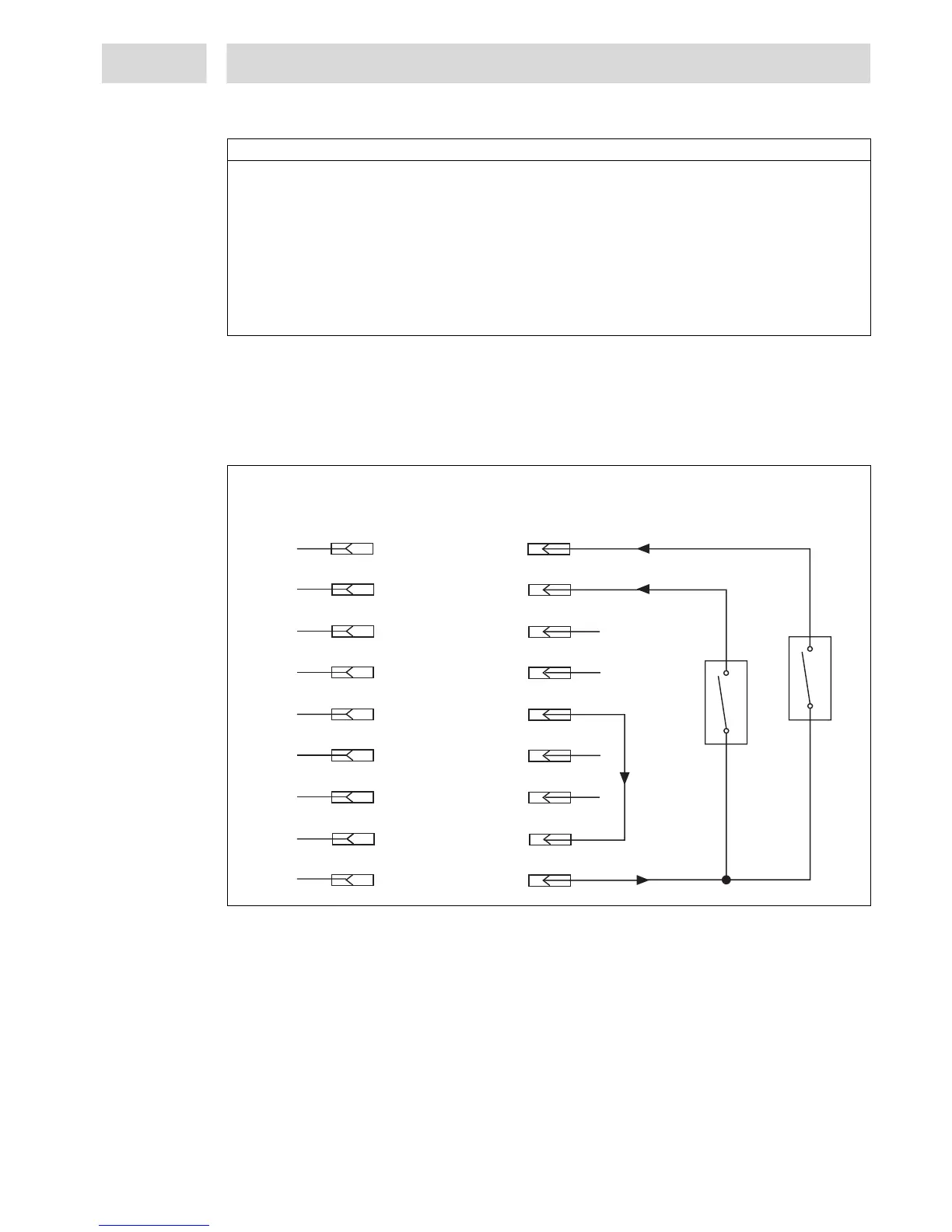

7.2.1.1 XS 1 Start via foot switch
1
2
3
4
5
6
7
8
9
S1
1
2
1
2
3
4
5
6
7
8
9
0 VDC
Start A
Pot. 0 VDC
Controller Foot switch
+24 VDC
S2
1
2
Start B
