Loctite 97152 - Operation: Flow Monitor Status Interpretation; Understanding Flow Monitor Status Screens

85
5 Operation

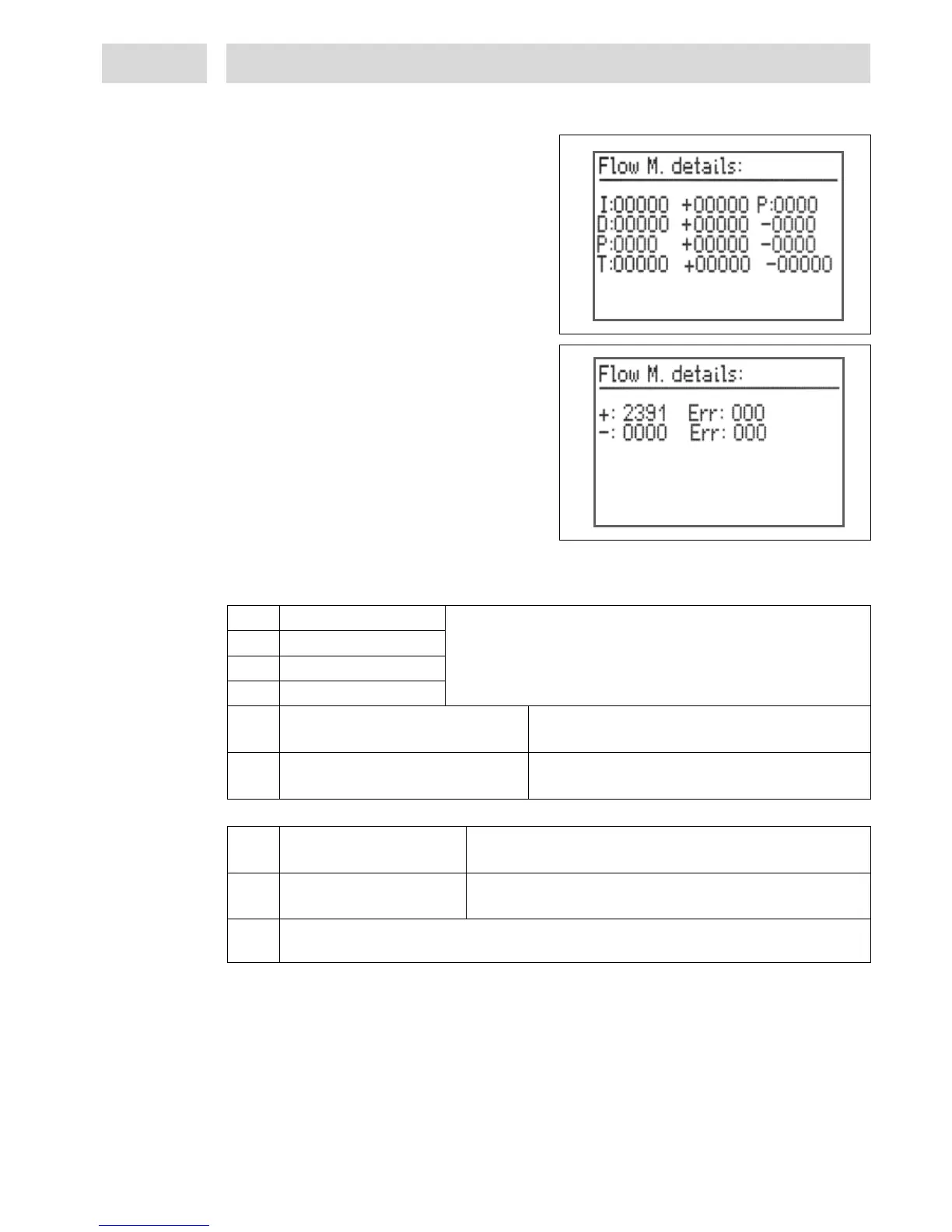

Monitoring status screen
This overview shows the current status of
connected flow monitors.
• Without channel preselection, press key 6
Monitoring twice.
Status displayed in time controlled dispense
mode:
I:00000 +00000 -00000
D:00000 +00000 -00000
P:0000 +0000 -0000
T:00000 +00000 -00000
Status displayed in continuous dispense
mode:
+:0000 Err: 000
-:0000 Err: 000
Description of status options in the display
In timed mode
I
Integral value
D
Curve length
P
Peak value
T
Time
Current measured values
+
– during reference measurements:
– during measurements:
maximum measured
upper limit including tolerance (above = error)
-
– during reference measurements:
– during measurements:
minimum measured
upper limit (below = error)
In continuous mode
+
– while referencing:
– while measuring:
maximum measured value
upper limit
-
– while referencing:
– while measuring:
minimum measured value
lower limit
Err
Number of times values were above or below the limits (if tolerance value setting is
exceeded ¨ error)
