Loewe MediaVision 3D - Connection Guide; MediaVision 3 D as Audio System

MediaVision 3D as an audio system
This is the recommended configuration in conjunction with all TV sets from Loewe
or other manufacturers. The audio signals are processed via MediaVision in this
configuration.
Connect the HDMI OUT socket of the MediaVision 3D to an HDMI IN socket on
your Loewe TV set using the HDMI cable provided.
If your TV set does not have an HDMI IN socket, connect the three sockets COM-
PONENT VIDEO OUT of the MediaVision 3D with three video-compatible Cinch
cables to the COMPONENT IN sockets on your TV set.
You can also make the connection to a TV set with a video-compatible Cinch cable
via the VIDEO OUT socket.
Use an RJ-45 network cable to connect MediaVision 3D to a network connec-
tion (e.g. Switch or DSL router) with a connection to the Internet/Homenetwork.
Use an Audio-Link cable to connect the AUDIO-LINK socket of your Media-
Vision 3D to a compatible socket of the Loewe subwoofer. Should you wish to
reproduce the centre channel through your TV set, use the adapter provided (art.
no. 009-70784.001). Connect it to the AUDIO-LINK socket of MediaVision 3D
and the AUDIO-LINK cable to the subwoofer, as well as the Centre-IN socket of
the TV set. (see page 21).
To be able to reproduce the sound of the TV set, e.g. DVB radio, via your Medi-
aVision/subwoofer system, create an audio connection between the TV set and
MediaVision 3D. Where possible, you should use the cinch cable for digital sound;
connect it to the AUDIO DIGITAL OUT socket on the TV set and to the DIGITAL IN
socket on the MediaVision.
Alternatively, you can connect the analog stereo audio signal of the TV set via a
stereo Cinch connection to the sockets INPUT AUX R/L on MediaVision.
Connect the ANTENNA FM socket of the MediaVision 3D to the antenna provided.
Plug the small plug of the mains cable into the rear of the unit (page 7) and
then plug the large plug of the mains cable into a 220-240V 50/60 Hz socket.

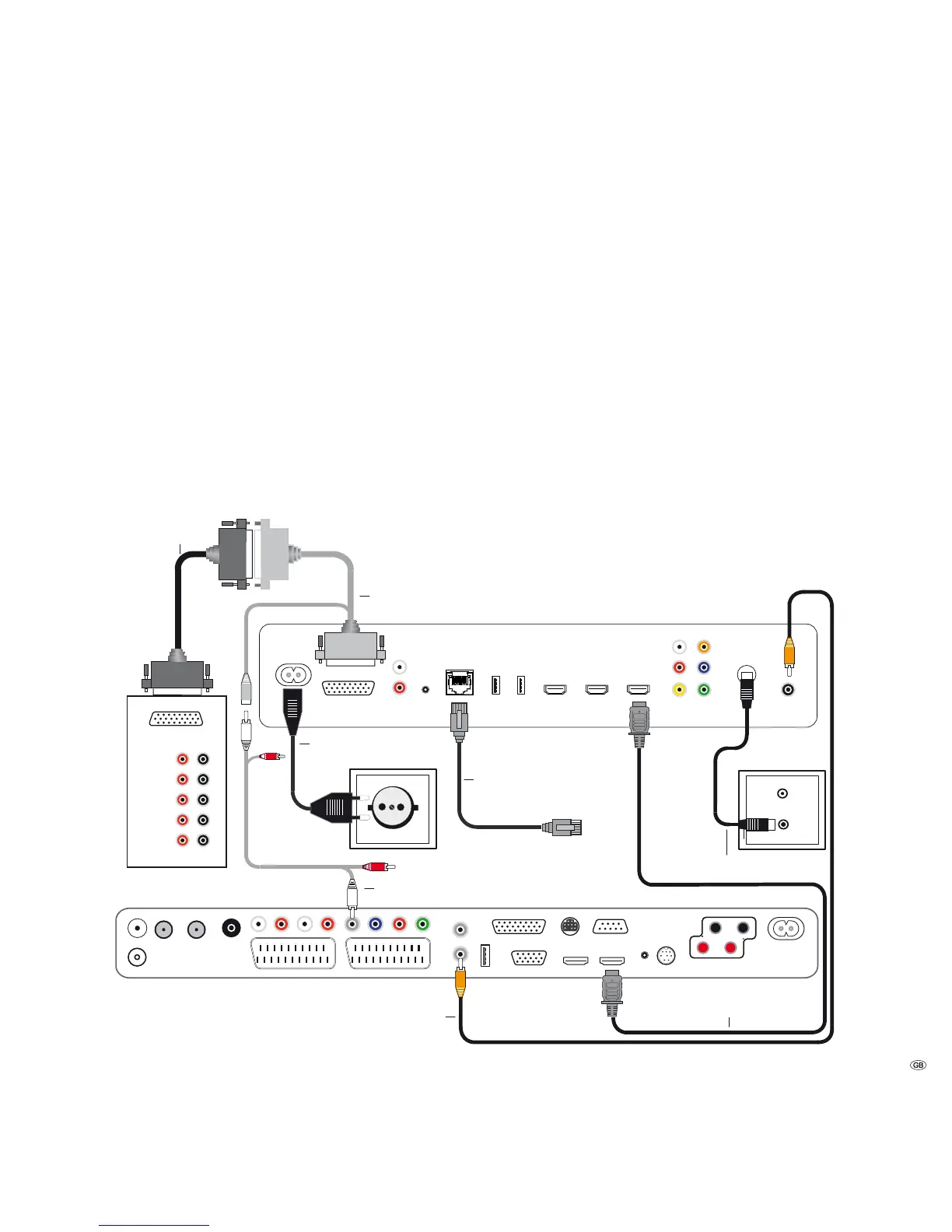

Connection
* for TV sets without Dolby Digital Decoder
11 -
TV set
MediaVision 3D
Digital sound
Mains cable
Centre channel
HDMI cable
Network cable
Loewe subwoofer
FM Radio Antenna
(optional accessory)
AUDIO-LINK
Adapter cable (009-70784.001)
