The unit has four Page displays that represent the four major operating
modes. They are the Satellite Status Page, the Navigation Page, Map
Page and the Sonar Page. They are accessed by pressing the
PAGES key,
then using
→ or ← to select a Page (Clear the menu by pressing EXIT.).

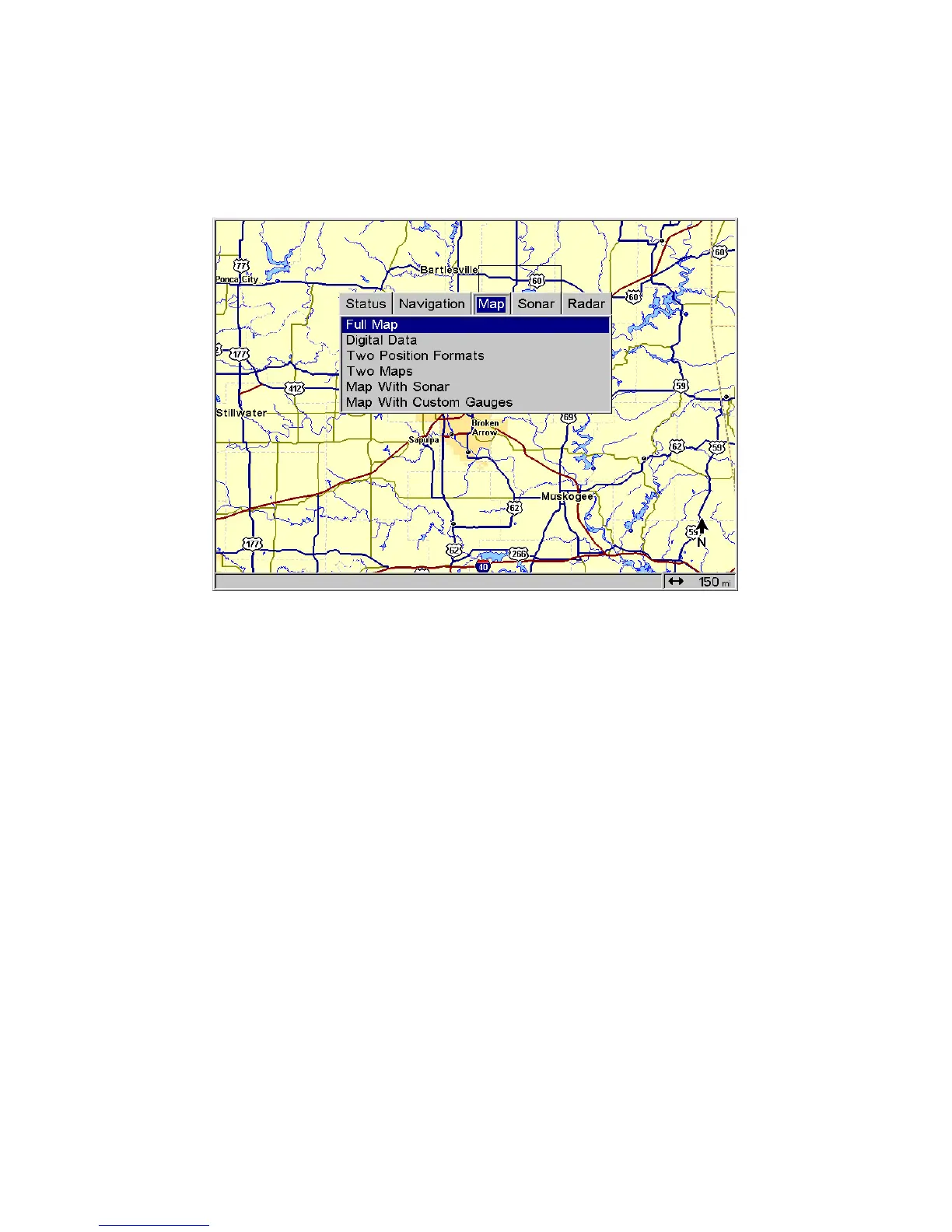

Pages Menu, showing Map page display options.
Sonar Page
The Sonar Page displays the sonar chart, a view of the water column
from the surface to the bottom. The chart scrolls across the screen from
right to left, displaying signal echoes that represent fish, structure and
the bottom. The Sonar Page is discussed in detail in Sec. 3. To get to
the Sonar Page: Press the
PAGES key, then use → or ← to select SONAR
(Clear the Pages Menu by pressing
EXIT.).
Satellite Status Page
The Satellite Status Page provides detailed information on the status of
the unit's satellite lock-on and position acquisition. To get to the Satellite
Status Page: Press the
PAGES key, then use → or ← to select STATUS (Clear
the Pages Menu by pressing
EXIT.).
No matter what Page you are on, a flashing current position indicator/question
mark symbol and flashing GPS data displays indicate satellite lock has been
lost and there is no position confirmed. The Satellite Status Page shows the
quality and accuracy of the current satellite lock-on and position calculation.
WARNING:
Do not begin navigating with this unit until the numbers
have stopped flashing!
