39
NOTE:
You do not need a Bus Adapter Cable with this unit if you
use an approved Devicenet NMEA 2000 connector. Approved
Devicenet NMEA 2000 connectors work with Lowrance red
connector display units and components, so no adapter
cables are needed.
Mounting the Unit: Bracket or In-Dash
You can install the unit on top of a dash with the gimbal bracket. It can
also be installed in the dash or mounted on a portable power supply.
If you use the supplied bracket, you may be interested in the optional
R-A-M
®
bracket mounting system. This converts the unit's gimbal
bracket to a swivel mount, which can be used on the dash or overhead
mounting positions.

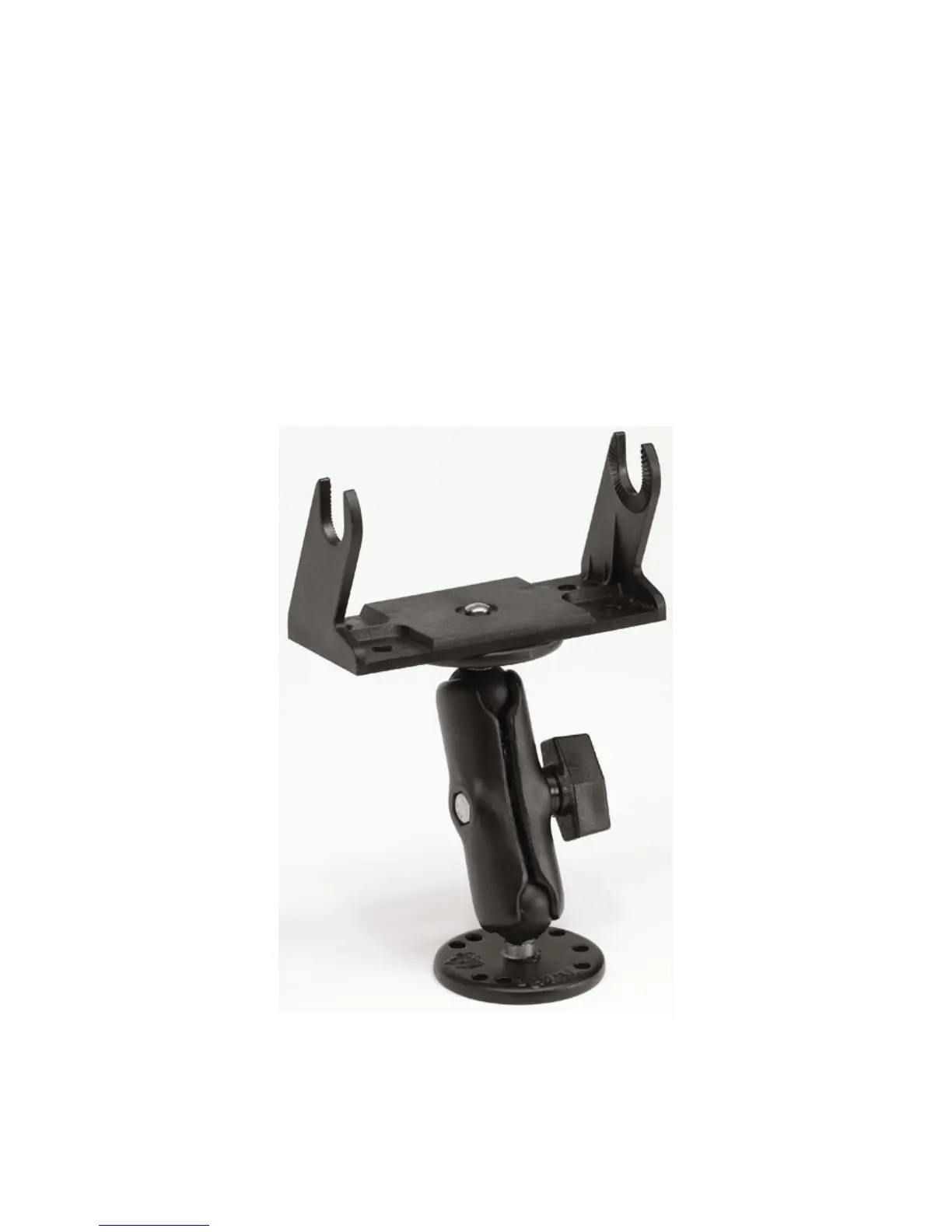

Optional R-A-M mounting system.
Bracket Installation
Mount the unit in any convenient location, provided there is clearance
behind the unit when it's tilted for the best viewing angle. You should also
