14

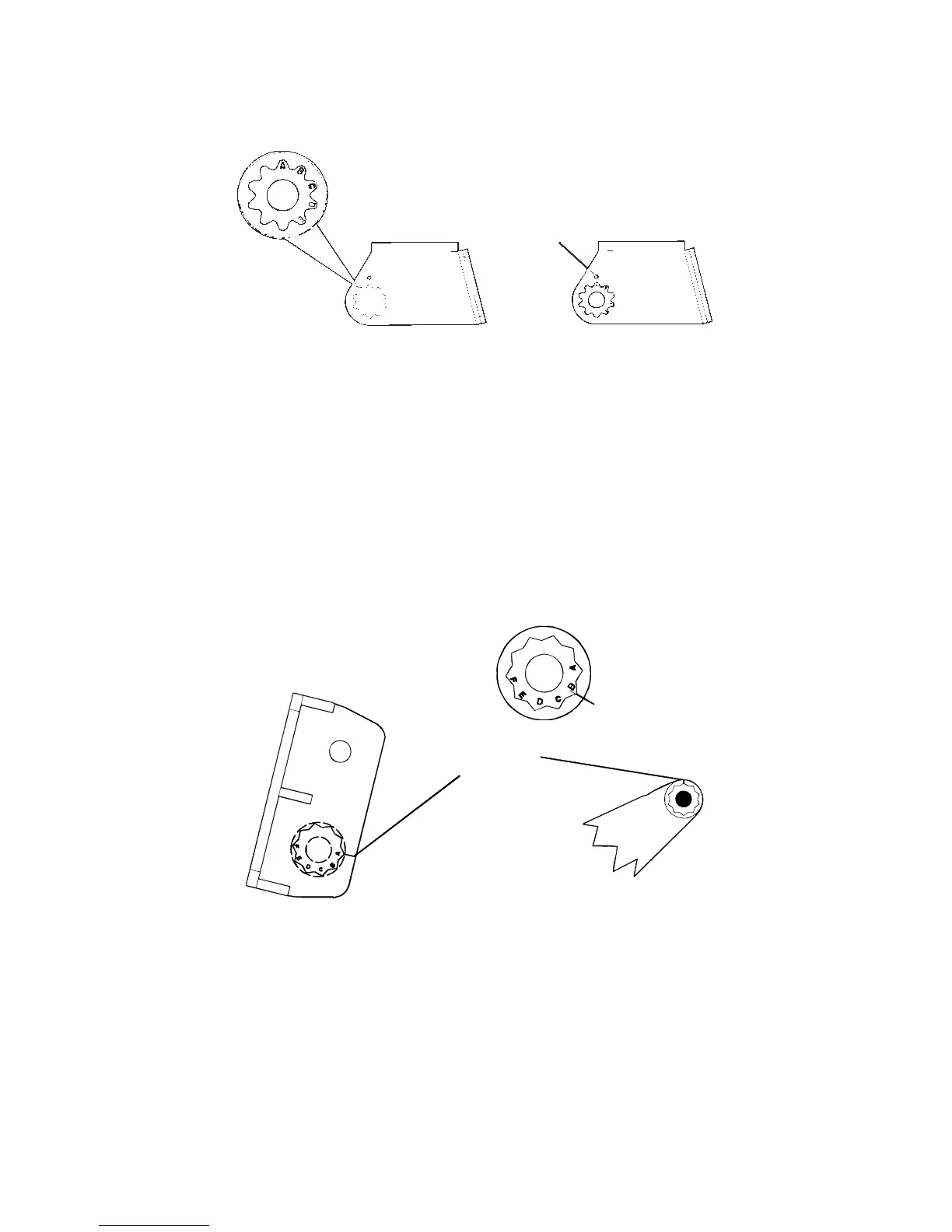

Align plastic ratchets in bracket.
B. Two-piece bracket: Locate the four plastic ratchets in the
transducer's hardware package. Press two ratchets into the sides of the
plastic bracket and two on either side of the transducer as shown in the
following illustrations. Notice there are letters molded into each ratchet.
Place the ratchets into the bracket with the letter "A" aligned with the
alignment mark molded into the bracket. Place the ratchets onto the
transducer with the letter "A" aligned with the 12 o'clock position on
the transducer stem. These positions set the transducer's coarse angle
adjustment for a 14° transom. Most outboard and stern-drive transoms
have a 14° angle.
Insert and align ratchets.
Dot
