LPKF Laser & Electronics AG | V. 1.0

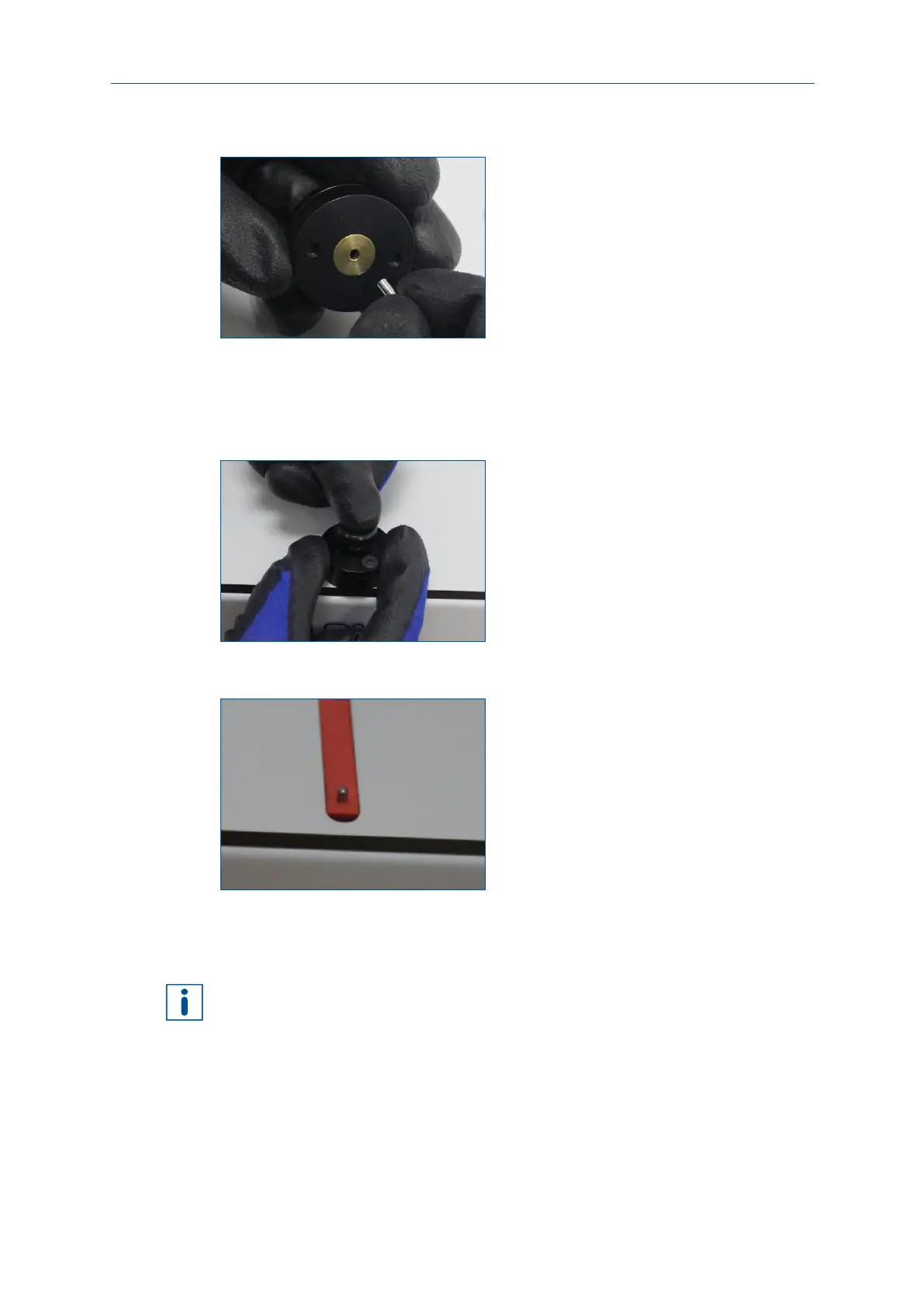

1. Insert the first dowel pin into the insertion tool with the wide end first so that the
conical end protrudes slightly from the insertion tool.
Fig. 54: Inserting the dowel pin
2. Place the insertion tool over the first reference hole.
3. Hold the insertion tool fast with one hand.
4. Press firmly on the insertion tool with the other hand to insert the dowel pin into
the reference hole.
Fig. 55: Inserting the dowel pin
5. Insert the second dowel pin into the other reference hole.
Fig. 56: Inserted dowel pin
The dowel pins have been inserted.
If the dowel pins protrude too far from the material, you have to adjust the milling
depth and drill the reference holes again.
