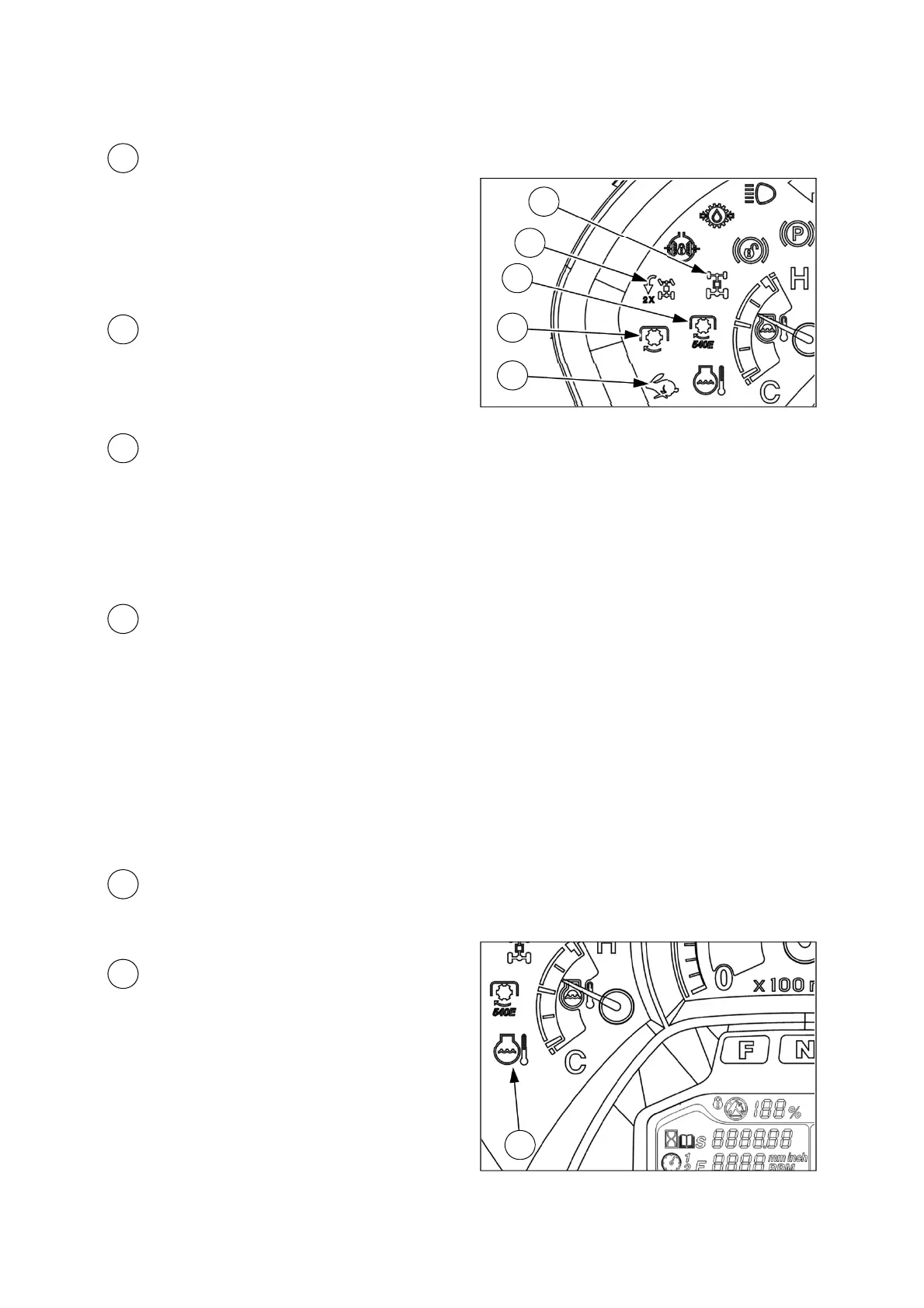

4WD indicator
 When pressing the 4WD switch to “4WD”
position, this indicator will be turned on.
 When pressing down the brake pedals, the 4WD
will be engaged automatically to brake the front
wheels, and this indicator will be turned on.
8
9
Quick turn indicator (optional)
9
 When pressing the quick turn switch to “ON”
position while the key switch is “ON” position,
this indicator will be turned on.
10
11
12
10
540E PTO operation indicator (optional)
11
PTO operation indicator
 When the key switch is “ON” and PTO mode
switch is “MANUAL” and PTO switch is “ON”,
this indicator will be turned on.
 If the PTO mode switch is “AUTO”, rear PTO
and this indicator will be turned off to protect the
PTO drive shaft when the clutch pedal is
depressed or the implement is lifted up over the
specified limit. (For further information, See page
3-31)
12
High speed indicator (Not used)
 This indicator is not used in this model.
 When the PTO gear lever is 750/540E rpm, and
PTO switch and 540E PTO switch is “ON”
position, this indicator will be turned on, and the
engine maximum speed will be restricted in this
mode.
13
Coolant over-heat warning indicator
13
 If the engine coolant temperature goes over the
critical level, this indicator will be turned on. Stop
and cool down the engine coolant.
 If not cleared, contact your authorized local
dealer for check.
