Battery voltage
Hour meter
ESC mode display Speedometer
Error Diagnostic Code
FMI Code
EHL mode display (optional)
ⓒ Engine Speed Cruise control(ESC) and FMI
code
The RPM stored on ECU for Engine Speed
Cruise control(ESC) is displayed in normal
status.
If any of errors related to the engine control
occur, the FMI code to be able to know the error
type or pattern will be displayed by turns
additionally with the engine diagnosis error
codes (9).
ⓓ EHL mode display (optional)
For only Electro-Hydraulic Lift (EHL) models, this display shows the current lifting position per
maximum upper limit in percent ratio.
ⓔ Trailer brake pressure warning indicator
If the trailer brake air pressure is lower than the
designate level, this display will be turned on
with the red vehicle control error warning
indicator (28).
Trailer brake pressure
warning indicator
28
16

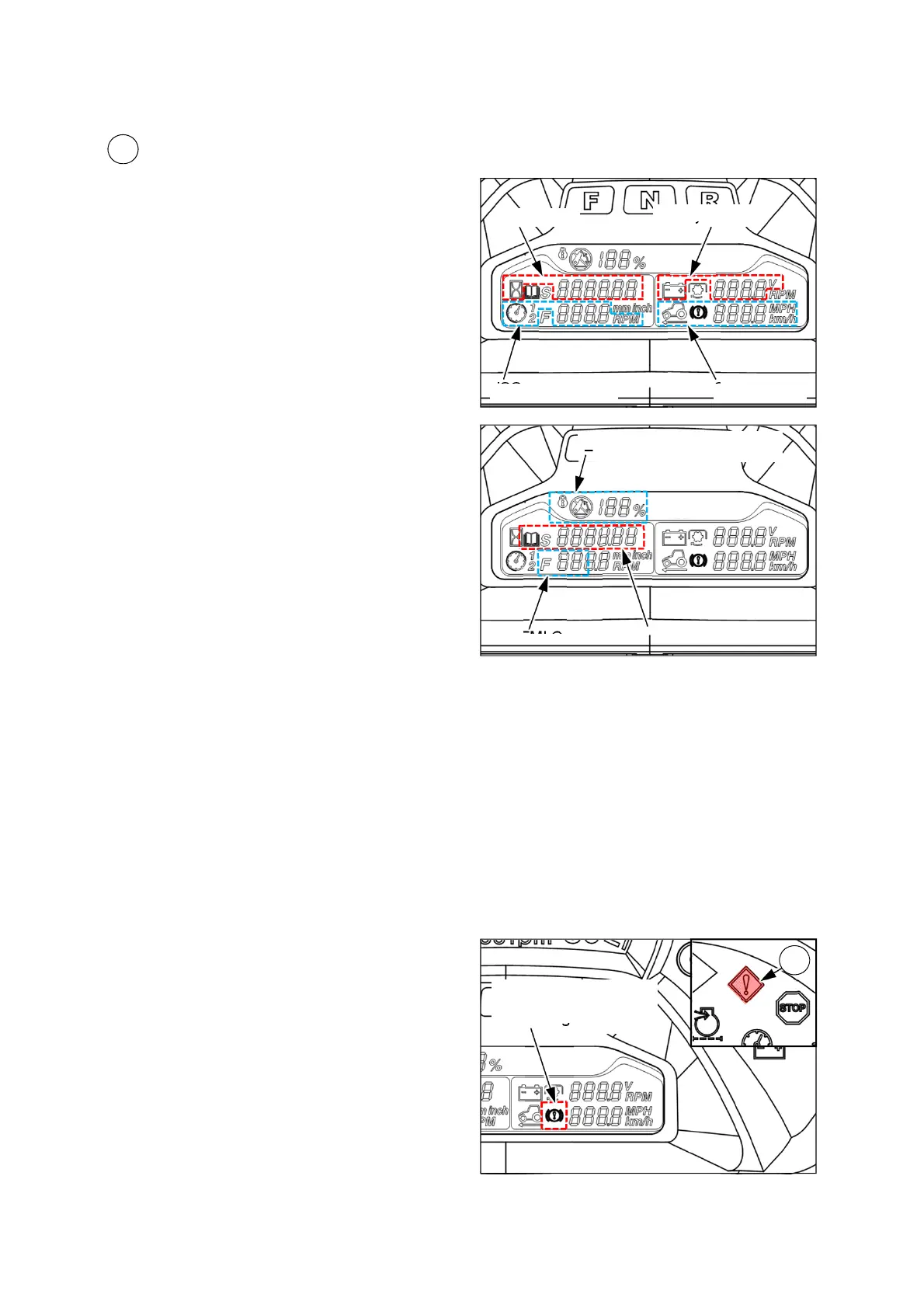

LCD display panel
ⓐ Hour meter & Engine diagnosis error code
If an error does not exist on the engine control, in
normal operating condition, accumulated
operation hours will be displayed
If the display shows “0019.1”, it means the tractor
has been operated for 19.1hours so far, (19
hours and 6 minutes)
If any of errors related to the engine control occur,
the engine diagnosis error codes and hour meter
will be displayed by turns with the vehicle control
error warning light (28). At this time, after
escaping from the emergency area, contact your
authorized local dealer for check.
ⓑ Battery voltage
Available current battery voltage is displayed.
