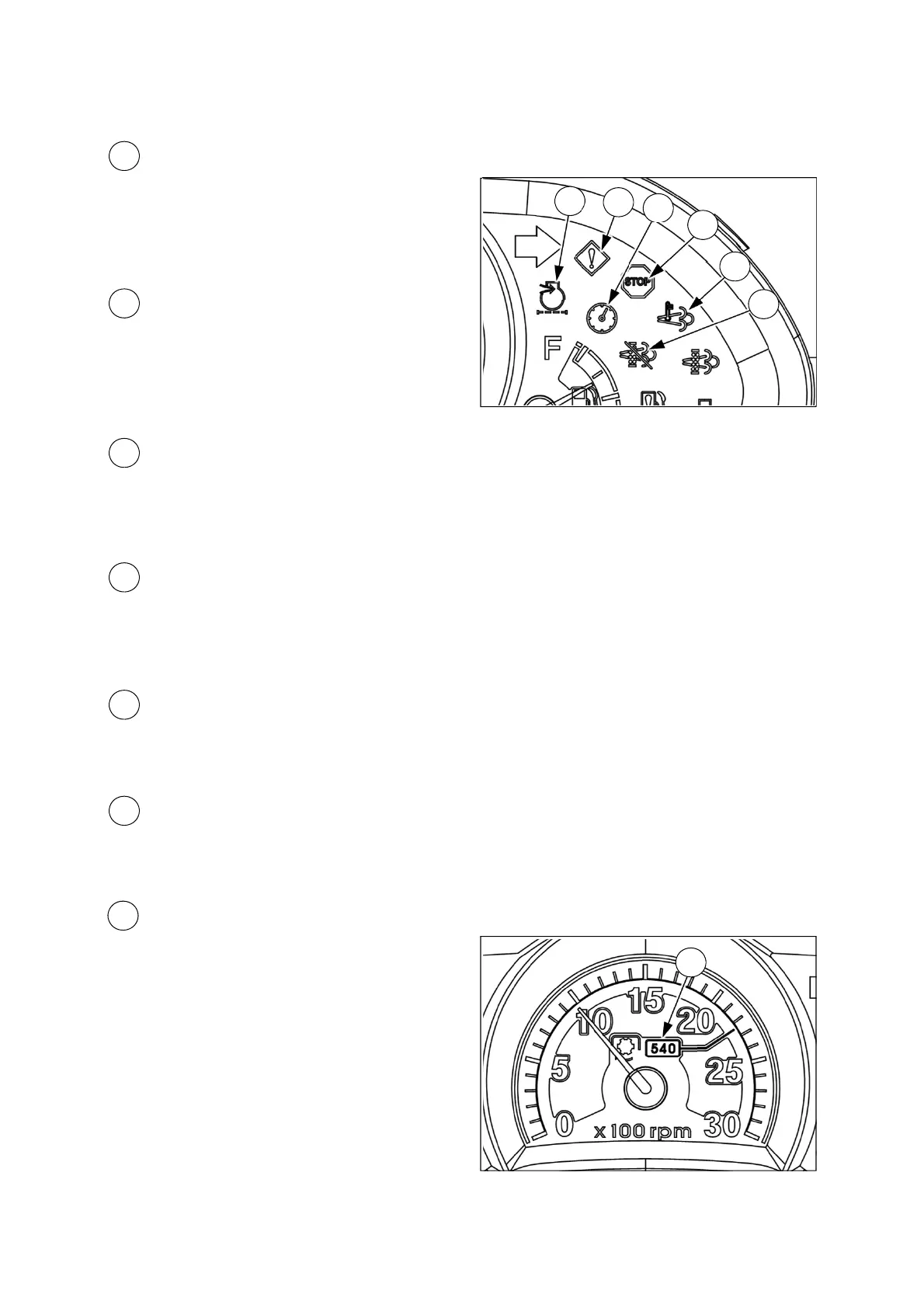

Engine Speed Cruise control(ESC) indicator
 This indicator is turned on when operating the
ESC main switch to “ON” position and the
Engine Speed Cruise control(ESC) is ready.
28
Vehicle control error warning indicator
29
Air cleaner service indicator
27
29
28
26
26
Stop lamp indicator
 If there is a significant error on the vehicle
control, This indicator will be turned on. Contact
your authorized local dealer for check.
 If there is a significant error on the vehicle control, This indicator will be turned on. Contact your
authorized local dealer for check.
 If the air cleaner element is clogged, and the differential pressure is increased, this indicator will be
turned on. After stopping the engine, clean or replace the filter element with a new one.
25
Exhaust gas temperature high indicator
 When the regeneration process in the DPF is
working and the DPF temperature is over the
designated temperature, this indicator will be
turned on with continuous light.
25
30
PTO speed indicator
 It determined by the position of the needle on the
tachometer. The tachometer is marked to
indicate 540 RPM of rear PTO.
 If the tachometer registers above the 540 RPM
mark for rear PTO operation, this indicates a
dangerous over-speed condition. Reduce the
engine speed immediately.
30
24
24
DPF regeneration inhibited indicator
 When the DPF switch is pressed to Inhibited
regeneration mode, this indicator will be turned
on and the regeneration of the DPF will be
stopped.
