Chapter 2 Product Specifications
2-8

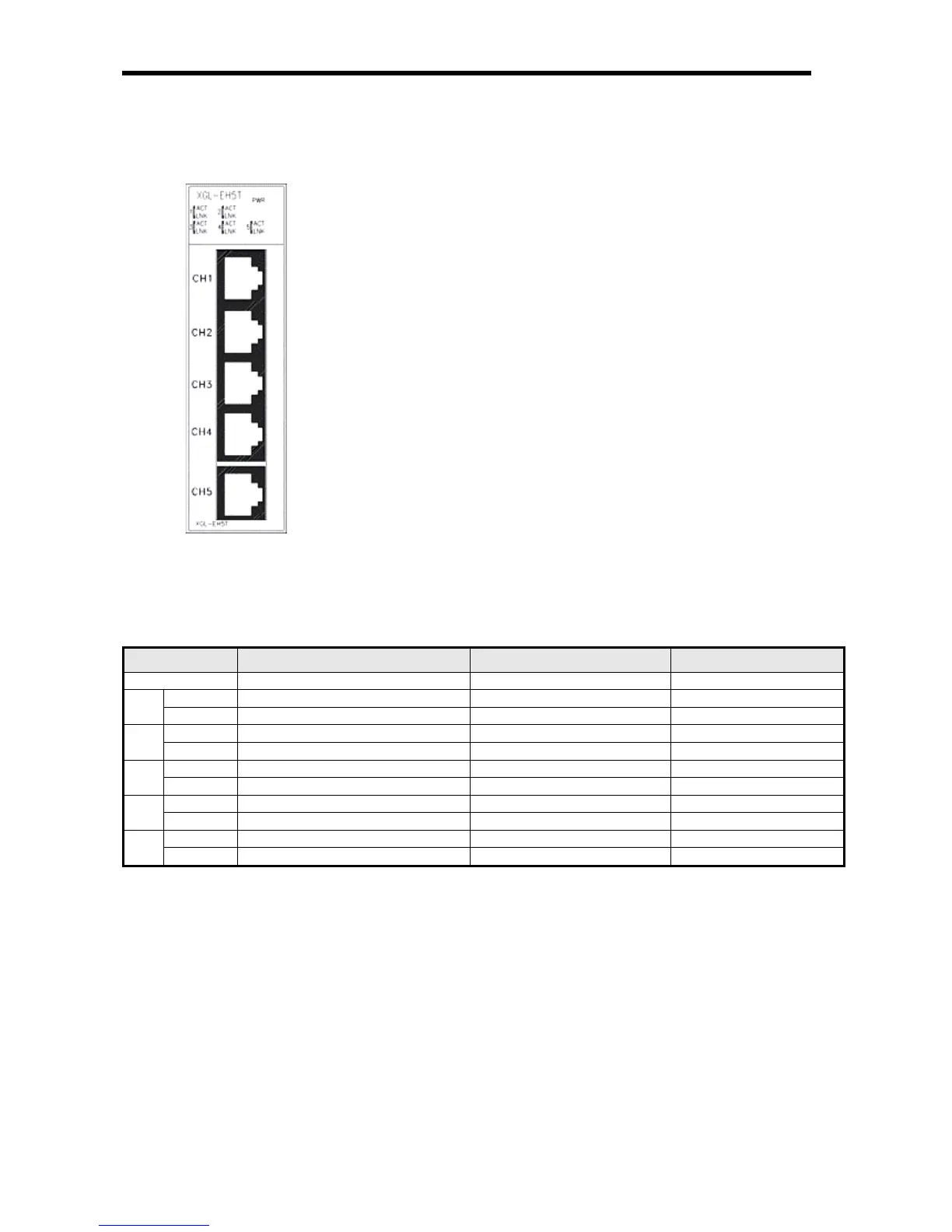

2.3.2 Structure of XGL-EH5T module
(1) XGL-EH5T
Special setting is not necessary and this module gets the power from power. If all LEDs except power LED flicker
one time after power on, switch module is normal.
LED description of XGL-EH5T
LED status Off Flicker ON
PWR
Power is OFF
-
Power is ON
1
ACT
Not Sending/Receiving data
Sending/Receiving data
-
LNK
10Mbps Link
-
100Mbps Link
2
ACT
Not Sending/Receiving data
Sending/Receiving data
-
LNK
10Mbps Link
-
100Mbps Link
3
ACT
Not Sending/Receiving data
Sending/Receiving data
-
LNK
10Mbps Link
-
100Mbps Link
4
ACT
Not Sending/Receiving data
Sending/Receiving data
-
LNK
10Mbps Link
-
100Mbps Link
5
ACT
Not Sending/Receiving data
Sending/Receiving data
-
LNK
10Mbps Link
-
100Mbps Link
 LED display
 Media connection connector
XGL-EH5T
