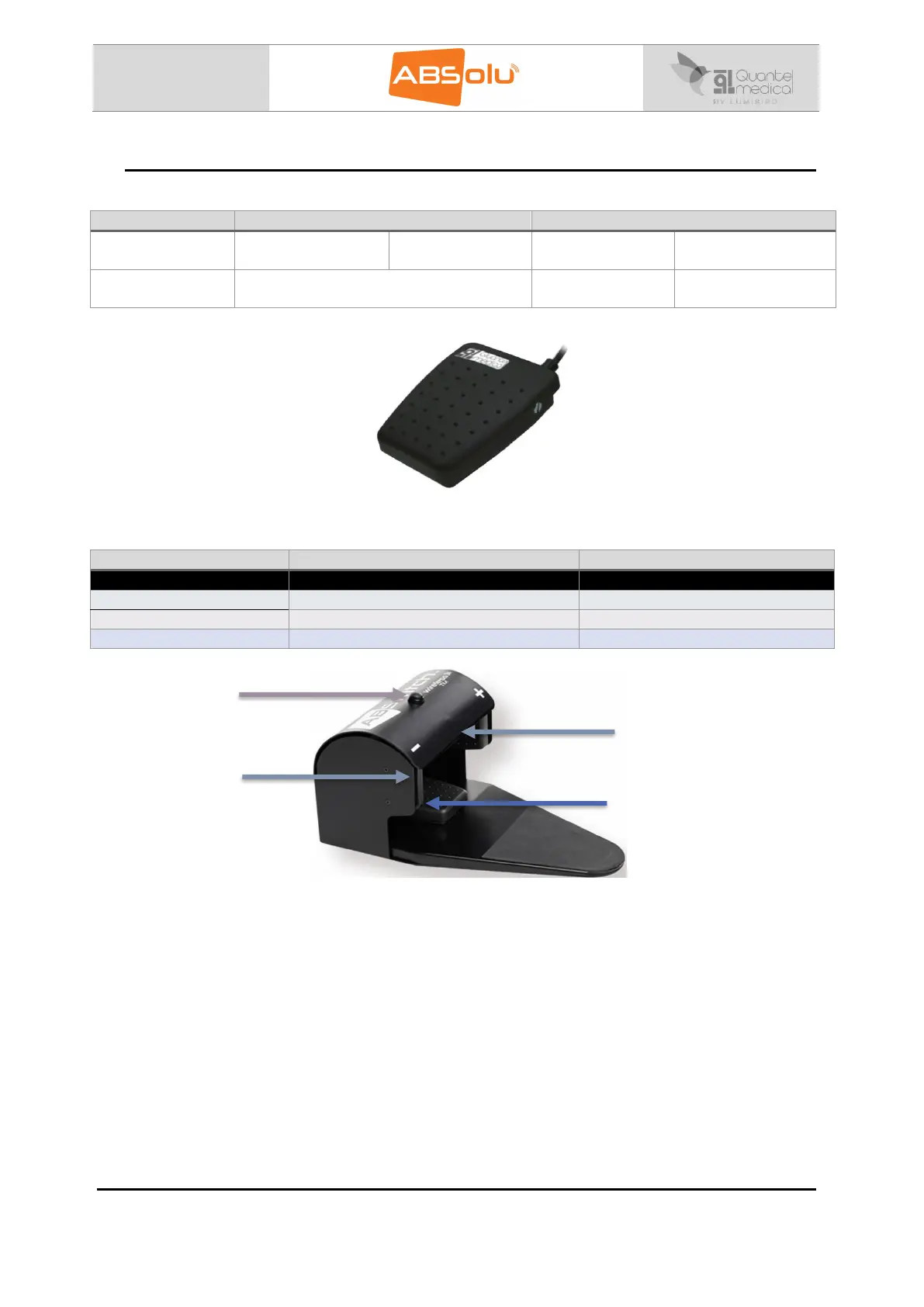

7.4. Footswitch
Single Footswitch functions in B mode:
Acquisition state
Unfrozen image (during acquisition)
Frozen image
Action on
footswitch
Short pressure
(<1s)
Long pressure
(>1s)
Short pressure
(<1s)
Long pressure (>1s)
Allows to:
Freeze the image or acquisition
Unfreeze the
Save
Single Footswitch
ABSwitch
Acquisition state
Unfrozen image (during acquisition)
Frozen image
ACTIONS
ALLOWS TO
ALLOWS TO
Press Buttons + / - (1)
Adjust the gain
Select previous or next images
Press Superior Button (2)
Insert tags
View the IMU calibration tools
Press Inferior Button (3)
Stop acquisition, inhibit / save images
Unfroze the image
ABSwitch
Button “-” (1)
Button “+” (1)
Superior Button (2)
Inferior Button (3)
