Service manual

Service Manual – 53 / 63

XE_ABS_MT_AN_200224

14. INSTALLATION OF COBIAN APPLICATION

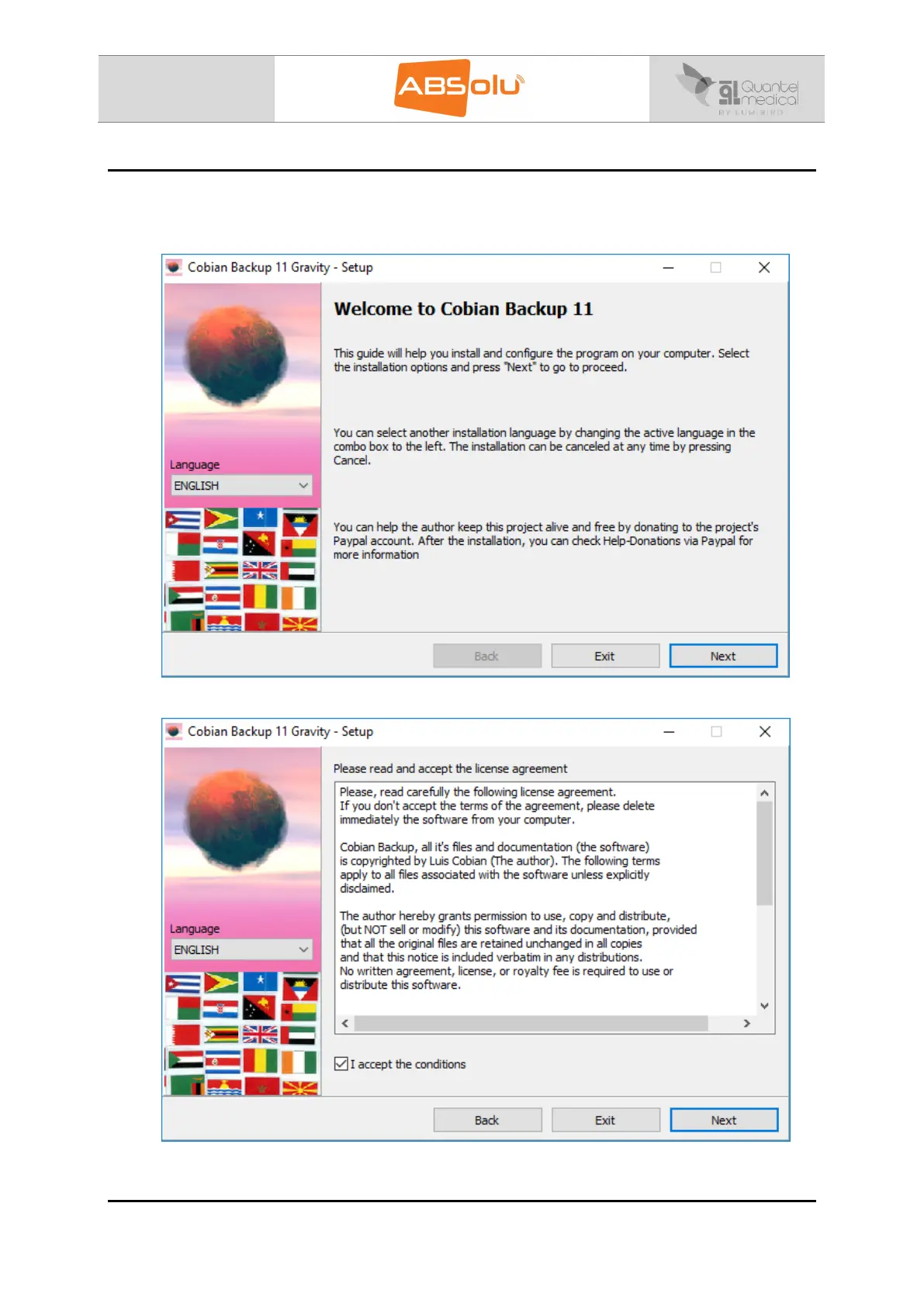

1. Launch “Cobian Backup 11”, called: « cbSetup.exe » and click on “Yes”.

2. Choose the language and click on “Next”:

3. Select “I accept the conditions” and click on “Next”:
