10.3. Linear probe calibration check
WARNING
To use the probe for sizing: the probe calibration should systematically be checked.

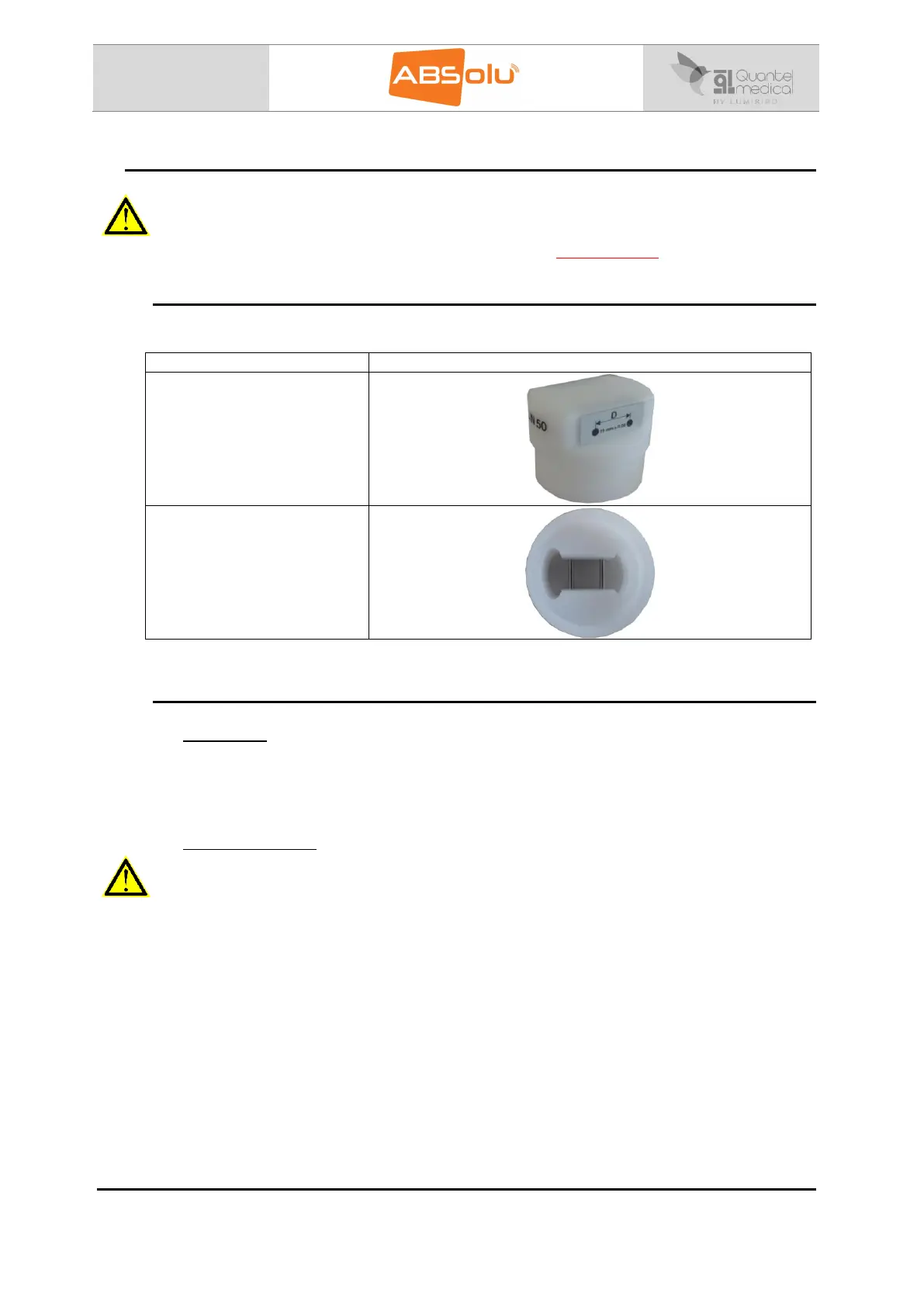

10.3.1. Calibration tool
Each probe is delivered with a calibration tool that has been checked against a master tool.
DESCRIPTION
LIN 50
The probe type is “engraved”
on the side of the tool:
LIN50.
A label indicating the
distance D (between the
pins) is stuck on the tool.
Two metallic pins which
distance is used for
calibration are located
inside the tool.
10.3.2. Calibration setup
A. Equipment
 1 calibration tool corresponding to the probe type
 Demineralized water at temperature between 20°C and 25°C
B. Calibration setup
CAUTION
It is very important to stop the probe scanning motion while setting up the calibration
procedure (freeze the image using the footswitch).
