10.2. Adding / suppressing other probes (B15, B20-5A and LIN50MHz)

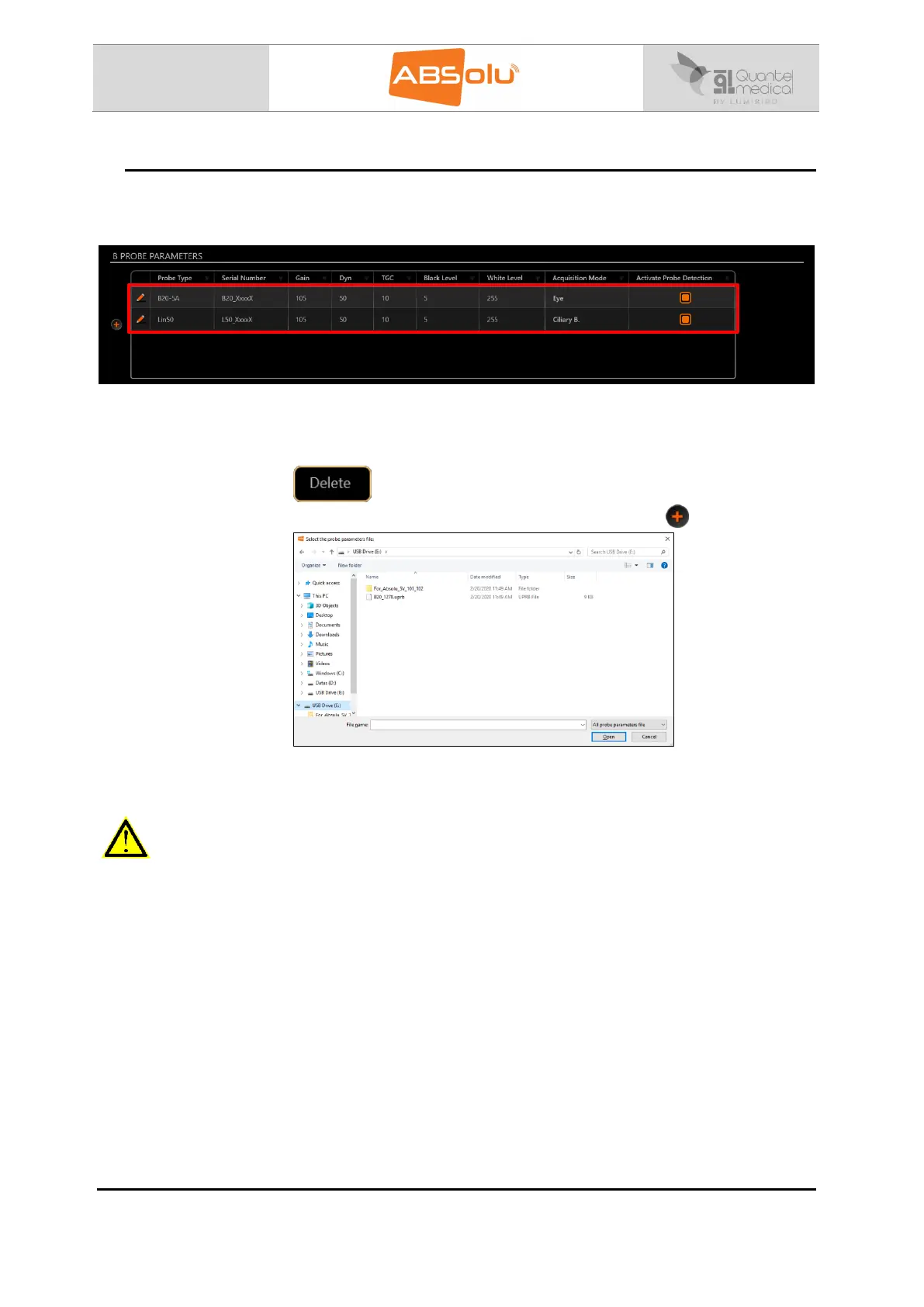

Each probe has specific parameters. The list of already installed probes parameters is
displayed in the probe setup screen as shown below:
This list should correspond to the serial numbers of the probes currently in use on the
ABSOLU unit.
To delete a probe, click right on it and then select “delete” (you can also press the delete key
of your keyboard):
To install a new probe, connect a USB stick into the drive and press the “ ” button:
Select the file (with the probe’s serial number that has to be installed) and select: “Open”.
The probe will consequently be added to the probe in use list.
WARNING
- Two probes of the same type cannot be installed.
- In case the LIN 50MHz type of probe is used, follow the calibration checking procedure
(before using the probe) as explained in next section:
Section 10.3: Linear probes calibration check
