Service Manual – 28 / 63
XE_ABS_MT_AN_200224
C. LIN 50
CAUTION

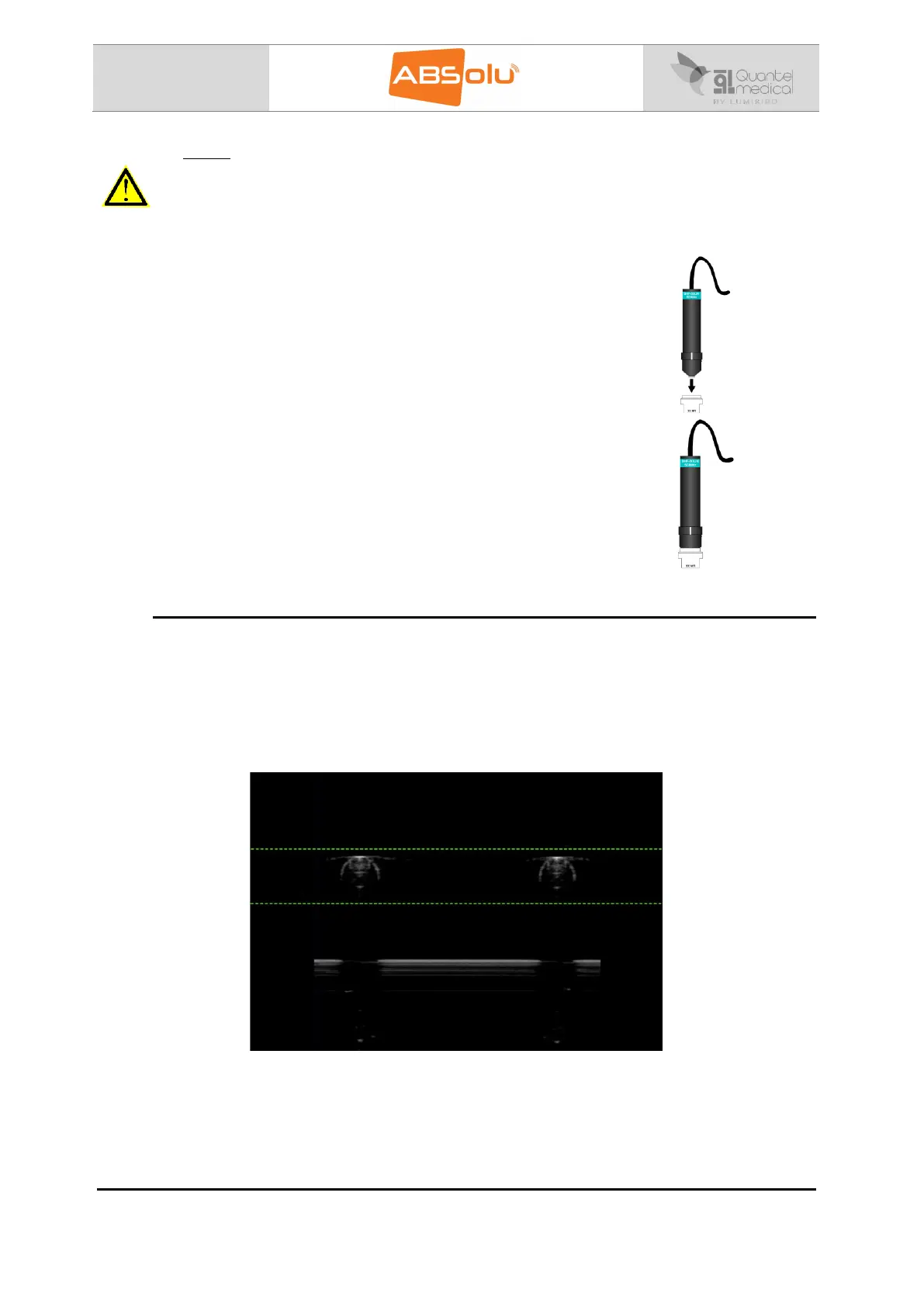

Place the removable window on the probe.
Fill up the calibration tool with demineralized water.
Position the probe on the calibration tool.
The probe is now ready to be checked: perform the checking
procedure as described in the following section.
Note:
- Do not completely immerse the probe: only immerse
up to 1.5 cm from the acoustic window;
- If scleral shell is used, immerse up to 4 cm from the
acoustic window.
10.3.3. Calibration procedure
1. Switch on the unit.
2. Select “Lin 50”, then select “Patient” and “New Session” icon.
3. Press the footswitch to activate the probe’s motion: the image that follows is now
displayed on the screen:
4. Adjust the gain to get the best image quality (clear and precise).
