Lumibird Quantel ABSOLU - Checking B20-5 A Probe Ring Images

Service manual
Service Manual – 29 / 63
XE_ABS_MT_AN_200224

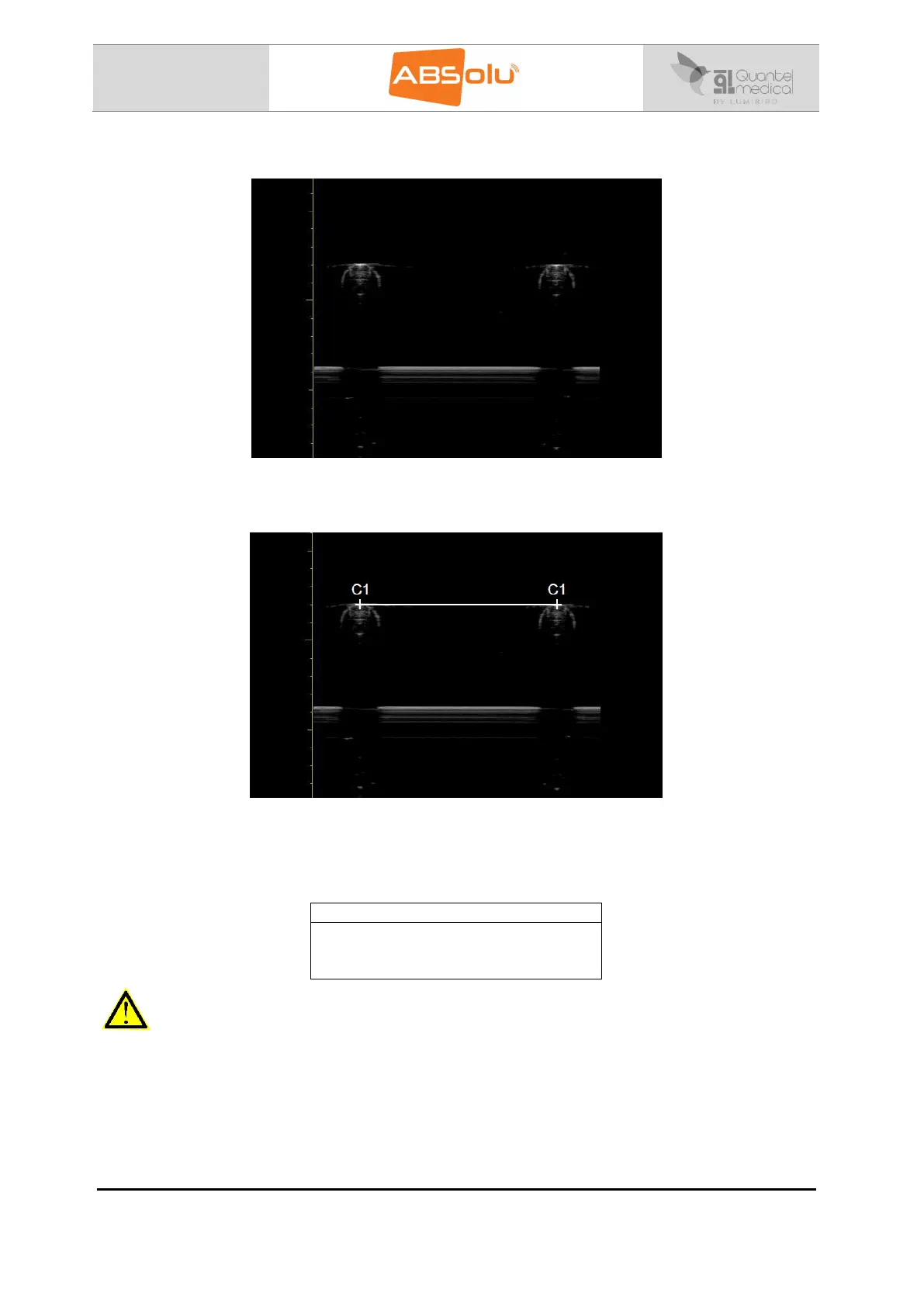

5. Press the footswitch to freeze the image:
6. Place calipers as follows:
C1: Measure of the distance between the calibration tool pins.
Check the C1 measurement result (measure of the distance between the calibration
tool pins). This result should correspond to the D value (with its tolerance) written on
the label slicked on the calibration tool border.
LIN 50
D= 11mm (± 0,06mm)
i.e. 10,94mm < D < 11,06mm
WARNING
In case the measurement result is out of range: the probe can be used for diagnosis only BUT
NOT for sizing. Contact your local distributor or the QUANTEL MEDICAL Service Department.
