Service manual

Service Manual – 31 / 63

XE_ABS_MT_AN_200224

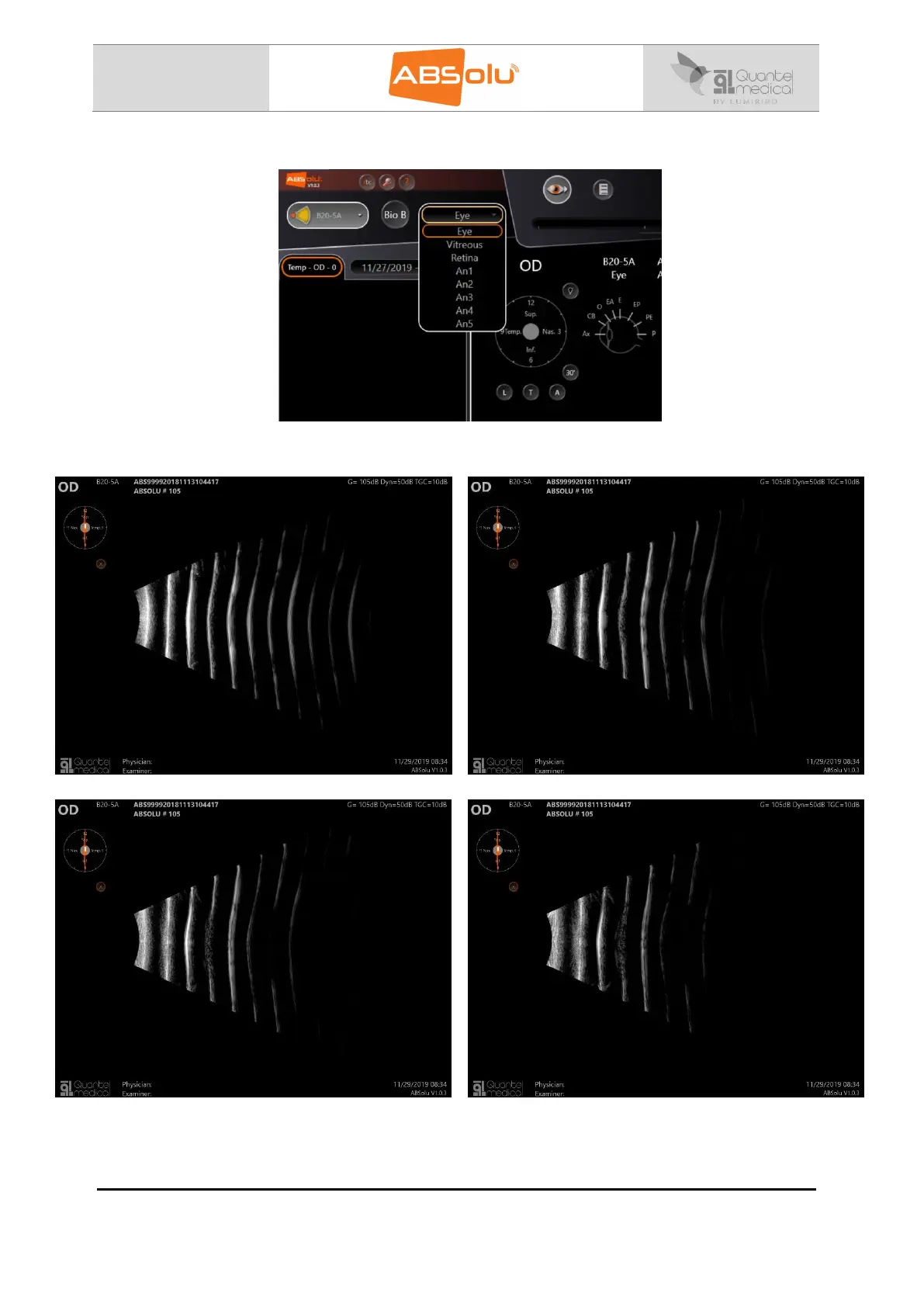

3. Start an exam and check all the different rings in the scroll-down menu:

4. The images have to be similar to the following:

Ring 1

Ring 2

Ring 3

Ring 4
