Service manual

Service Manual – 50 / 63

XE_ABS_MT_AN_200224

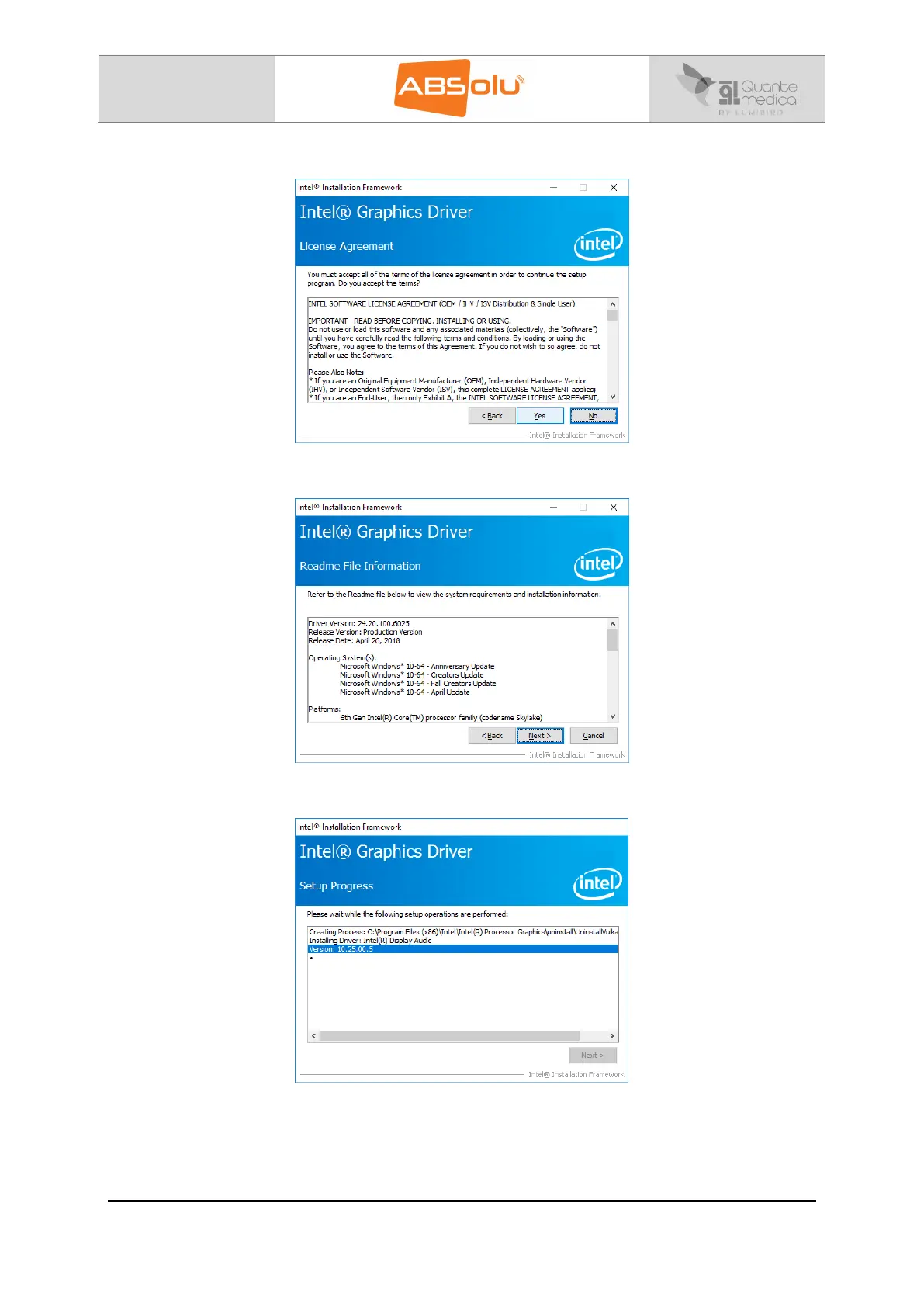

5. The following window is open, click on “Yes”:

6. The following window is open, click on “Next”:

7. The following window is open, wait that the “Next” is available:
