User data sets
When the application data set has been adapted to the specific applica-
tion, this new data set can be stored as a custom setting in a user data
set.
In the inverter module four user data sets can be managed (See 4.1).
The user data sets can be selected and activated via K
EYPAD, DRIVE-
M
ANAGER, bus access or terminals.
Terminal
1
Terminal
2
User data set/Custom data set
00
10
01
11

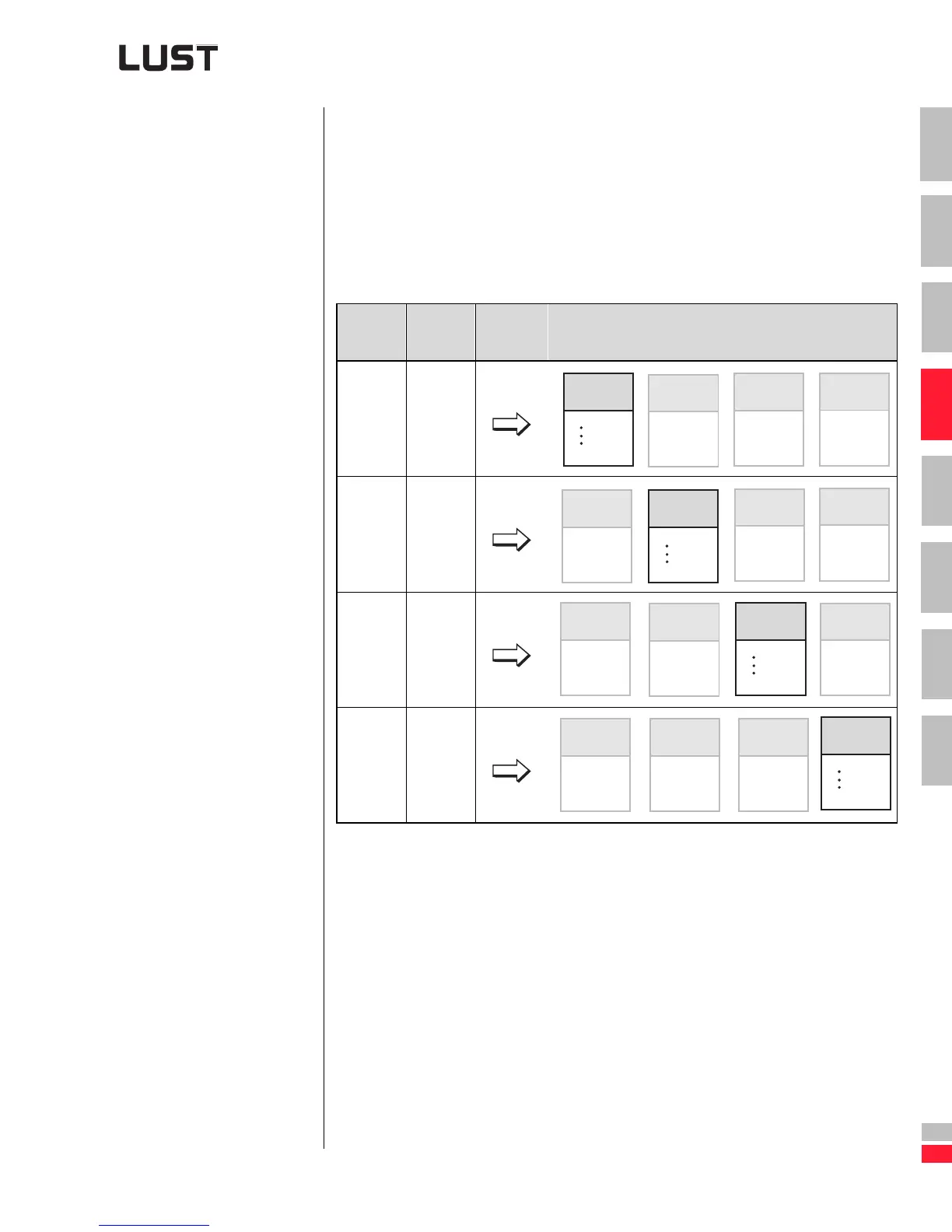

Table 4.1 Example of selection of user data sets via terminals
User data
set 1
001 MODE
999 xyz
User data
set 2
001 MODE
999 xyz
User data
set 3
001 MODE
999 xyz
User data
set 4
001 MODE
999 xyz
