4 Software functions
4.3.1 Traction and
lifting drive
Loading of application data set 1 into the RAM causes the inverter mod-
ule automatically to adopt the configuration of the software functions as
well as all inputs and outputs for the “traction and lifting drive” application
(see Figure 4.13).
~
~
=
CPU
M
3~
PTC
n1
n2
m2
m2
m2
m2
(9)
(5.5)
(5.4)
(5.3)
(5.2)
(5.1)
(1)
(2)
(3)
(4)
(6)
(7)
(8)
Mains
3
(5)
(9)
(9)
(1) Braking resistor
(2) Inverter module
(3) IEC standard motor
(4) Gearing
(5) Application
(5.1) Conveyor belt
(5.2) Rack drive
(5.3) Spindle drive
(5.4) Trolley drive
(5.5) Lifting drive
(6) Thermistor
(7) Motor holding brake
(8) Encoder
(9) Safety limit switch

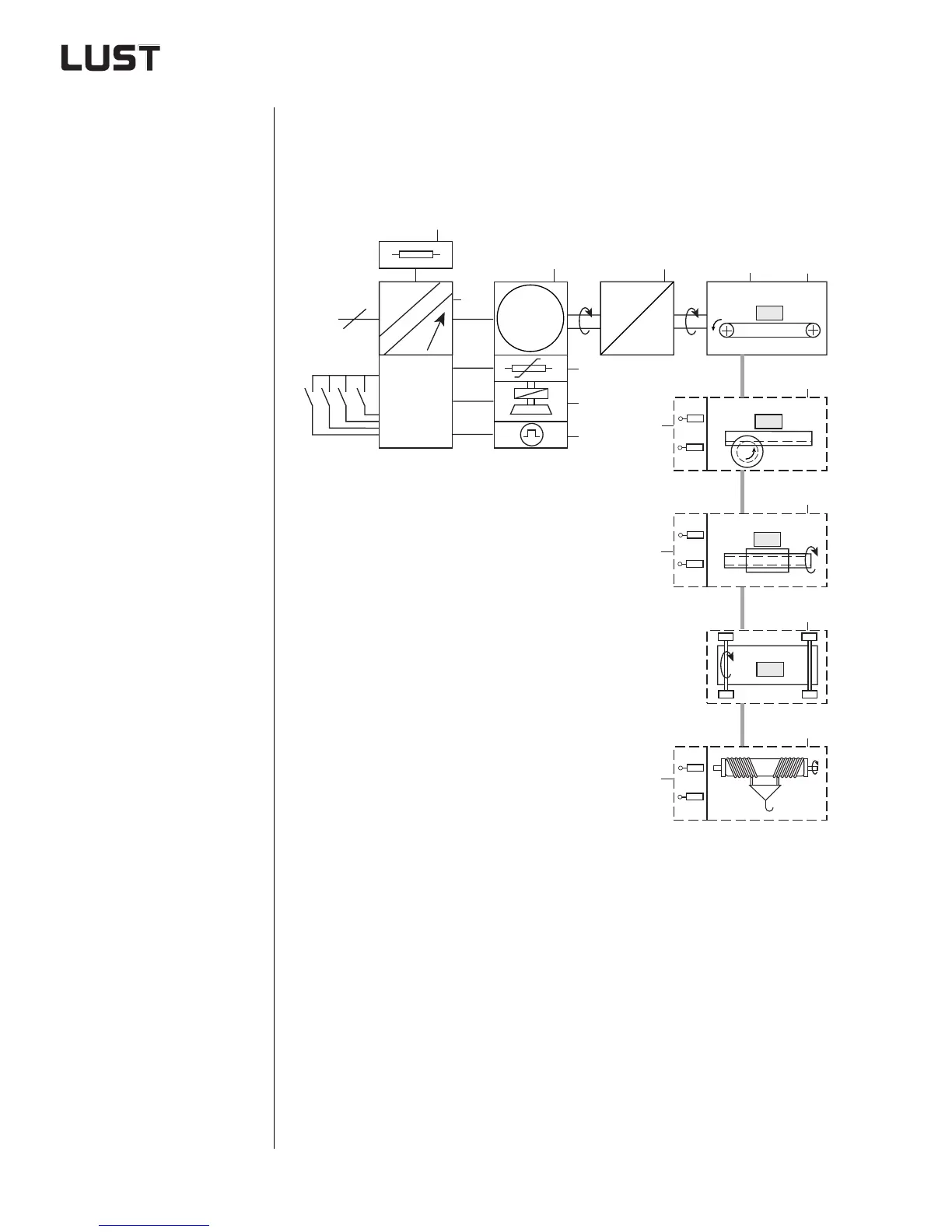

Figure 4.13 Drive solution: “traction and lifting drive”
