Lust CDA3000 - Communication and User Modules; Principle of Function

5-2
Engineering Guide CDA3000
5 Communication and user modules
5.1 Principle of
function
Communication and user modules expand the functionality of the
CDA3000 drive system. On the base module there are two slots, into
each of which one expansion module can be plugged.
Characteristics:
• Usability of the modules on all inverter
sizes
• Simple retrofitting of expansion module by the user
• On inverter modules up to 15kW side mounting, on modules above
22kW on the front of the device
• With side mounting the base unit is 25 mm wider
Communication module
e.g. CANLust
CANopen
PROFIBUS-DP
Control terminal expansion
e.g. eight additional inputs and four addi-
tional outputs

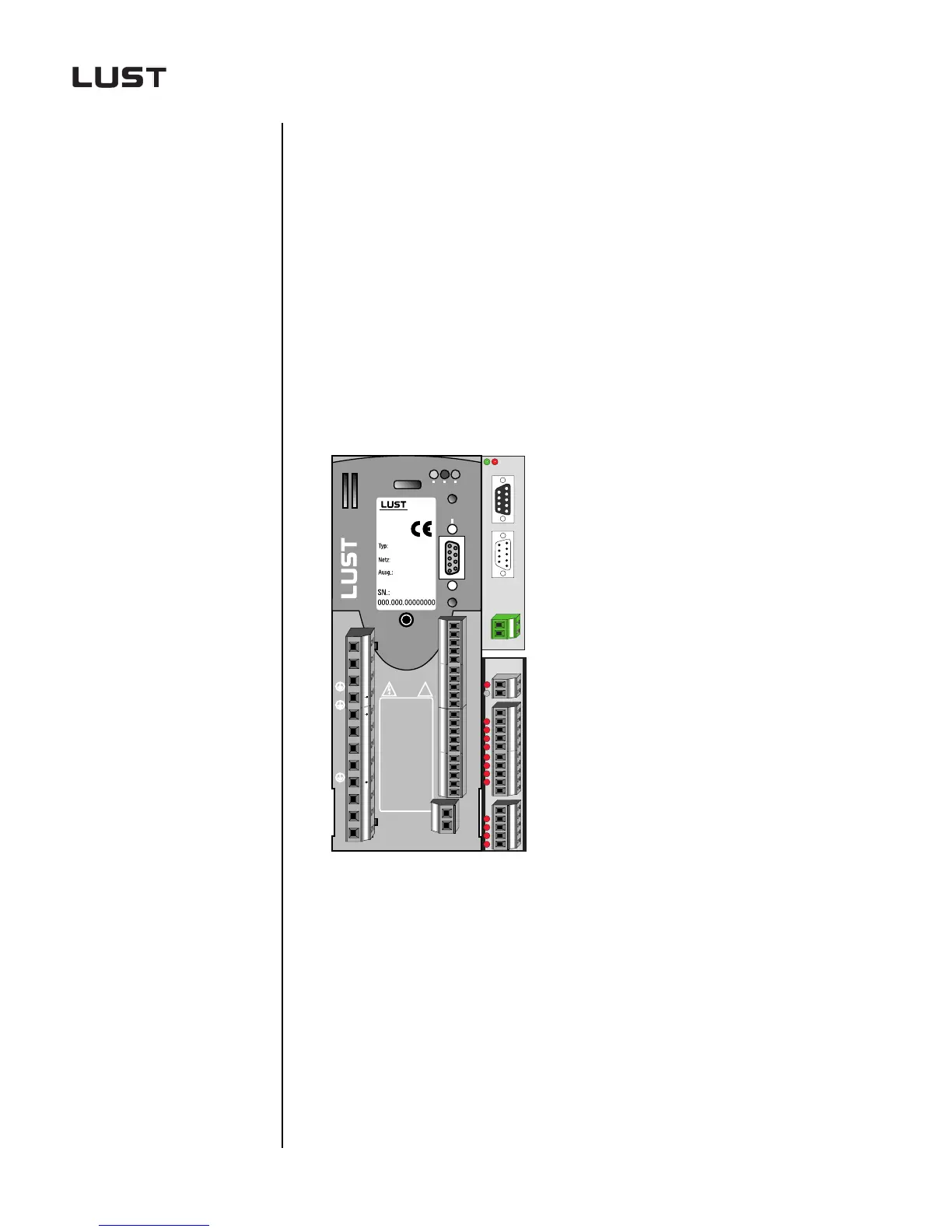

Figure 5.1 Inverter module with one control terminal expansion module
and one communication module
12
34
5
67 8 910
11 12
1
2
16
17 18
19 20
X5
H1 H2 H3
X4
X2
X1
X3
ANTRIEBSTECHNIK
D-35633 Lahnau
L3
U
V
W
RB+
RB
L-
L1
L2
12345
16 17 18 19
20
11 12
13 14
15
678910
L1
L2
L3 L-
V
U
RB RB+
W
ACHTUNG
Kondensatorent-
ladezeit >3 Min.
Betriebsanleitung
beachten!
WARNING
capacitor disscharge
time >3 minutes.
Pay attention to the
operation manual!
ATTENTION
temps de decharge
du condensteur
>3 min. observer le
mode dèmploi!
!
