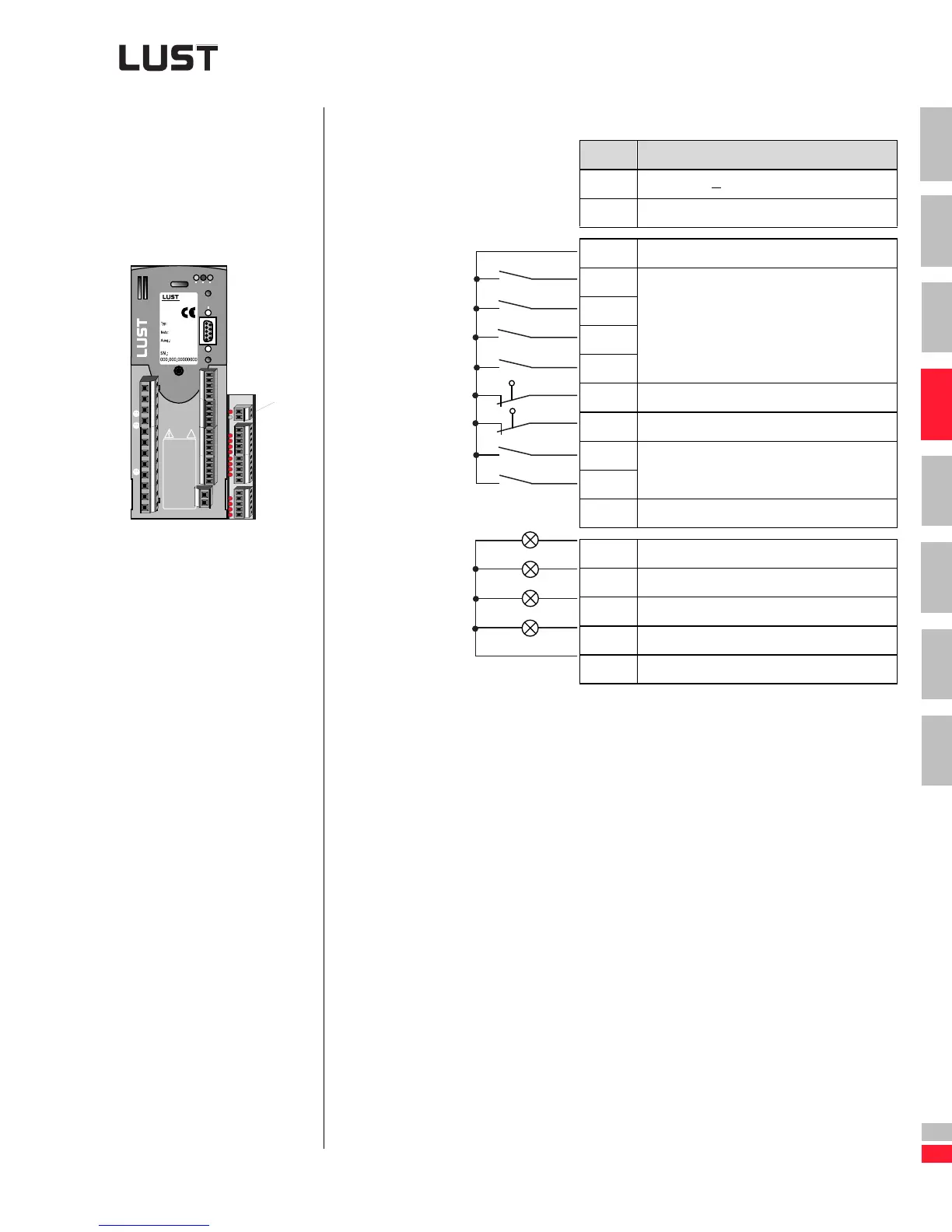

Control terminals of user module UM-8I4O
Figure 4.27 Assignment of control terminal expansion with ASTER=DRV_5
34567 89101112
12
16 17 18 19 20
X15
H1 H2 H3
X4
X2
X1
X3
ANTRIEBSTECHNIK
D-35633 Lahnau
L3
U
V
W
RB+
RB
L-
L1
L2
12345 161718192011 12 13 14 15678910
ACHTUNG
Kondensatorent-
ladezeit >3 Min.
Betriebsanleitung
beachten!
WARNING
capacitor disscharge
time >3 minutes.
Pay attention to the
operation manual!
ATTENTION
temps de decharge
du condensteur
>3 min. observer le
mode dèmploi!
!
X15 Function
1 24 V supply +20%, 0.6 A
2 Digital ground
21 Auxiliary voltage 24 V
22
Selection of table sets for fixed
frequencies
23
24
25
26 Limit switch right
27 Limit switch left
28
User data set switchover
29
30 Digital ground
31 Warning “Inverter module overloaded”
32 Warning “Motor overloaded”
33
Warning “80% of I
N
exceeded”
34
Warning “Ambient temperature too high”
35 Digital ground
S8
H5
H4
H3
H2
S6
S5
S7
S3
S4
S2
S1
