MAINTENANCE PROCEDURES
mmo2013-004-020_a

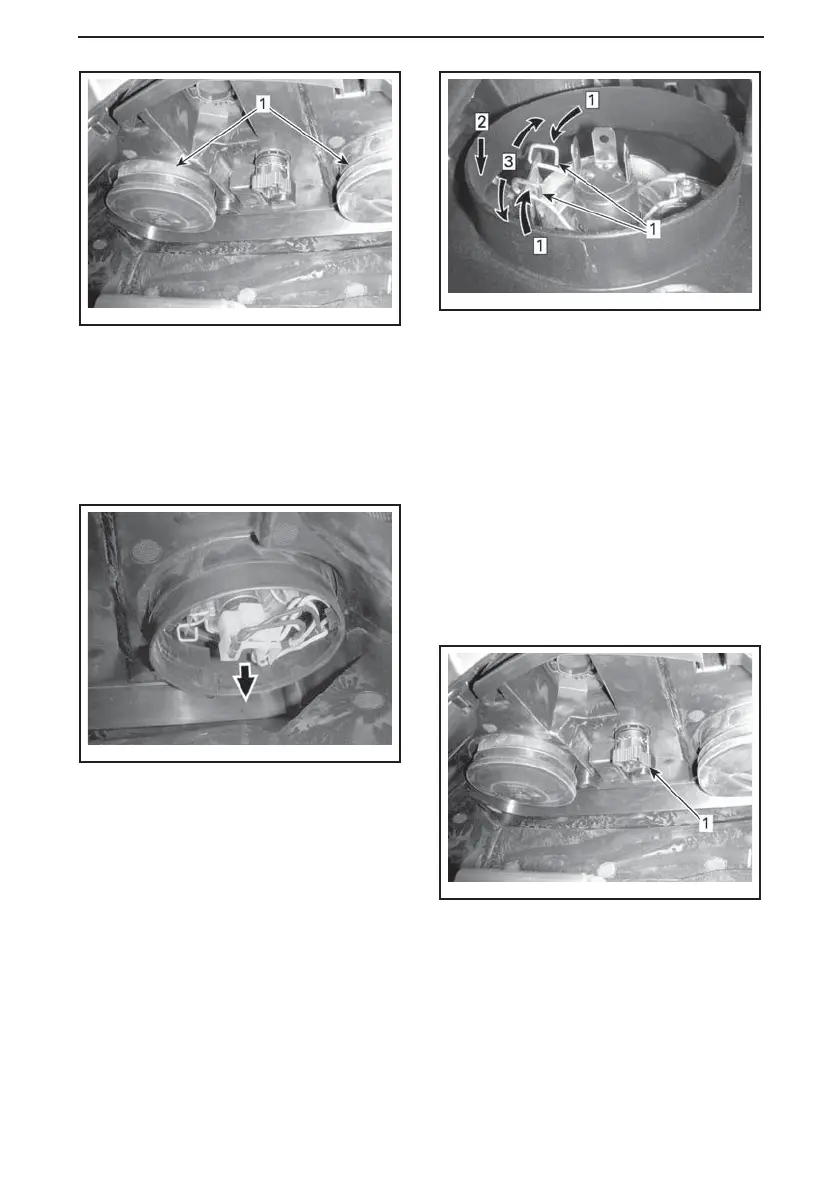

1. Ru bber boots
NOTE: Make sure to properly reinstall
both rubber boots to ensure that no hu-
midity gets inside the headlamp. Hu-
midity can create fog inside the head-
lamp.
3. Disconnect electrical connector.
mmo2013-004-035_a
ELECTRICAL CONNECTOR
NOTE: M ake sure to properly recon-
nect the electrical connector.
4. Press and pull both sides of the re-
tainingclipatthesametimetor
e-
lease it from bulb support.
mmo2013-004-036_c
Step 1: Push both sides
Step 2: Push down to release
Step 3: Release both sides
1. Retaining clip
5. Pull bulb and replace. Properly rein-
stall parts.
Headlights Beam Aiming
Open the front storage compartment.
Turn knob to adjust beam height.
Turn knob clockwise to lower the beam
height.
Turn knob counterclockwise to raise
the beam height.
mmo2013-004-020_b
TYPICAL
1. K nob
Taillight
Led taillight leds cannot be replaced.
If failed change taillight assy. F as ten
new taillight by screws.
