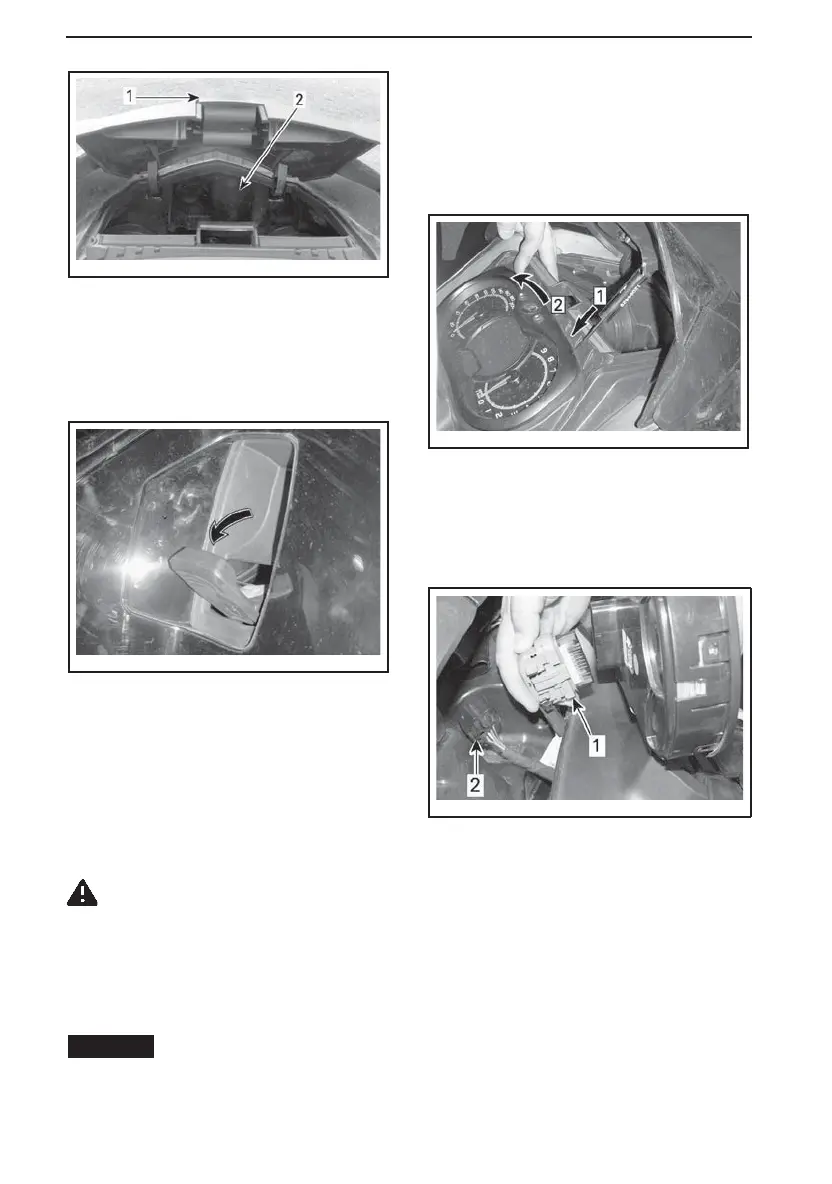

CONTROLS, INSTRUMENTS AND EQUIPMENT
mmo2013-004-017_a
1. Tab
2. Storage compartment
15) Shift Lever
Use this lever to shift in forward or re-
verse.
mmo2009-005-016_a
PULL TO ENGA GE REVERSE GEAR
Refer to
OPERATING IN REVERSE
in
BASIC PROCEDUR ES
for details.
16) Front and Rear
Bumpers
To be used whenever snowmobile re-
quires manual lifting.
CAUTION Use proper lifting
techniques, notably using your legs
force. Do not attempt to lift the ei
-
ther end of the vehicle if it is above
your limits. Use appropriate lifting
device or have assistance to
share
lifting stress if possible.
NOTICE
Do not use skis to pull or
lift snowmobile.
17) Upper Body Module
(Hood)
Upper Body Module Removal
1. Remove the gauge.
mbl2012-008-001_a
Step 1: Unlock
Step 2: Tilt
2. Disconnect the headlights connec-
tor.
3. Disconnect the gauge connector.
fmo2014-002-032_a
1. G au ge connector
2. H eadlights connector
4. Remove LH and RH side panels.
5. Remove the drive belt guard.
E-tec Mod els
6. Disconnect the air intake connector
tube.
