Lynx BRP REX2 Adventure LX 600 ACE User Manual

CONTROLS, INSTRUMENTS AND EQUIPMENT

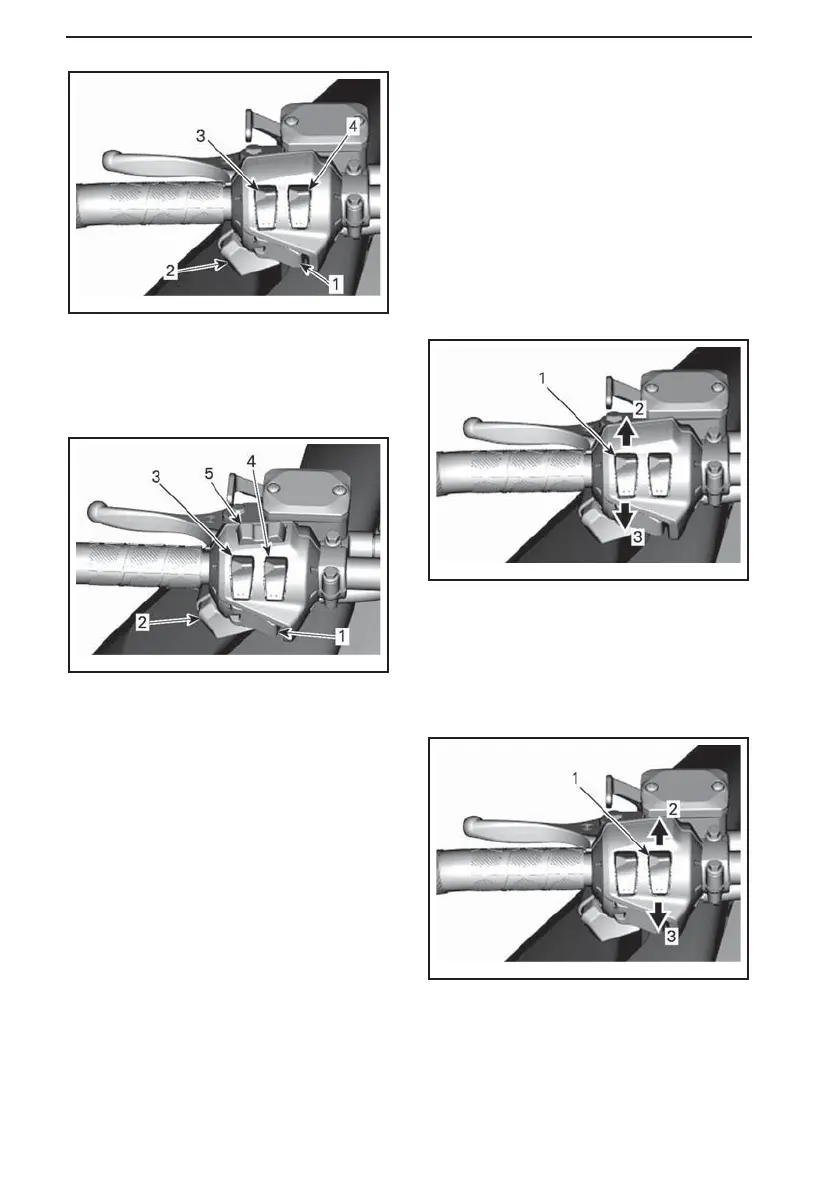

mmo2014-004-002_l
1. S tart button
2. H eadlights dimmer switch
3. H eated grips
4. Heated throttle lever
Tourin g Kit Models
mmo2014-004-001_c
1. S tart/Electronic Re verse button
2. H eadlights dimmer switch
3. H eated grips
4. Heated throttle lever
5. Mode/set button
Start Button
Press to start engine. Refer to
ENGINE
STARTING PROCEDURE
in the OPER-
ATING INSTRUCTIONS
subsection.
Headlights Dimmer Switch
Press to select HI or LOW beam.
Lights are automatically ON when the
engine is running.
Heated Grips and Throttle Lever
Switch
E- TEC
NOTE: Under 1900 RPM, heated grips
or throttle lever will be limited at 50%.
ACE
NOTE: Heated grips or throttle lever
are enabled above 1900 engine RPM.
All Models
Depress switch as required to select
heating intensity to keep your hands at
a comfortable temperature.
Heated Grips Switch
E- TEC and ACE Models
mmo2014-004-002_a
TYPICAL
1. Heated grip switch
2. Increase heat
3. Decrease heat
Heated Throttle Lever Switch
E- TEC and ACE Models
mmo2014-004-002_b
TYPICAL
1. Heated throttle lever switch
2. Increase heat
3. Decrease heat
44
