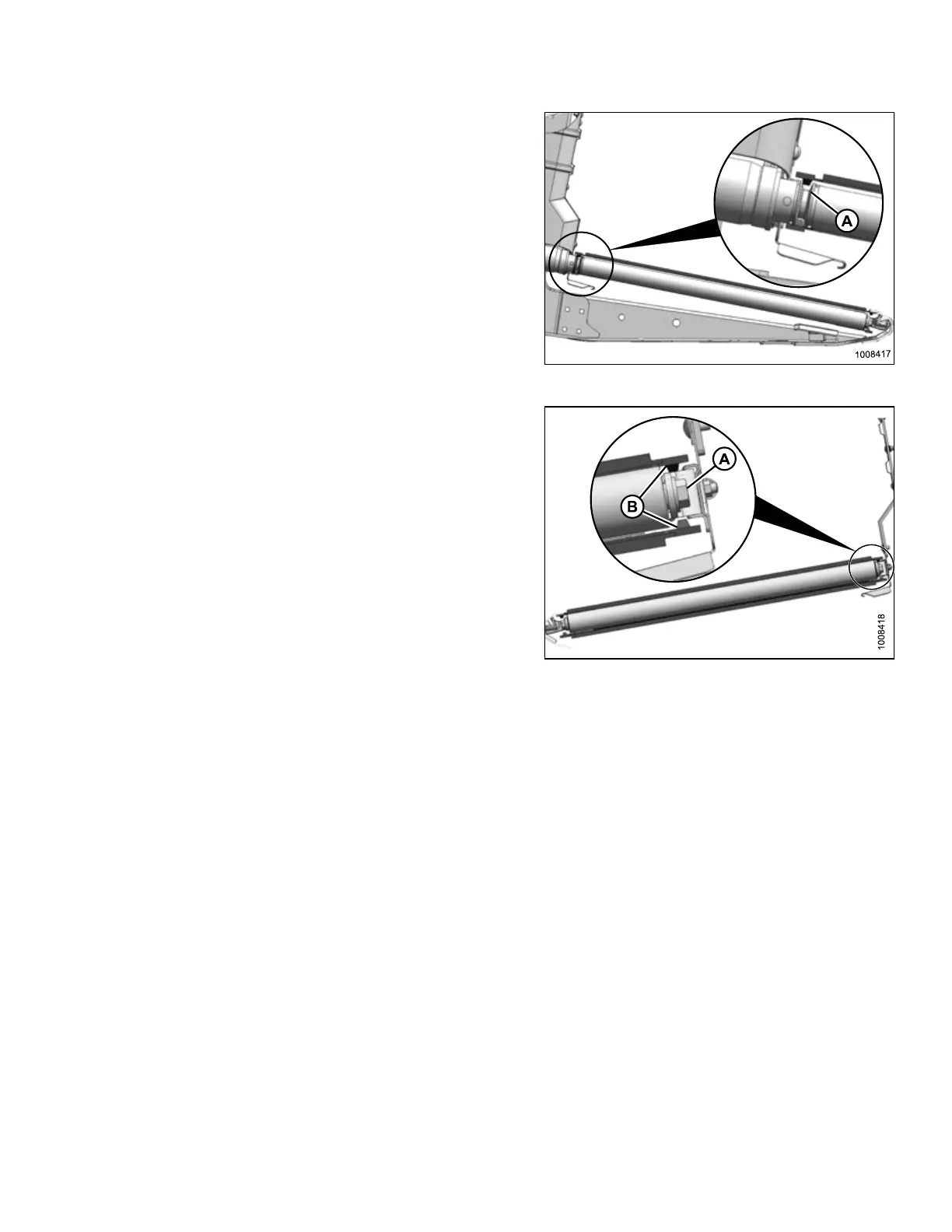

Figure 5.35: Drive Roller
3. Check that draper guide (rubber track on underside of
draper) is properly engaged in groove (A) of drive roller.
Figure 5.36: Idler Roller – Typical Both Ends
of Roller
4. Check that idler roller (A) is between guides (B).
