HEADER OPERATION – R SERIES
Form 169017 105 Issue – June 2008

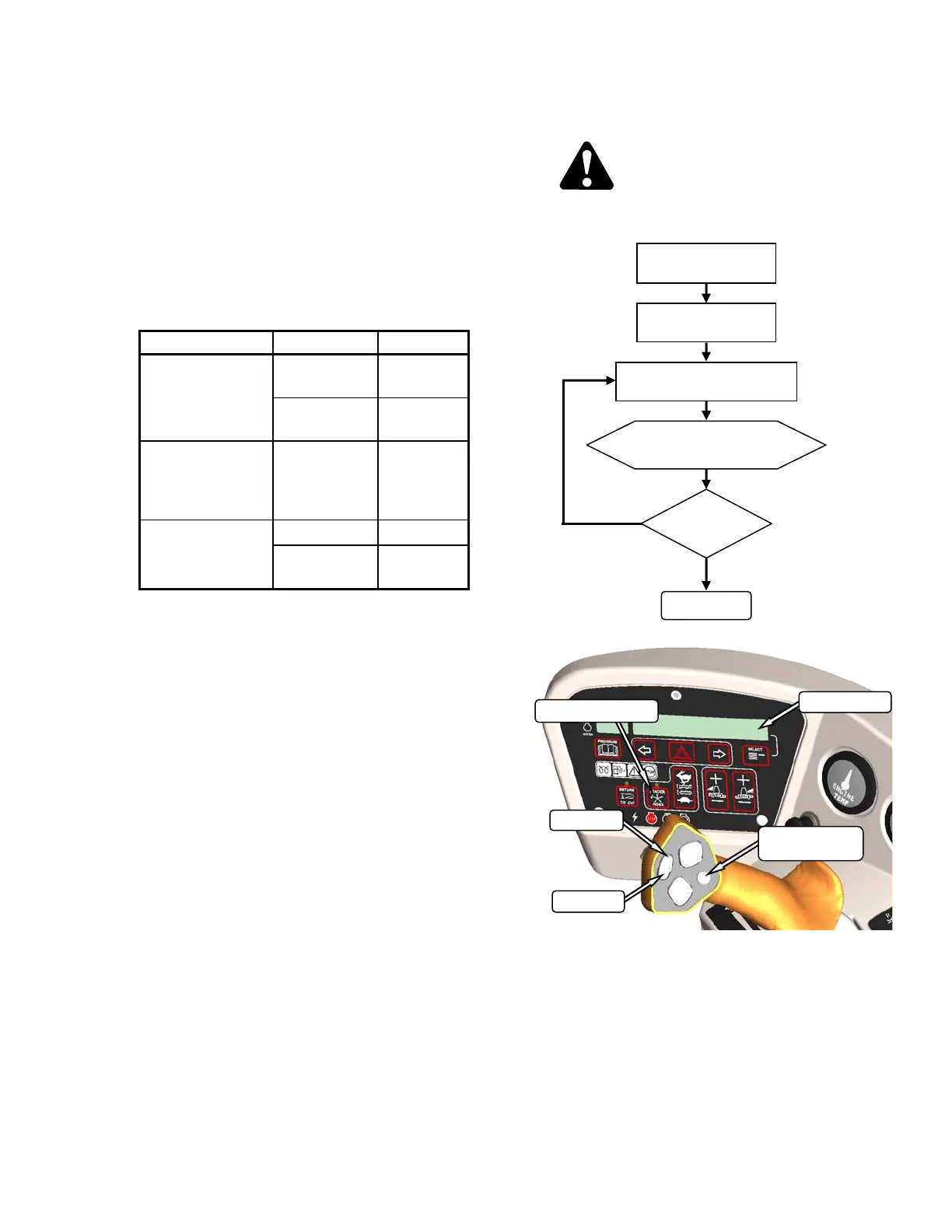

6.7.3 Disc Speed
The header is allocated a code that the WCM
reads when the header is first attached to the
tractor, and the disc speed set-point
automatically becomes the minimum disc speed
for the header. The operator can then program
the desired speed from the following table on the
CDM to be stored in the WCM memory so that if
the header is detached and then re-attached to
the tractor, the disc will operate at the original
set-point.
CROP CONDITION DISC RPM *
Alfalfa
Heavy
2300-
2500
Light
1800-
2000
Sudan,
Sorghum,
Haygrazer,
Timothy
Tall &
Stemmy 2300-
2500
Short Grass
Dense 2500
Thin
2000-
2200
* Suggested Overload Setting – 1300 rpm.
Display and set the desired disc speed as
follows:
CAUTION
Check to be sure all bystanders have cleared
the area.
XXX0 = RPM
ENGAGE HEADER
HEADER INDEX
SWITCH - OFF
ON GSL PRESS FAST OR
SLOW
DISPLAY SHOWS
XXX0 DISC RPM
DONE
SPEED
O.K.?
NO
YES
DISPLAY
SELECTOR
DISPLAY
HEADER INDEX
FAST
SLOW
