6.5.5 Knife Speed
The ideal cutting speed of the knife should be
such that a clean cut is achieved. Crop types
and conditions usually influence the knife and
forward speeds.
The tractor WCM reads a code from the header
that determines the knife speed range and the
minimum speed when the header is first
attached to the tractor. The desired speed can
be programmed on the CDM and is stored in the
WCM memory so that if the header is detached
and then re-attached to the tractor, the knife will
operate at the original set-point.
If no header code is detected, the CDM displays
NO HEADER and the knife speed reverts to a
range from 0-1400 strokes per minute and the
operator can then pre-set the speed.
NOTE
The knife speed cannot be programmed
outside the range specified for each
header.
HEADER
DESCRIPTION
KNIFE SPEED *
(Strokes Per Minute [SPM])
TYPE SIZE MINIMUM MAXIMUM
Draper DK 15 1500 1900
Draper DK
20 &
25
1400 1700
Draper DK 35
1200
1500
Draper DK 30 1600
Draper DK 40 1100 1400
Draper SK
20 &
25
1200
1500
Draper SK 30 1450
Draper SK 35 1100 1400
Draper SK 40 1050 1300
Grass
Seed
Header
All 1400 1950
* Suggested Overload Setting – 75% of Knife
Speed.

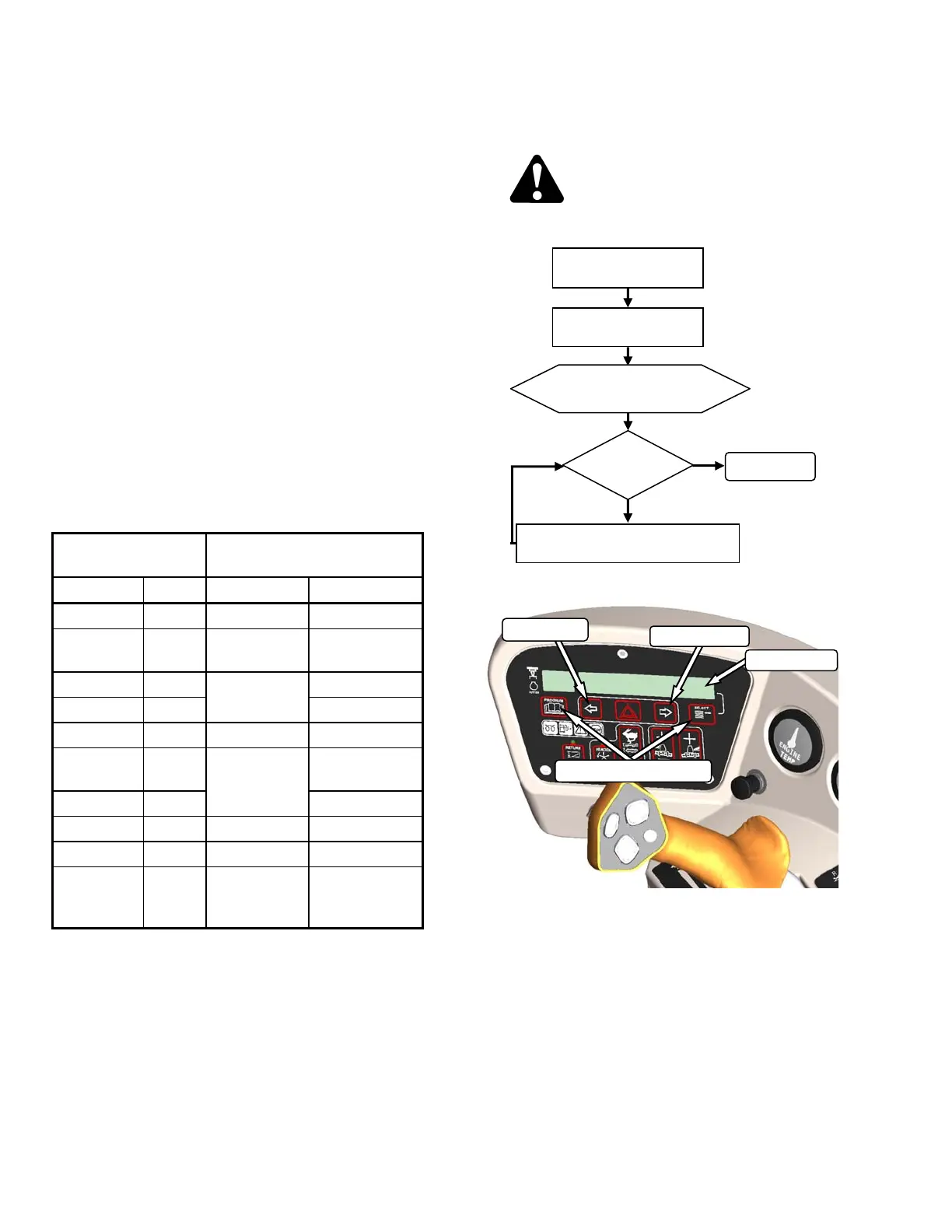

Display and set knife speed on-the-go as
follows:
CAUTION
Check to be sure all bystanders have cleared
the area.
#### = STROKES
PER MIN
HEADER ENGAGED
PRESS
PROGRAM/SELECT
DISPLAY SHOWS
#### KNIFE SPM
DONE
SPEED
O.K.?
NO
YES
ON CDM PRESS
LEFT ARROW o
r
RIGHT ARROW
DISPLAY
SLOWER
FASTER
PROGRAM/SELECT
