MAINTENANCE/SERVICE
Form 169017 111 Issue – June 2008
7.6 MAINTENANCE PLATFORMS
Swing away platform/stair units are provided on
both sides of the windrower tractor for access to
the operator’s station and engine bay
maintenance.

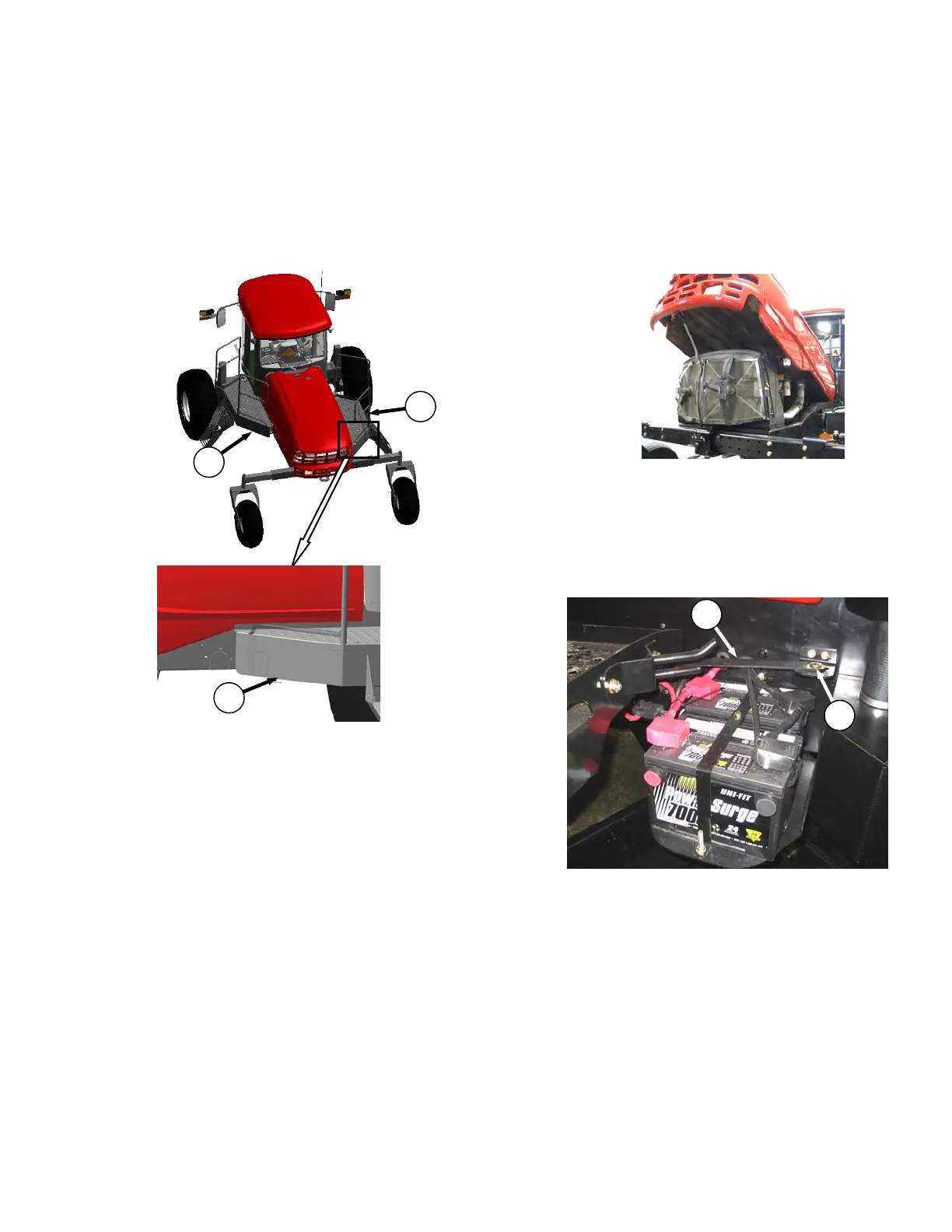

7.6.1 Opening/Closing Platforms
a. Push latch (A) down and pull platform (B) toward
walking beam until it stops and latch re-engages
in open position.
b. To move platform back to closed position,
release latch (A) and move platform forward until
it stops and latch re-engages.
7.6.2 Opening/Closing Platform for
Major Servicing
To improve access to the hydraulics plumbing
and battery, the platforms can be swung away
from the tractor. Right side cab forward
platform shown.
a. Open platform as follows:
1. Open engine compartment hood to lowest
position.
IMPORTANT
Failure to open hood will result in damage
to the hood when the platform is
repositioned.
2. Remove nut and bolt (C) and swing link (D)
clear of battery or valve block.
3. Unlock latch (A) and move platform (B)
toward open position.
(continued next page)
B
B
A
D
C
