OPERATOR’S STATION
Form # 169017 26 Issue – June 2008
5.15 WINDROWER CONTROLS

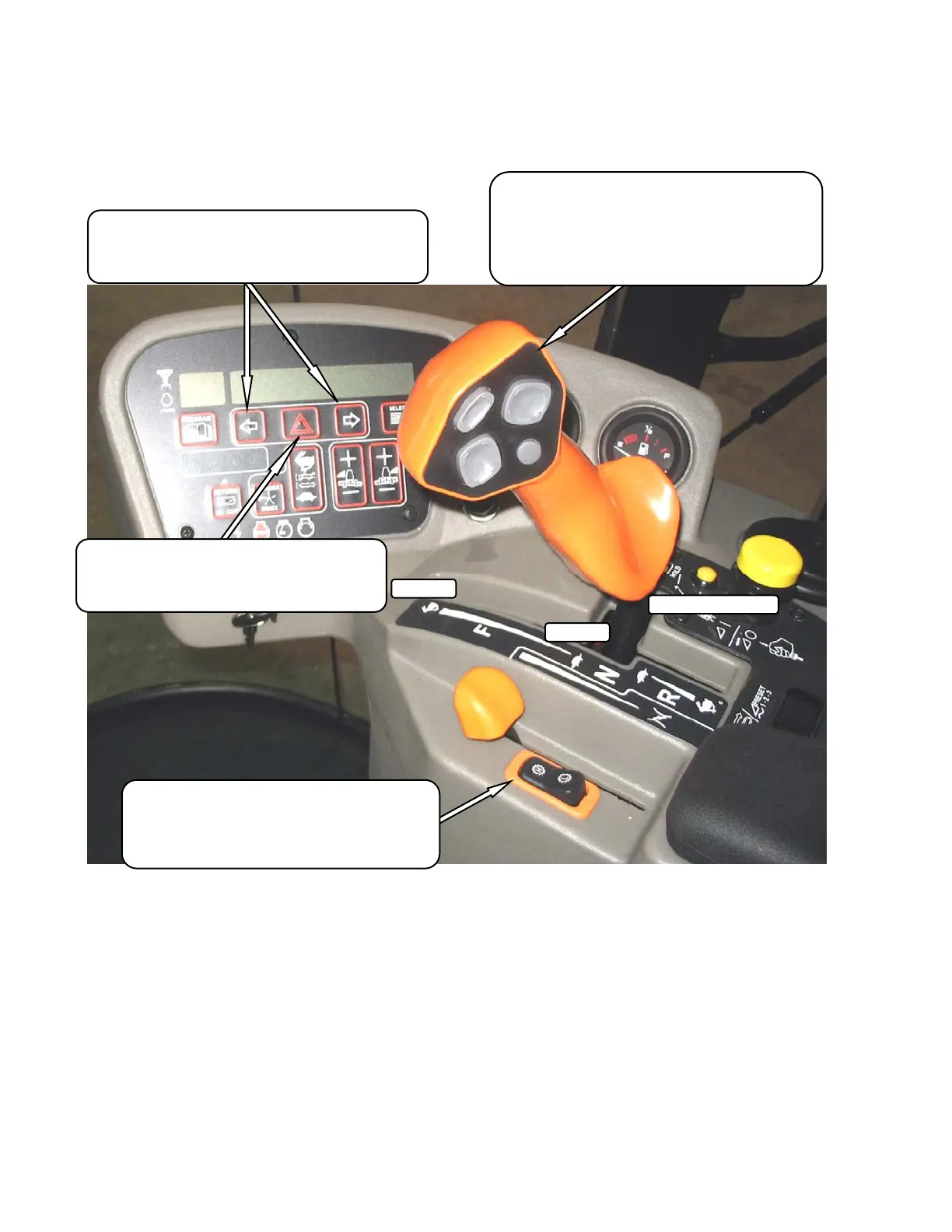

HAZARD WARNING LIGHTS
Activates Signals On Windrower Tractor and Header
Any Seat Position
Momentary Switch On Monitor
FAST
SLOW
GROUND SPEED LEVER (GSL)
Controls Speed and Direction of Movement
F – Forward
N – Neutral
N-DETENT – Engages Neutral Interlock and Applies
Park Brake When Steering Locked In Center
R - Reverse
GROUND SPEED RANGE SWITCH
Shifts Transmission Speed Range
H – 0-23 mph (37 km/h). ENGINE FORWARD ONLY.
M – 0-16 mph (25.7 km/h) M200 ONLY
L – 0-11 mph (17.7 km/h)
N-DETENT
TURN SIGNALS
Activates Turn Signals On Windrower Tractor and Header
Engine Forward Mode Only
Momentary Switches On Monitor
